Marlin 300

30' WALKAROUND CABIN

In 1988, the Marlin 280 (today’s Marlin 300) was the first Grady with the exclusive SeaV^2® hull, offering amazing performance and true offshore saltwater fishing boat capability. Since that time, through customer input and attention to detail, Grady-White has refined every feature of this signature, much loved 30-foot walkaround cabin boat.

Gallery

Disclaimer: Our models undergo continuous enhancements, therefore some features and options seen in the gallery may have changed since these photos were taken. Please refer to the Detailed Spec photos for the most updated information.

Main Specifications

Beam Amidships

10'7" (3.23 m)

Center Line Length w/o Engines

30'6" (9.30 m)

Bridge Clearance

9'9" (2.97 m)

Cockpit Depth

29" (0.74 m)

Hull Draft

23" (0.58 m)

Transom Deadrise

19.5 degrees (SeaV^2® progression)

Maximum HP

700 (522 kW)

Fuel Capacity - Standard

282 gal. (1067 l)

Weight w/o Engines

8221 lb. (3729 kg)

Marlin 300

Standard Features

Images are updated often, but may not always exactly represent the current model

Select camera icons where available to view feature photos

Denotes feature as trademarked, exclusive, patented, or patent pending

Safety

2 automatic bilge pumps (total 2600 GPH) (9842 LPH)

Basic flotation

Bow rail - 316 grade stainless steel

Captain Grady - digital boat systems and operations guide for iPad and iPhone

Cockpit toe rails

Companion grab rail

Composite stringer system & transom - water impervious

Nonskid fiberglass liner

Nonskid recessed walkaround

Self-bailing cockpit w/cockpit drains (4)

Stainless steel through-hull fittings

Cabin

Accessory outlet - 5V duplex USB port

Berth - aft double berth

Berth - forward vee berth

Carbon monoxide detector

Forward hatch - low profile acrylic hatch w/screen & shade

Galley - port side galley w/sink, light & Corian(R) cutting board

Head - enclosed head area w/sink, shower, lamp & VacuFlush® marine head w/freshwater supply, 10-gallon (38 l) holding tank, overboard discharge & deck pump out

Lighting - dome (2)

Lighting - reading (3)

Lockable door w/screen & companionway hatch

Microwave oven

Mirror

Refrigerator

Rod storage - aft berth

Rod storage racks (6)

Stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers w/LED lights - cabin (2), cockpit (2) & helm (2)

Storage - galley cabinet & counter

Storage - under berth compartments

Storage nets

Stove - electric glass top

Table - cherry

Teak & holly sole

Water heater - 6-gallon (22.7 l), 120V

Water tank - 32-gallon (121.1 l) freshwater

Windows - tinted frameless acrylic w/curtains (2)

Cockpit & Deck

100% hand laid SeaV² hull & deck

Accessory outlet - 12V

Accessory outlet - 5V duplex USB port

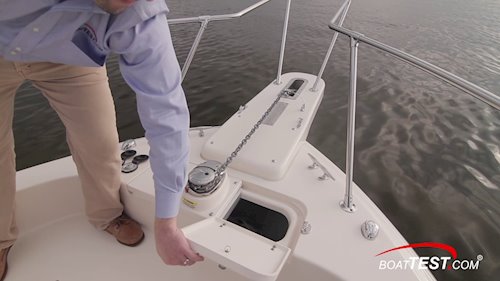

Anchor windlass w/remote switches at helm & windlass

Batteries (4)

Battery charger system

Battery select switch

Bow pulpit w/roller

Cleats

Cockpit bolsters

Cockpit freshwater shower (recessed)

Cockpit lights - blue LED

Compass

Deck hardware - 316 grade stainless steel through-bolted

Dockside power w/galvanic isolator

Drink holders - stainless steel (9)

Engine flush system w/hose attachment aft (one per engine)

Factory engine pre-rigging

Fighting chair reinforcement

Fish box - 290-qt. (274.4 l) aft insulated fish box w/light & ob drain

Flush mount electronics

Footrests - helm & companion (adjustable)

Freshwater level indicator

Fuel capacity - 282 gallons (141-gallon tank, 141-gallon tank) (1067 l)

Hardtop w/painted aluminum frame, radio box, storage nets, spreader lights, side mounted rod holders (4), outrigger plates & drop, front & side curtains (black or ivory)

Hydraulic trim tabs w/indicator & retractor

Integrated outboard mounting system w/swim platform & ladder

International lighting

Livewell - 32-gallon (121.1 l) port insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)

Rigging station behind helm chair w/freshwater sink, insulated bait box w/ob drain & lockable drawers

Rod holders (4)

Rod storage racks - horizontal (6)

Rubrail - high density PVC w/stainless steel insert

Seating - Deluxe II vertically and horizontally adjustable helm & companion chairs

Seating - fold away aft bench seat w/cushion

Seating - foredeck cushions

Seating - port livewell cushion

Seating - starboard tackle station cushion

Steering - hydraulic tilt w/power assist (n/a with Yamaha Helm Master control)

Steering wheel - 316 grade stainless steel

Stern eyes - heavy-duty 316 stainless steel

Storage - aft deck lift out box

Storage - forward anchor locker w/rode storage

Storage - lockable storage under helm & companion seats

Storage - under step compartment

Transducer mounting flats

Transom door - fiberglass

Washdown - freshwater

Washdown - pressurized raw water w/hose

Windshield - ventilated tempered glass windshield

Windshield wipers w/starboard washer

Optional Features

Options

Air conditioning - 8000 BTU in cabin

Bow thruster

CE certification package (European Conformity)

Cockpit shower w/hot water

Engine paint - Yamaha factory-painted engine(s), pearlescent white

Flat screen 19" LED-LCD TV w/DVD player & audio/visual inputs

Generator - 5kW diesel, 12-gallon (45.4 l) fuel capacity

Hardtop color - underside of fiberglass hardtop (requires matching gelcoat hull color option)

Helm Master® w/Set Point™ - Yamaha Helm Master® control system

Hull color - Celestial Blue, Coastal Fog Blue, Sand, Sea Glass or Seaport Blue gelcoat; Cape Gray or Harbor Blue paint

International AC electrical conversion - 220V 50Hz

Lighting - underwater blue LED (3)

Outrigger kit - 15-ft. (4.6 m) crank outriggers hardtop mounted

Outrigger kit - 15-ft. (4.6 m) radial hardtop mounted

Painted hardtop top mounted rod holders (6)

Rod storage - folding cabin rack (4)

Seating - companion bench seat

Seating - Command Elite horizontally and vertically adjustable contoured helm chair w/deluxe cushioning & flip-up bolster

Seating - Command Elite horizontally and vertically adjustable contoured helm and companion chairs w/deluxe cushioning & flip-up bolsters

CHOOSE AN ENGINE BELOW FOR DETAILED PERFORMANCE SPECS OR SELECT TWO ENGINE PACKAGES TO COMPARE

300 YAMAHA FOUR-STROKE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

350 YAMAHA FOUR-STROKE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

300 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

4.2L

Test Date:

9/22/2010

Prop Size*:

15 1/2 X 17 SWSII SDS

Weight as Tested:

11697 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

Optimum Cruise: 29.7 MPH @ 3800 RPM

RPM	MPH	GPH	MPG
1000	6.0	2.6	2.31
1500	7.9	4.1	1.94
2000	8.8	6.7	1.31
2500	9.7	10.0	0.97
3000	14.6	12.8	1.14
3500	26.4	18.0	1.47
3800	29.7	21.5	1.38
4000	31.5	23.9	1.32
4500	36.6	30.7	1.19
5000	42.0	40.4	1.04
5500	46.4	50.7	0.92
5800	49.5	52.3	0.95

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

4.2L

Test Date:

9/22/2010

Prop Size*:

15 1/2 X 17 SWSII SDS

Weight as Tested:

11697 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

Optimum Cruise: 29.7 MPH @ 3800 RPM

RPM	MPH	GPH	MPG
1000	6.0	2.6	2.31
1500	7.9	4.1	1.94
2000	8.8	6.7	1.31
2500	9.7	10.0	0.97
3000	14.6	12.8	1.14
3500	26.4	18.0	1.47
3800	29.7	21.5	1.38
4000	31.5	23.9	1.32
4500	36.6	30.7	1.19
5000	42.0	40.4	1.04
5500	46.4	50.7	0.92
5800	49.5	52.3	0.95

350 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

5.3L

Test Date:

4/3/2007

Prop Size*:

15 1/2" X 19 SWS XL SDS

Weight as Tested:

12507 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

Optimum Cruise: 31.5 MPH @ 3500 RPM

RPM	MPH	GPH	MPG
1000	6.2	2.7	2.28
1500	8.5	5.2	1.64
2000	9.6	9.5	1.01
2500	14.2	13.2	1.08
3000	22.9	16.9	1.36
3500	31.5	21.5	1.47
4000	37.1	28.8	1.29
4500	42.2	35.2	1.20
5000	46.2	45.9	1.01
5500	52.2	59.9	0.87
5900	56.8	67.6	0.84

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

5.3L

Test Date:

4/3/2007

Prop Size*:

15 1/2" X 19 SWS XL SDS

Weight as Tested:

12507 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

Optimum Cruise: 31.5 MPH @ 3500 RPM

RPM	MPH	GPH	MPG
1000	6.2	2.7	2.28
1500	8.5	5.2	1.64
2000	9.6	9.5	1.01
2500	14.2	13.2	1.08
3000	22.9	16.9	1.36
3500	31.5	21.5	1.47
4000	37.1	28.8	1.29
4500	42.2	35.2	1.20
5000	46.2	45.9	1.01
5500	52.2	59.9	0.87
5900	56.8	67.6	0.84

The following is a list of variables that can affect performance:

Wind, Current, Sea conditions, Speed, Engine Performance, Transducer, Trolling Time, Engine Trim, Bottom Paint, Trim Tabs, Curtains, Tops, Gear Placement, Prop Size / Condition / Type

This report should be used only as a general reference guide.

* Prop size, pitch and prop features listed in this performance report reflect the available props factory installed on new boats from Grady-White at this time.

Props cited in the report may be an updated version(s) of the prop(s) used at the time of the test.

300 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

4.2L

Test Date:

9/22/2010

Prop Size*:

15 1/2 X 17 SWSII SDS

Weight as Tested:

11697 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

Optimum Cruise: 29.7 MPH @ 3800 RPM

RPM	MPH	GPH	MPG
1000	6.0	2.6	2.31
1500	7.9	4.1	1.94
2000	8.8	6.7	1.31
2500	9.7	10.0	0.97
3000	14.6	12.8	1.14
3500	26.4	18.0	1.47
3800	29.7	21.5	1.38
4000	31.5	23.9	1.32
4500	36.6	30.7	1.19
5000	42.0	40.4	1.04
5500	46.4	50.7	0.92
5800	49.5	52.3	0.95

The following is a list of variables that can affect performance:

Wind, Current, Sea conditions, Speed, Engine Performance, Transducer, Trolling Time, Engine Trim, Bottom Paint, Trim Tabs, Curtains, Tops, Gear Placement, Prop Size / Condition / Type

This report should be used only as a general reference guide.

* Prop size, pitch and prop features listed in this performance report reflect the available props factory installed on new boats from Grady-White at this time.

Props cited in the report may be an updated version(s) of the prop(s) used at the time of the test.

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

4.2L

Test Date:

9/22/2010

Prop Size*:

15 1/2 X 17 SWSII SDS

Weight as Tested:

11697 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

Optimum Cruise: 29.7 MPH @ 3800 RPM

RPM	MPH	GPH	MPG
1000	6.0	2.6	2.31
1500	7.9	4.1	1.94
2000	8.8	6.7	1.31
2500	9.7	10.0	0.97
3000	14.6	12.8	1.14
3500	26.4	18.0	1.47
3800	29.7	21.5	1.38
4000	31.5	23.9	1.32
4500	36.6	30.7	1.19
5000	42.0	40.4	1.04
5500	46.4	50.7	0.92
5800	49.5	52.3	0.95

The following is a list of variables that can affect performance:

Wind, Current, Sea conditions, Speed, Engine Performance, Transducer, Trolling Time, Engine Trim, Bottom Paint, Trim Tabs, Curtains, Tops, Gear Placement, Prop Size / Condition / Type

This report should be used only as a general reference guide.

* Prop size, pitch and prop features listed in this performance report reflect the available props factory installed on new boats from Grady-White at this time.

Props cited in the report may be an updated version(s) of the prop(s) used at the time of the test.

350 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

5.3L

Test Date:

4/3/2007

Prop Size*:

15 1/2" X 19 SWS XL SDS

Weight as Tested:

12507 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

Optimum Cruise: 31.5 MPH @ 3500 RPM

RPM	MPH	GPH	MPG
1000	6.2	2.7	2.28
1500	8.5	5.2	1.64
2000	9.6	9.5	1.01
2500	14.2	13.2	1.08
3000	22.9	16.9	1.36
3500	31.5	21.5	1.47
4000	37.1	28.8	1.29
4500	42.2	35.2	1.20
5000	46.2	45.9	1.01
5500	52.2	59.9	0.87
5900	56.8	67.6	0.84

The following is a list of variables that can affect performance:

Wind, Current, Sea conditions, Speed, Engine Performance, Transducer, Trolling Time, Engine Trim, Bottom Paint, Trim Tabs, Curtains, Tops, Gear Placement, Prop Size / Condition / Type

This report should be used only as a general reference guide.

* Prop size, pitch and prop features listed in this performance report reflect the available props factory installed on new boats from Grady-White at this time.

Props cited in the report may be an updated version(s) of the prop(s) used at the time of the test.

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

5.3L

Test Date:

4/3/2007

Prop Size*:

15 1/2" X 19 SWS XL SDS

Weight as Tested:

12507 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

Optimum Cruise: 31.5 MPH @ 3500 RPM

RPM	MPH	GPH	MPG
1000	6.2	2.7	2.28
1500	8.5	5.2	1.64
2000	9.6	9.5	1.01
2500	14.2	13.2	1.08
3000	22.9	16.9	1.36
3500	31.5	21.5	1.47
4000	37.1	28.8	1.29
4500	42.2	35.2	1.20
5000	46.2	45.9	1.01
5500	52.2	59.9	0.87
5900	56.8	67.6	0.84

The following is a list of variables that can affect performance:

Wind, Current, Sea conditions, Speed, Engine Performance, Transducer, Trolling Time, Engine Trim, Bottom Paint, Trim Tabs, Curtains, Tops, Gear Placement, Prop Size / Condition / Type

This report should be used only as a general reference guide.

* Prop size, pitch and prop features listed in this performance report reflect the available props factory installed on new boats from Grady-White at this time.

Props cited in the report may be an updated version(s) of the prop(s) used at the time of the test.

Marlin 300 Customer Reviews

Videos

Industry Reviews

October 18, 2018 BD Outdoors.com

"Yamaha Helm Master—Do You Want It, Do You Need It?"

Download PDF

January 2015 Soundings

"Grady-White 280 Marlin"

Download

June 2007 Motorboating

"Grady-White 300"

Download

First Name

Last Name

Postal/Zip Code

Country

I have read the privacy policy and agree to being contacted about products, updates and promotions by our company and/or our dealers.

Main Specifications

Marlin 300

Standard Features

Optional Features

CHOOSE AN ENGINE BELOW FOR DETAILED PERFORMANCE SPECS OR SELECT TWO ENGINE PACKAGES TO COMPARE

300 YAMAHA FOUR-STROKE (TWIN)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

350 YAMAHA FOUR-STROKE (TWIN)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

COMPARE A DIFFERENT ENGINE PACKAGE

300 YAMAHA FOUR-STROKE (TWIN)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

350 YAMAHA FOUR-STROKE (TWIN)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

VIEW SPECS FOR A DIFFERENT ENGINE PACKAGE

300 YAMAHA FOUR-STROKE (TWIN)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

350 YAMAHA FOUR-STROKE (TWIN)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Marlin 300 Customer Reviews

Winter Sales Event Incentives Now Available!

Main Specifications

Marlin 300

Standard Features

Optional Features

CHOOSE AN ENGINE BELOW FOR DETAILED PERFORMANCE SPECS OR SELECT TWO ENGINE PACKAGES TO COMPARE

300 YAMAHA FOUR-STROKE (TWIN)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

350 YAMAHA FOUR-STROKE (TWIN)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

COMPARE A DIFFERENT ENGINE PACKAGE

300 YAMAHA FOUR-STROKE (TWIN)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

350 YAMAHA FOUR-STROKE (TWIN)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

VIEW SPECS FOR A DIFFERENT ENGINE PACKAGE

300 YAMAHA FOUR-STROKE (TWIN)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

350 YAMAHA FOUR-STROKE (TWIN)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Marlin 300 Customer Reviews
