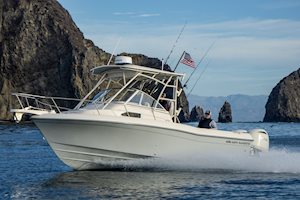

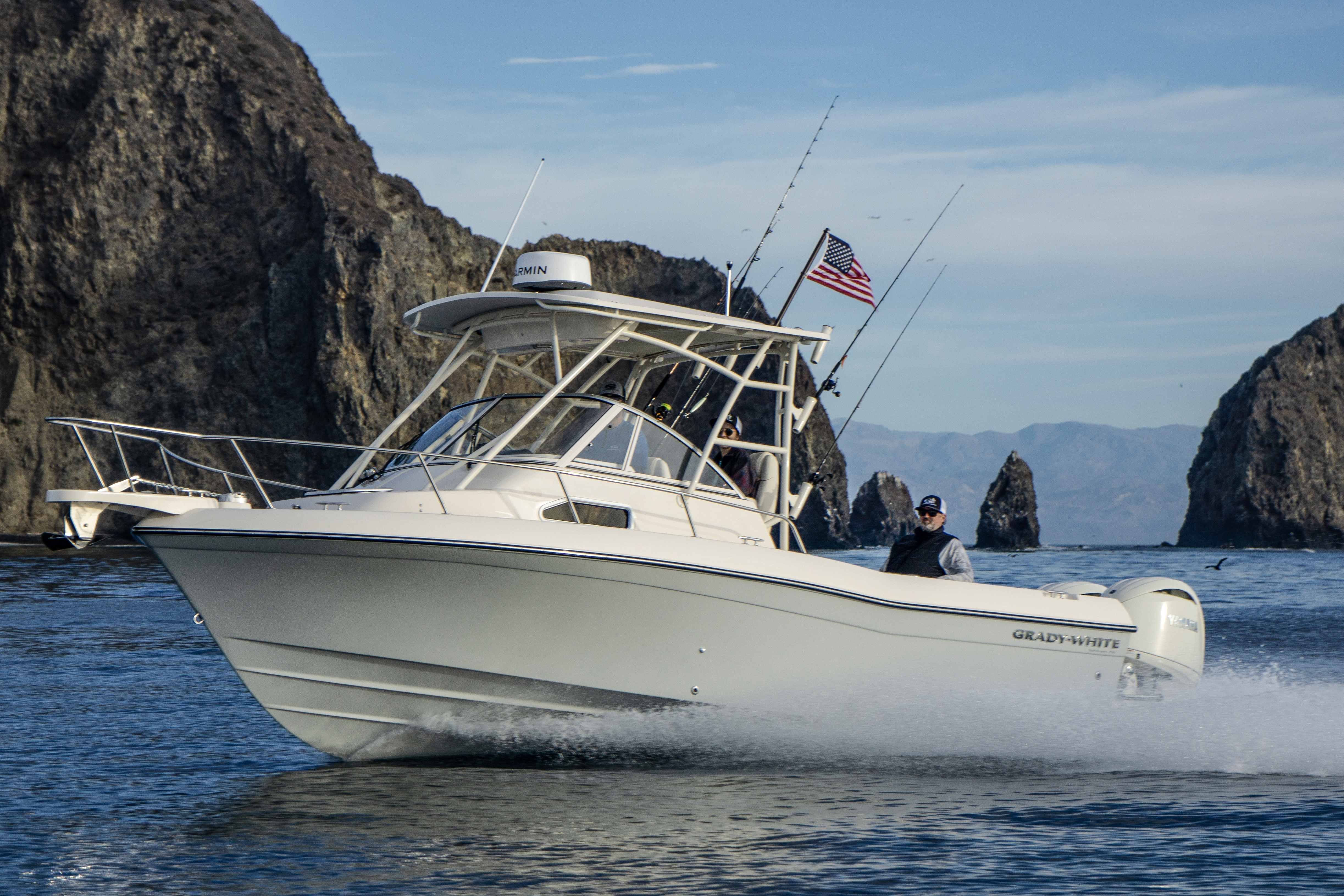

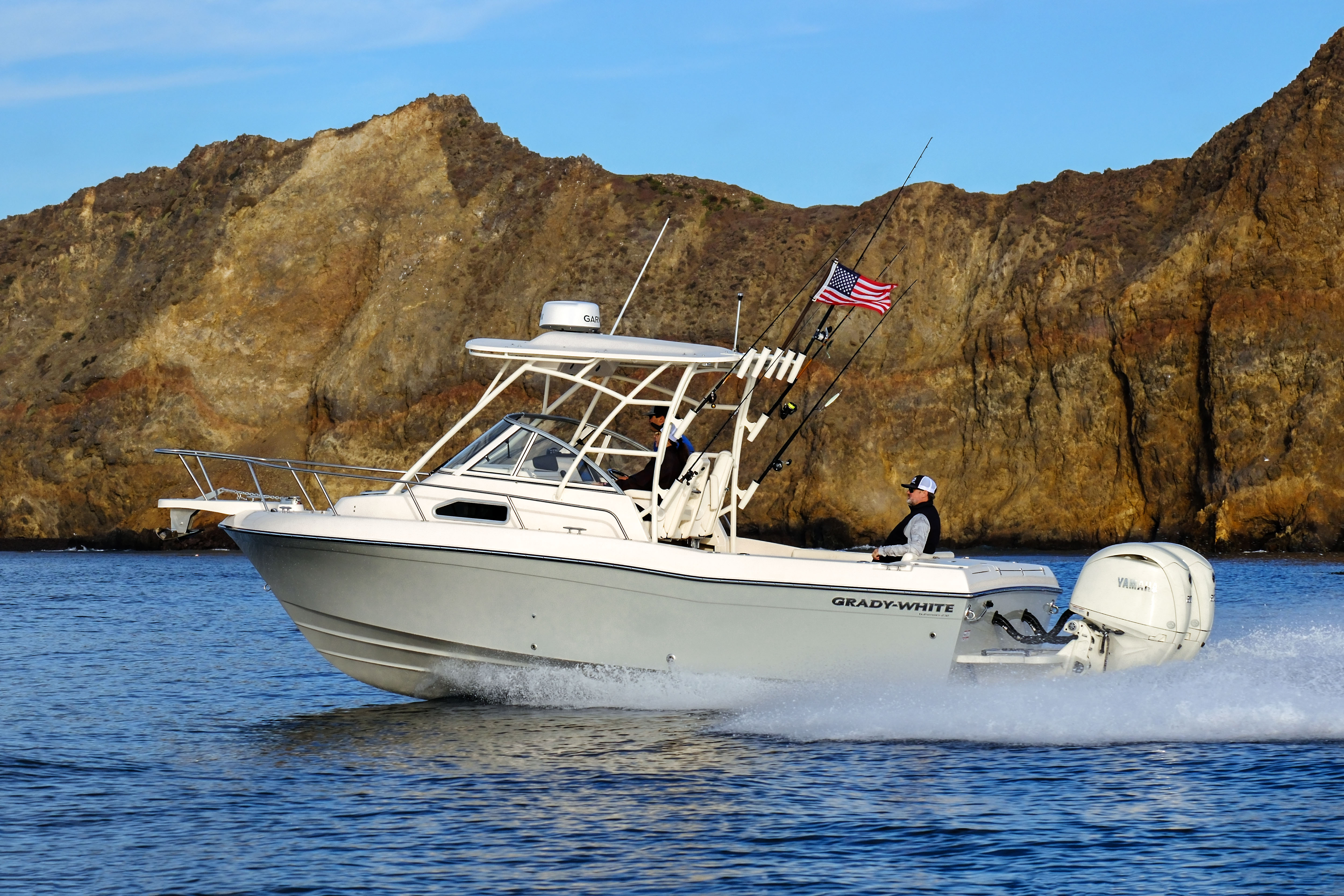

Gulfstream 232
23' WALKAROUND CABIN
Decades of building the Gulfstream 232 have earned Grady-White respect among saltwater fishing families for this 23-foot walkaround cabin boat as a solid, safe, feature-rich sport fishing boat that more than holds its own in big water and demanding conditions versus much bigger boats. Wide, roomy and safe with a seaworthy SeaV ride.

Main Specifications

Beam Amidships
9'3" (2.82 m)

Center Line Length w/o Engine(s)

23'5" (7.14 m)

Bridge Clearance

8'8" (2.64 m)

– w/Hardtop
8'8" (2.64 m)
Cockpit Depth
27" (0.69 m)
Hull Draft
20" (0.51 m)

Transom Deadrise

Maximum HP
400 (298 kW)

Fuel Capacity - Standard

141 gal. (534 l)

Passenger Capacity
10

Weight w/o Engine

4605 lb. (2089 kg)





Gulfstream 232

Standard Features

Images are updated often, but may not always exactly represent the current model

Select camera icons where available to view feature photos

Denotes feature as trademarked, exclusive, patented, or patent pending

Safety
2 automatic bilge pumps (total 2600 GPH) (9842 LPH)
Basic flotation
Bow rail - 316 grade stainless steelBow rail - 316 grade stainless steel
Captain Grady - digital boat systems and operations guide for iPad and iPhoneCaptain Grady - digital boat systems and operations guide for iPad and iPhone
Cockpit toe railsCockpit toe rails
Companion grab railCompanion grab rail
Composite stringer system & transom - water impervious
Nonskid fiberglass linerNonskid fiberglass liner
Nonskid recessed walkaroundNonskid recessed walkaround
Self-bailing cockpit w/cockpit drains (4)Self-bailing cockpit w/cockpit drains (4)
Stainless steel through-hull fittingsStainless steel through-hull fittings
Cabin
Berths - 2 berths (upper & lower)Berths - 2 berths (upper & lower)
Carbon monoxide detectorCarbon monoxide detector
Forward hatch - low profile acrylic hatch w/screenForward hatch - low profile acrylic hatch w/screen
Galley - portside galley w/sinkGalley - portside galley w/sink
Head - marine head w/macerator, 10-gallon (38 l) holding tank & pump outHead - marine head w/macerator, 10-gallon (38 l) holding tank & pump out
Ice box - insulated ice box w/ob drainIce box - insulated ice box w/ob drain
Lighting - dome lightLighting - dome light
Lockable door w/companionway hatchLockable door w/companionway hatch
Rod storage holders (2)Rod storage holders (2)
Storage - acrylic storage bin
Storage - aft compartmentStorage - aft compartment
Storage - under berth compartmentStorage - under berth compartment
Storage - under sink compartmentStorage - under sink compartment
Storage netsStorage nets
Windows - opening windows w/screens (2)Windows - opening windows w/screens (2)
Cockpit & Deck
100% hand laid SeaV² hull & deck100% hand laid SeaV² hull & deck
Accessory outlet - 12V (2)Accessory outlet - 12V (2)
Anchor windlassAnchor windlass
Battery select switchBattery select switch
Bow pulpitBow pulpit
CleatsCleats
Cockpit bolstersCockpit bolsters
Cockpit freshwater shower (recessed)Cockpit freshwater shower (recessed)
Cockpit lights - blue LEDCockpit lights - blue LED
CompassCompass
Cutting boardCutting board
Deck hardware - 316 grade stainless steel through-boltedDeck hardware - 316 grade stainless steel through-bolted
Drink holders - stainless steel (9)Drink holders - stainless steel (9)
Engine flush system w/hose attachment aft (one per engine)Engine flush system w/hose attachment aft (one per engine)
Factory engine pre-rigging
Fish box - 265-qt. (250.8 l) starboard insulated fish box w/ob drainFish box - 265-qt. (250.8 l) starboard insulated fish box w/ob drain
Fish box - 297-qt. (281.1 l) aft insulated fish box w/ob drainFish box - 297-qt. (281.1 l) aft insulated fish box w/ob drain
Flush mount electronics areaFlush mount electronics area
Footrests - helm & companion (adjustable)Footrests - helm & companion (adjustable)
Fuel capacity - 141-gallon (534 l) tank

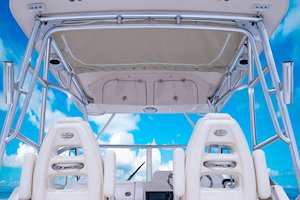

Hardtop  w/radio box, storage net, spreader lights, side mounted rod holders (4), outrigger plates & front and side curtains (ivory)Hardtop  w/radio box, storage net, spreader lights, side mounted rod holders (4), outrigger plates & front and side curtains (ivory)
Hydraulic trim tabs w/indicator & retractorHydraulic trim tabs w/indicator & retractor
International lighting
Livewell - 36-gallon (136.3 l) port insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)Livewell - 36-gallon (136.3 l) port insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)
Rod holders (4)Rod holders (4)
Rod storage racks - horizontal (6)Rod storage racks - horizontal (6)
Rubrail - high density PVC w/stainless steel insertRubrail - high density PVC w/stainless steel insert

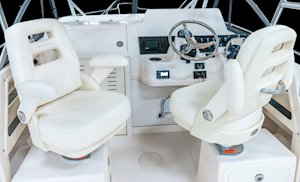

Seating - Deluxe II horizontally adjustable helm & companion chairsSeating - Deluxe II horizontally adjustable helm & companion chairs
Seating - fold away aft bench seat w/cushionSeating - fold away aft bench seat w/cushion
Seating - port livewell cushionSeating - port livewell cushion
Seating - starboard fish box cushionSeating - starboard fish box cushion
Steering - hydraulic tilt
Steering wheel - 316 grade stainless steelSteering wheel - 316 grade stainless steel
Stern eyes - heavy-duty 316 stainless steelStern eyes - heavy-duty 316 stainless steel
Storage - forward anchor locker w/rode storageStorage - forward anchor locker w/rode storage
Storage - tackle drawers under companion seat (2)Storage - tackle drawers under companion seat (2)
Storage - tackle trays under helm chair (2)Storage - tackle trays under helm chair (2)
Swim platform - full transom width w/ladderSwim platform - full transom width w/ladder
Washdown - pressurized raw water w/hoseWashdown - pressurized raw water w/hose
Water tank - 12-gallon (45.4 l) freshwater
Windshield - ventilated tempered glass windshieldWindshield - ventilated tempered glass windshield
Windshield wipersWindshield wipers

Optional Features

Options
CE certification package (European Conformity)
Convenience package - battery charger & dockside power w/galvanic isolator
Cushions - auxiliary berth cushionsCushions - auxiliary berth cushions
Engine paint - Yamaha factory-painted engine(s), pearlescent white (300 HP and 350 HP only)Engine paint - Yamaha factory-painted engine(s), pearlescent white (300 HP and 350 HP only)
Hardtop color - underside of fiberglass hardtop (requires matching gelcoat color option)Hardtop color - underside of fiberglass hardtop (requires matching gelcoat color option)
Hardtop top mounted rod holders (5)
Head - marine head w/electric flush & 10-gallon (38 l) holding tankHead - marine head w/electric flush & 10-gallon (38 l) holding tank
Hull color - Celestial Blue, Coastal Fog Blue, Sand, Sea Glass or Seaport Blue gelcoat; Cape Gray or Harbor Blue paintHull color - Celestial Blue, Coastal Fog Blue, Sand, Sea Glass or Seaport Blue gelcoat; Cape Gray or Harbor Blue paint
International AC electrical conversion - 220V (50Hz)
Outrigger kit - 15-ft. (4.6 m) crank outriggers hardtop mountedOutrigger kit - 15-ft. (4.6 m) crank outriggers hardtop mounted
Outrigger kit - 15-ft. (4.6 m) radial hardtop mountedOutrigger kit - 15-ft. (4.6 m) radial hardtop mounted
Seating - Command Elite horizontally and vertically adjustable contoured helm and companion chairs w/deluxe cushioning & flip-up bolstersSeating - Command Elite horizontally and vertically adjustable contoured helm and companion chairs w/deluxe cushioning & flip-up bolsters
Rod storage - folding cabin rack (4)Rod storage - folding cabin rack (4)
Seating - foredeck cushionsSeating - foredeck cushions
Steering - power assist steering
Stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers - cabin (2), cockpit (2) & helm (2)Stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers - cabin (2), cockpit (2) & helm (2)
Windshield washer - freshwater (starboard)Windshield washer - freshwater (starboard)
Canvas Options
Hardtop drop curtain (black or ivory)Hardtop drop curtain (black or ivory)





CHOOSE AN ENGINE BELOW FOR DETAILED PERFORMANCE SPECS OR SELECT TWO ENGINE PACKAGES TO COMPARE

300 YAMAHA FOUR-STROKE (SINGLE)

300 YAMAHA FOUR-STROKE (SINGLE)

PERFORMANCE DATA

SELECT TO COMPARE

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (SINGLE)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (SINGLE)

PERFORMANCE DATA

SELECT TO COMPARE

350 YAMAHA FOUR-STROKE (SINGLE)

350 YAMAHA FOUR-STROKE (SINGLE)

PERFORMANCE DATA

SELECT TO COMPARE

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (SINGLE)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (SINGLE)

PERFORMANCE DATA

SELECT TO COMPARE

150 YAMAHA FOUR-STROKE (TWIN)

150 YAMAHA FOUR-STROKE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

200 YAMAHA FOUR-STROKE (TWIN)

200 YAMAHA FOUR-STROKE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

BACK

COMPARE A DIFFERENT ENGINE PACKAGE
300 YAMAHA FOUR-STROKE (SINGLE)

300 YAMAHA FOUR-STROKE (SINGLE)

Engine Size:

4.2L

Test Date:

9/28/2010

Prop Size*:

15 3/4 X 15 SWSII SDS

Weight as Tested:

6711 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

No

Optimum Cruise: 29.3 MPH @ 4300 RPM

RPM MPH GPH MPG
1000 5.3 1.2 4.38
1500 7.1 2.1 3.36
2000 8.5 3.5 2.45
2500 8.8 4.9 1.81
3000 9.3 6.4 1.45
3500 10.5 8.8 1.20
4000 24.3 11.0 2.21
4300 29.3 12.6 2.33
4500 31.2 14.0 2.24
5000 36.0 17.7 2.03
5500 40.2 22.0 1.83
5900 43.8 25.9 1.69
300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (SINGLE)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (SINGLE)

Engine Size:

4.2L

Test Date:

9/28/2010

Prop Size*:

15 3/4 X 15 SWSII SDS

Weight as Tested:

6711 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

No

Optimum Cruise: 29.3 MPH @ 4300 RPM

RPM MPH GPH MPG
1000 5.3 1.2 4.38
1500 7.1 2.1 3.36
2000 8.5 3.5 2.45
2500 8.8 4.9 1.81
3000 9.3 6.4 1.45
3500 10.5 8.8 1.20
4000 24.3 11.0 2.21
4300 29.3 12.6 2.33
4500 31.2 14.0 2.24
5000 36.0 17.7 2.03
5500 40.2 22.0 1.83
5900 43.8 25.9 1.69
350 YAMAHA FOUR-STROKE (SINGLE)

350 YAMAHA FOUR-STROKE (SINGLE)

Engine Size:

5.3L

Test Date:

10/12/2007

Prop Size*:

16 1/4 X 17 SWS XL SDS

Weight as Tested:

7095 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

No

Optimum Cruise: 30.8 MPH @ 3900 RPM

RPM MPH GPH MPG
1000 5.6 1.4 4.00
1500 7.7 2.6 3.00
2000 8.8 4.9 1.80
2500 9.4 7.0 1.35
3000 15.4 9.5 1.62
3500 26.7 11.4 2.35
3900 30.8 13.4 2.30
4000 32.3 14.2 2.27
4500 37.3 17.8 2.10
5000 42.2 22.6 1.87
5500 46.8 29.9 1.57
6000 50.4 34.1 1.48
350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (SINGLE)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (SINGLE)

Engine Size:

5.3L

Test Date:

10/12/2007

Prop Size*:

16 1/4 X 17 SWS XL SDS

Weight as Tested:

7095 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

No

Optimum Cruise: 30.8 MPH @ 3900 RPM

RPM MPH GPH MPG
1000 5.6 1.4 4.00
1500 7.7 2.6 3.00
2000 8.8 4.9 1.80
2500 9.4 7.0 1.35
3000 15.4 9.5 1.62
3500 26.7 11.4 2.35
3900 30.8 13.4 2.30
4000 32.3 14.2 2.27
4500 37.3 17.8 2.10
5000 42.2 22.6 1.87
5500 46.8 29.9 1.57
6000 50.4 34.1 1.48
150 YAMAHA FOUR-STROKE (TWIN)

150 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

2.7L

Test Date:

10/22/2013

Prop Size*:

14 1/4 X 18 Reliance SDS

Weight as Tested:

7228 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

No

Optimum Cruise: 29.2 MPH @ 4000 RPM

RPM MPH GPH MPG
1000 5.3 1.5 3.66
1500 7.2 2.5 2.94
2000 8.6 3.9 2.19
2500 9.6 6.9 1.39
3000 13.8 9.7 1.43
3500 23.1 11.0 2.10
4000 29.2 13.3 2.20
4500 34.5 16.7 2.06
5000 39.7 20.9 1.90
5500 43.9 26.6 1.65
6000 48.4 31.9 1.52
200 YAMAHA FOUR-STROKE (TWIN)

200 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

2.8L

Test Date:

6/20/2013

Prop Size*:

14 1/4 X 18 Reliance SDS

Weight as Tested:

7025 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.8 MPH @ 3800 RPM

RPM MPH GPH MPG
1000 5.7 1.5 3.90
1500 7.4 2.6 2.83
2000 8.8 4.4 1.99
2500 10.0 7.2 1.39
3000 16.2 9.7 1.66
3500 27.1 11.7 2.33
3800 29.8 12.7 2.34
4000 32.5 14.5 2.24
4500 37.4 19.2 1.95
5000 43.4 25.9 1.68
5500 47.0 33.9 1.38
6000 52.0 40.5 1.28

BACK

VIEW SPECS FOR A DIFFERENT ENGINE PACKAGE
300 YAMAHA FOUR-STROKE (SINGLE)

300 YAMAHA FOUR-STROKE (SINGLE)

Engine Size:

4.2L

Test Date:

9/28/2010

Prop Size*:

15 3/4 X 15 SWSII SDS

Weight as Tested:

6711 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

No

Optimum Cruise: 29.3 MPH @ 4300 RPM

RPM MPH GPH MPG
1000 5.3 1.2 4.38
1500 7.1 2.1 3.36
2000 8.5 3.5 2.45
2500 8.8 4.9 1.81
3000 9.3 6.4 1.45
3500 10.5 8.8 1.20
4000 24.3 11.0 2.21
4300 29.3 12.6 2.33
4500 31.2 14.0 2.24
5000 36.0 17.7 2.03
5500 40.2 22.0 1.83
5900 43.8 25.9 1.69
300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (SINGLE)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (SINGLE)

Engine Size:

4.2L

Test Date:

9/28/2010

Prop Size*:

15 3/4 X 15 SWSII SDS

Weight as Tested:

6711 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

No

Optimum Cruise: 29.3 MPH @ 4300 RPM

RPM MPH GPH MPG
1000 5.3 1.2 4.38
1500 7.1 2.1 3.36
2000 8.5 3.5 2.45
2500 8.8 4.9 1.81
3000 9.3 6.4 1.45
3500 10.5 8.8 1.20
4000 24.3 11.0 2.21
4300 29.3 12.6 2.33
4500 31.2 14.0 2.24
5000 36.0 17.7 2.03
5500 40.2 22.0 1.83
5900 43.8 25.9 1.69
350 YAMAHA FOUR-STROKE (SINGLE)

350 YAMAHA FOUR-STROKE (SINGLE)

Engine Size:

5.3L

Test Date:

10/12/2007

Prop Size*:

16 1/4 X 17 SWS XL SDS

Weight as Tested:

7095 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

No

Optimum Cruise: 30.8 MPH @ 3900 RPM

RPM MPH GPH MPG
1000 5.6 1.4 4.00
1500 7.7 2.6 3.00
2000 8.8 4.9 1.80
2500 9.4 7.0 1.35
3000 15.4 9.5 1.62
3500 26.7 11.4 2.35
3900 30.8 13.4 2.30
4000 32.3 14.2 2.27
4500 37.3 17.8 2.10
5000 42.2 22.6 1.87
5500 46.8 29.9 1.57
6000 50.4 34.1 1.48
350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (SINGLE)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (SINGLE)

Engine Size:

5.3L

Test Date:

10/12/2007

Prop Size*:

16 1/4 X 17 SWS XL SDS

Weight as Tested:

7095 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

No

Optimum Cruise: 30.8 MPH @ 3900 RPM

RPM MPH GPH MPG
1000 5.6 1.4 4.00
1500 7.7 2.6 3.00
2000 8.8 4.9 1.80
2500 9.4 7.0 1.35
3000 15.4 9.5 1.62
3500 26.7 11.4 2.35
3900 30.8 13.4 2.30
4000 32.3 14.2 2.27
4500 37.3 17.8 2.10
5000 42.2 22.6 1.87
5500 46.8 29.9 1.57
6000 50.4 34.1 1.48
150 YAMAHA FOUR-STROKE (TWIN)

150 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

2.7L

Test Date:

10/22/2013

Prop Size*:

14 1/4 X 18 Reliance SDS

Weight as Tested:

7228 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

Yes

Bottom Paint:

No

Optimum Cruise: 29.2 MPH @ 4000 RPM

RPM MPH GPH MPG
1000 5.3 1.5 3.66
1500 7.2 2.5 2.94
2000 8.6 3.9 2.19
2500 9.6 6.9 1.39
3000 13.8 9.7 1.43
3500 23.1 11.0 2.10
4000 29.2 13.3 2.20
4500 34.5 16.7 2.06
5000 39.7 20.9 1.90
5500 43.9 26.6 1.65
6000 48.4 31.9 1.52
200 YAMAHA FOUR-STROKE (TWIN)

200 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

2.8L

Test Date:

6/20/2013

Prop Size*:

14 1/4 X 18 Reliance SDS

Weight as Tested:

7025 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.8 MPH @ 3800 RPM

RPM MPH GPH MPG
1000 5.7 1.5 3.90
1500 7.4 2.6 2.83
2000 8.8 4.4 1.99
2500 10.0 7.2 1.39
3000 16.2 9.7 1.66
3500 27.1 11.7 2.33
3800 29.8 12.7 2.34
4000 32.5 14.5 2.24
4500 37.4 19.2 1.95
5000 43.4 25.9 1.68
5500 47.0 33.9 1.38
6000 52.0 40.5 1.28

Gulfstream 232 Customer Reviews

Industry Reviews

September 2006 Boating World

"Banks Brawler: Boat of the Month"

Download

June 2016 Boat.com

Grady-White Gulfstream 232 Review

Download
