Disclaimer: Our models undergo continuous enhancements, therefore some features and options seen in the gallery may have changed since these photos were taken. Please refer to the Detailed Spec photos for the most updated information.
Center Line Length w/o Engines
36'7" (11.15 m)
Transom Deadrise
20 degrees (SeaV2® progression)
Maximum HP
1275 (951 kW)
Fuel Capacity - Standard
320 gal. (1211 l)
Weight w/o Engines
16,250 lb. (7370 kg)
Images are updated often, but may not always exactly represent the current model
Select camera icons where available to view feature photos
Denotes feature as trademarked, exclusive, patented, or patent pending
Bow rail - low profile 316 grade stainless steel
Captain Grady® - digital boat systems and operations guide for iPad and iPhone
Cockpit toe rails
Console grab rails
Nonskid fiberglass liner
Self-bailing cockpit w/cockpit drains (6)
Stainless steel through-hull fittings
100% hand laid SeaV² hull & deck
Accessory outlet - 12V (3)
Accessory outlet - 5V duplex USB port
Air conditioning - 16,000 BTU at helm
Anchor windlass w/remote switches at helm & windlass
Batteries (4)
Battery select switch
Bow thruster
Cleats - flush mount (pop up)
Cockpit bolsters
Cockpit freshwater shower (recessed)
Cockpit lights - LED lighting
Cockpit side door - starboard w/boarding ladder
Companion grab rail
Compass
Cutting board
Deck hardware - 316 grade stainless steel through-bolted
Drink holders (17)
Engine flush system w/hose attachment aft (one per engine)
Fish/ice box - 208-qt. (197 l) aft insulated box w/lights (2) & ob drain
Flush mount electronics area
Footrest - helm
Forward bolsters
Freezer - refrigerator/freezer aft fish box w/digitally controlled thermostat & ob drain
Generator - 8 kW diesel, 20-gallon (76 l) fuel capacity
Hardtop - AV2® hardtop enclosure w/aluminum painted frame, grab rail, electronically sliding sunroof w/screen & shade, storage net, LED spreader lights, tri-colored (red, blue, white) LED recessed lights (8), storage and first aid kit compartments (2), outrigger plates, horizontal hanging rod holders (4), side mounted rod holders (4), Clear2Sea™ side curtains (black or ivory) & SureShade® electrically retractable shade with Sunbrella® canvas (oyster)
Hydraulic trim tabs w/indicator & retractor
Integrated outboard mounting system w/swim platform & ladder
Livewell - 30-gallon (114 l) aft insulated raw water livewell w/light, full distribution inlet & ob drain (1100 GPH pump) (4164 LPH)
Rod holders (6 gunwale)
Rod storage racks - horizontal (6)
Rubrail - high density PVC w/ stainless steel insert
Seating - electromechanically adjustable helm bench seat with dual flip-up bolsters
Seating - electromechanically extendable port lounge w/storage & pull-out Corian(R)-topped wood-grain countertops w/drawers
Seating - fold away aft bench seat w/cushion
Seating - port & starboard bow deluxe cushioned surround seating
Seating - wraparound companion bench seat
Steering wheel - 316 grade stainless steel w/knob
Stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers w/LED lights - aft (2), bow (2), hardtop (2) & cabin console (2)
Stern eyes - heavy-duty 316 stainless steel

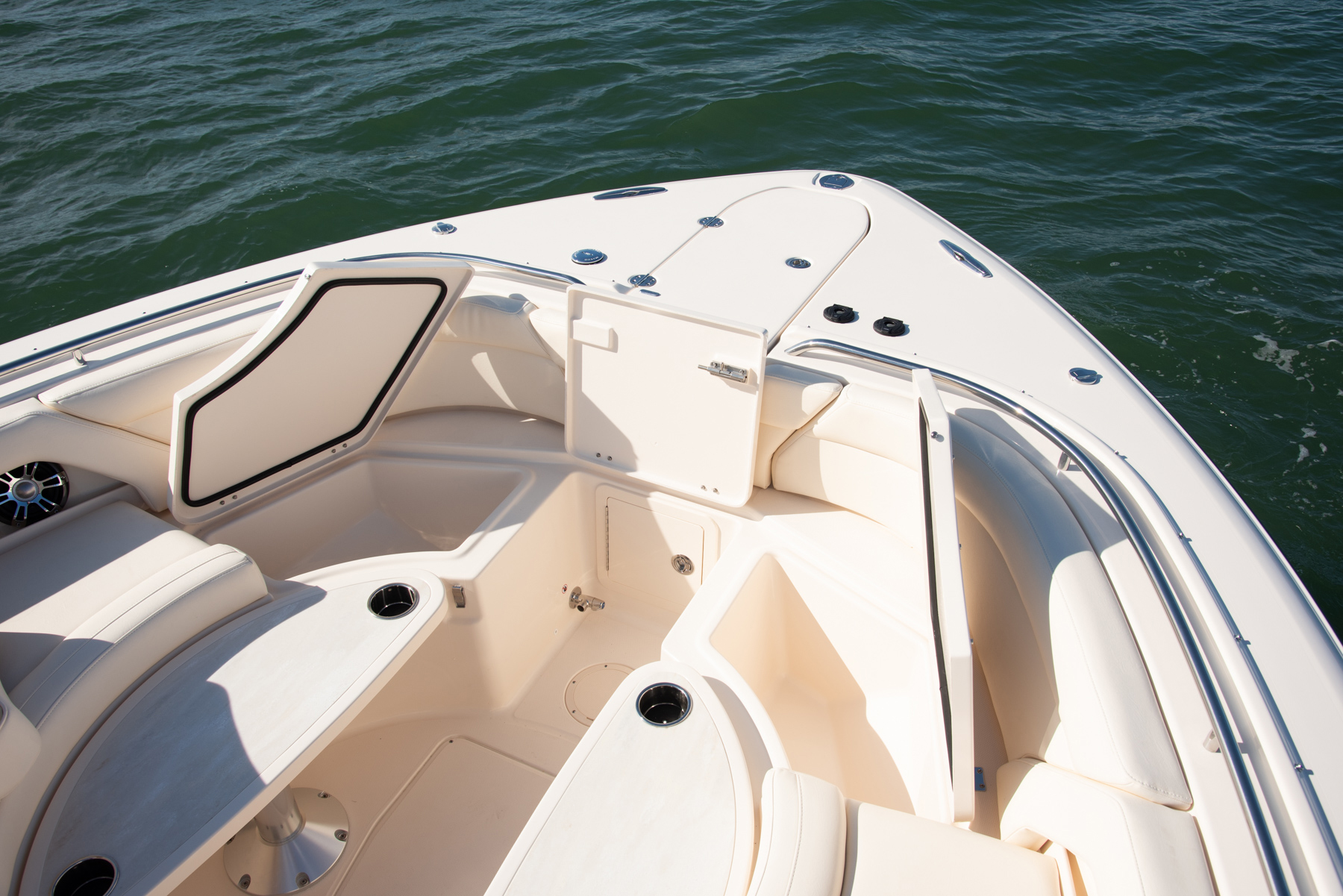

Storage - 54-qt. port bow insulated box w/ob drain
Storage - 54-qt. starboard bow insulated box w/ob drain
Storage - forward anchor locker w/rode storage
Storage - helm floor compartment, lighted
Storage - port box under wraparound companion bench seat
Tables (3) - fiberglass electrically adjustable half-moon tables w/covers at bow (2); stowable fiberglass table at port helm area
Transom door - fiberglass
Washdown - pressurized raw water
Washdown - freshwater (forward & aft)
Wet bar w/1300W grill, refrigerator, sink, storage drawers, trash bin, drink holders (2) & fire extinguisher holder (integrated with electronically adjustable helm seat)
Windshield - walk-through tempered glass windshield
Windshield wipers - pantograph w/washer (2)
Accessory outlet - 5V duplex USB port
Air conditioning - 8,000 BTU in portside cabin console w/additional outlet in starboard console
Carbon monoxide detector
Composite cherry and holly soles
Portside cabin console w/electronically operated sliding berth, aft berth, bench seat, cedar lined closet, drawers, flat screen 19" LED-LCD TV w/ DVD player & audio/visual inputs, mirror, lighting, tinted screened window & bulk storage
Starboard console w/shower, sink, drawers, lighting, microwave, bulk storage, mirror w/vanity lighting, fold down seat w/cushion & VacuFlush® head w/freshwater supply, 10-gallon (38 l) holding tank, overboard discharge & deck pump out
Deck chair - luxury cushioned custom deck chair w/padded arms & drink holder
Hardtop 19" flatscreen LCD fold down TV
Hull color - Celestial Blue, Coastal Fog Blue, Sand, Sea Glass or Seaport Blue gelcoat; Cape Gray or Harbor Blue paint
Outrigger kit - 15-ft. (4.6 m) crank outriggers hardtop mounted
Outrigger kit - 15-ft. (4.6 m) radial hardtop mounted
Seating - aft wraparound lounge seat (in lieu of fold away bench seat)
Aft curtain (black or ivory)
Bow cover (black or ivory)
Drop curtain (black or ivory)
SELECT TO COMPARE
SELECT TO COMPARE
SELECT TO COMPARE
Engine Size:
4.2L
Test Date:
2/28/2013
Prop Size*:
15 1/2 X 17 SWS II SDS
Weight as Tested:
20499 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop:
Yes
Bow Pulpit:
No
Bottom Paint:
No
Optimum Cruise: 29.5 MPH @ 3800 RPM
| RPM | MPH | GPH | MPG |
| 1000 | 6.2 | 3.9 | 1.60 |
| 1500 | 8.2 | 6.0 | 1.37 |
| 2000 | 9.4 | 10.0 | 0.94 |
| 2500 | 10.7 | 15.2 | 0.70 |
| 3000 | 15.3 | 19.1 | 0.80 |
| 3500 | 24.5 | 25.2 | 0.97 |
| 3800 | 29.5 | 30.2 | 0.98 |
| 4000 | 31.1 | 32.7 | 0.95 |
| 4500 | 37.0 | 43.1 | 0.86 |
| 5000 | 40.8 | 51.7 | 0.79 |
| 5500 | 45.6 | 65.9 | 0.69 |
| 5900 | 48.7 | 78.2 | 0.62 |
Engine Size:
5.3L
Test Date:
6/12/2013
Prop Size*:
16 1/4 X 17 SWS XL SDS
Weight as Tested:
21925 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop:
Yes
Bow Pulpit:
No
Bottom Paint:
No
Optimum Cruise: 32.0 MPH @ 3800 RPM
| RPM | MPH | GPH | MPG |
| 1000 | 5.9 | 4.3 | 1.37 |
| 1500 | 8.1 | 7.6 | 1.07 |
| 2000 | 9.2 | 12.8 | 0.72 |
| 2500 | 10.2 | 18.8 | 0.54 |
| 3000 | 18.6 | 22.1 | 0.84 |
| 3800 | 32.0 | 34.8 | 0.92 |
| 4000 | 33.4 | 36.7 | 0.91 |
| 4500 | 38.2 | 46.6 | 0.82 |
| 5000 | 42.7 | 60.0 | 0.71 |
| 5500 | 48.2 | 81.7 | 0.59 |
| 6000 | 52.9 | 102.9 | 0.51 |
Engine Size:
5.6L
Test Date:
10/02/2018
Prop Size*:
16 3/8 X 21 XTO SDS
Weight as Tested:
21687 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop:
Yes
Bow Pulpit:
No
Bottom Paint:
No
Optimum Cruise: 30.4 MPH @ 3400 RPM
| RPM | MPH | GPH | MPG |
| 1000 | 7.1 | 5.8 | 1.22 |
| 1500 | 9.6 | 8.3 | 1.16 |
| 2000 | 11.2 | 12.8 | 0.88 |
| 2500 | 15.4 | 19.9 | 0.77 |
| 3000 | 24.8 | 27.3 | 0.91 |
| 3400 | 30.4 | 32.9 | 0.92 |
| 3500 | 31.9 | 35.5 | 0.90 |
| 4000 | 37.6 | 44.1 | 0.85 |
| 4500 | 43.3 | 59.3 | 0.73 |
| 5000 | 48.4 | 79.2 | 0.61 |
| 5500 | 54.6 | 100.2 | 0.54 |
| 5900 | 57.4 | 106.3 | 0.54 |
Engine Size:
4.2L
Test Date:
2/28/2013
Prop Size*:
15 1/2 X 17 SWS II SDS
Weight as Tested:
20499 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop:
Yes
Bow Pulpit:
No
Bottom Paint:
No
Optimum Cruise: 29.5 MPH @ 3800 RPM
| RPM | MPH | GPH | MPG |
| 1000 | 6.2 | 3.9 | 1.60 |
| 1500 | 8.2 | 6.0 | 1.37 |
| 2000 | 9.4 | 10.0 | 0.94 |
| 2500 | 10.7 | 15.2 | 0.70 |
| 3000 | 15.3 | 19.1 | 0.80 |
| 3500 | 24.5 | 25.2 | 0.97 |
| 3800 | 29.5 | 30.2 | 0.98 |
| 4000 | 31.1 | 32.7 | 0.95 |
| 4500 | 37.0 | 43.1 | 0.86 |
| 5000 | 40.8 | 51.7 | 0.79 |
| 5500 | 45.6 | 65.9 | 0.69 |
| 5900 | 48.7 | 78.2 | 0.62 |
Engine Size:
5.3L
Test Date:
6/12/2013
Prop Size*:
16 1/4 X 17 SWS XL SDS
Weight as Tested:
21925 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop:
Yes
Bow Pulpit:
No
Bottom Paint:
No
Optimum Cruise: 32.0 MPH @ 3800 RPM
| RPM | MPH | GPH | MPG |
| 1000 | 5.9 | 4.3 | 1.37 |
| 1500 | 8.1 | 7.6 | 1.07 |
| 2000 | 9.2 | 12.8 | 0.72 |
| 2500 | 10.2 | 18.8 | 0.54 |
| 3000 | 18.6 | 22.1 | 0.84 |
| 3800 | 32.0 | 34.8 | 0.92 |
| 4000 | 33.4 | 36.7 | 0.91 |
| 4500 | 38.2 | 46.6 | 0.82 |
| 5000 | 42.7 | 60.0 | 0.71 |
| 5500 | 48.2 | 81.7 | 0.59 |
| 6000 | 52.9 | 102.9 | 0.51 |
Engine Size:
5.6L
Test Date:
10/02/2018
Prop Size*:
16 3/8 X 21 XTO SDS
Weight as Tested:
21687 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop:
Yes
Bow Pulpit:
No
Bottom Paint:
No
Optimum Cruise: 30.4 MPH @ 3400 RPM
| RPM | MPH | GPH | MPG |
| 1000 | 7.1 | 5.8 | 1.22 |
| 1500 | 9.6 | 8.3 | 1.16 |
| 2000 | 11.2 | 12.8 | 0.88 |
| 2500 | 15.4 | 19.9 | 0.77 |
| 3000 | 24.8 | 27.3 | 0.91 |
| 3400 | 30.4 | 32.9 | 0.92 |
| 3500 | 31.9 | 35.5 | 0.90 |
| 4000 | 37.6 | 44.1 | 0.85 |
| 4500 | 43.3 | 59.3 | 0.73 |
| 5000 | 48.4 | 79.2 | 0.61 |
| 5500 | 54.6 | 100.2 | 0.54 |
| 5900 | 57.4 | 106.3 | 0.54 |
