Freedom 235

23' DUAL CONSOLE



Loaded with big boat features, the Freedom 235 is the best built family boat, perfect for both fishing and cruising. The sleek, forward-thinking design is a real head turner, and when you climb aboard, the expansive beam evokes a large boat feel. An oversized head compartment, freshwater cockpit shower, and sturdy transom door providing access to swim or dockside boarding platforms are just added conveniences not typically found on boats this size. This 23-foot boat offers an optional wet bar and electromechanically extendable lounge seat as well as many other added amenities, making this one of the best dual console boats and a delight for the whole family.

Photo Gallery


Freedom 235 Main Specifications

Beam Amidships
8'6" (2.59 m)

Center Line Length w/o Engines
23'7" (7.18 m) (swim platforms not included)

LOA w/Swim Platforms
25'7" (7.80 m)

Bridge Clearance
8' (2.44 m)

Cockpit Depth
25" (0.64 m)

Hull Draft
20" (0.51 m)

Transom Deadrise

Maximum HP
350 (261 kW)

Fuel Capacity - Standard
100 gal (379 l)

Passenger Capacity
10

Weight w/o Engines
4420 lb. (2005 kg)


Freedom 235 Features & Options

camera icon

Select camera icons where available to view feature photos

patent icon

Denotes feature as trademarked, exclusive, patented, or patent pending

STANDARD FEATURES

Safety

Automatic bilge pump (1500 GPH) (5678 LPH)

Basic flotation

Grady-White Freedom 235, 23-foot dual console boat with bow grab rails

Bow grab rail - low profile 316 grade stainless steel

Grady-White Freedom 235 23-foot dual console with rod storage, cockpit bolsters, and toe rails

Cockpit toe rails

Composite stringer system & transom - water impervious

Grady-White Freedom 235, 23-foot dual console boat with fire extinguisher holder

Fire extinguisher holder

Grady-White Freedom 235 23-foot dual console nonskid fiberglass

Nonskid fiberglass liner

Grady-White Freedom 235 23-foot dual console cockpit

Self-bailing cockpit w/cockpit drains (4)

Grady-White Freedom 235 23-foot dual console stainless steel through-hull fittings

Stainless steel through-hull fittings

Cockpit & Deck

patent icon
Grady-White Freedom 235 23-foot dual console hand laid hull

100% hand laid SeaV² hull & deck

Grady-White Freedom 235, 23-foot dual console boat 5V USB outlet

Accessory outlet - 5V duplex USB port (2)

Grady-White Freedom 235, 23-foot dual console boat with 12V outlet

Accessory outlet - 12V

Grady-White Freedom 235, 23-foot dual console boat battery select switch and batteries

Batteries (2) w/battery select switch (1)

Grady-White Freedom 235 23-foot dual console fishing boat drink holder and cleat.

Cleats - flush mount (pull up)

Grady-White Freedom 235 23-foot dual console with rod storage, cockpit bolsters, and toe rails

Cockpit bolsters

Grady-White Freedom 235 23-foot dual console cockpit freshwater shower

Cockpit freshwater shower (recessed)

Grady-White Freedom 235, 23-foot dual console boat with cockpit lights

Cockpit lights - blue LED

Grady-White Freedom 235 23-foot dual console grab rail

Companion grab rail

Freedom 235 dual console compass on top of starboard console

Compass

Grady-White Freedom 235 23-foot dual console hardware

Deck hardware - 316 grade stainless steel through-bolted

Grady-White Freedom 235 23-foot dual console fishing boat drink holder and cleat.

Drink holders - stainless steel (9)

Grady-White Freedom 235 23-foot dual console engine flush

Engine flush system w/hose attachment aft

Factory engine pre-rigging

Freedom 235 160 qt. insulated aft fish box with overboard drain

Fish/ice box - 160-qt. (151.4 l) aft insulated box w/ob drain

Grady-White Freedom 235 23-foot dual console starboard bow ice box

Fish/ice box - 89-qt. (84.2 l) starboard bow insulated box w/ob drain

Grady-White Freedom 235 23-foot dual console fishing boat helm overall.

Flush mount electronics area

Grady-White Freedom 235, 23-foot dual console boat with helm footrest

Footrest - helm

Grady-White Freedom 235 23-foot dual console bow cushioned seating and bolsters

Forward bolsters

Freedom 235 dual console T-Top with paint to match hull color

Hardtop w/painted aluminum frame, storage net, side-mounted rod holders (4), LED spreader lights, tri-colored (red, blue, white) recessed lights (4), radar flat & outrigger plates

Grady-White Freedom 235 23-foot dual console head

Head - lockable port console area w/lighting, portable head, mirror, storage & composite cherry & holly sole

Freedom 235 dual console Bennett trim tabs

Hydraulic trim tabs w/indicator & retractor

International lighting on a Grady-White Freedom 235 dual console.

International lighting

Grady-White Freedom 235 23-foot dual console aft livewell

Livewell - 15.5-gallon (58.7 l) aft insulated raw water livewell w/light, full column distribution inlet & ob drain (800 GPH pump) (3028 LPH)

Grady-White Freedom 235, 23-foot dual console boat with gunwale rod holders

Rod holders - cockpit (4)

Grady-White Freedom 235 23-foot dual console rod storage racks in cockpit

Rod storage racks - horizontal (6)

Grady-White Freedom 235, 23-foot dual console boat with rubrail

Rubrail - high density PVC w/stainless steel insert

Grady-White Freedom 235, 23-foot dual console boat command elite helm chair

Seating - Command Elite helm & companion chairs (2) horizontally & vertically adjustable w/deluxe cushioning & flip-up bolster

patent icon
Grady-White Freedom 235 23-foot dual console bench seat

Seating - foldaway aft bench seat w/cushion

Grady-White Freedom 235 23-foot dual console bow cushioned seating and bolsters

Seating - port & starboard bow cushioned seating

Grady-White Freedom 235, 23-foot dual console boat with helm master digital electric steering

Steering - Helm Master® EX w/Integrated Digital Electric Steering (does not include joystick)

Grady-White Freedom 235 23-foot dual console fishing boat steering wheel.

Steering wheel - 316 grade stainless steel w/knob

Grady-White Freedom 235 23-foot dual console fishing boat stereo system.

Stereo system w/waterproof touch screen display, AM/FM tuner, Wi-Fi & Bluetooth® connectivity & remote unit; speakers w/LED lights - bow (2), cockpit (2)

Grady-White Canyon 306, 30-foot center console stern eyes.

Stern eyes - 316 grade stainless steel

Grady-White Freedom 235, 23-foot dual console boat with forward anchor locker

Storage - forward anchor locker w/rode storage

Grady-White Freedom 235 23-foot dual console starboard compartment

Storage - lockable starboard console compartment w/light & storage pocket w/tackle trays (2)

Grady-White Freedom 235 23-foot dual console port bow box

Storage - port bow storage box

Grady-White Freedom 235 23-foot dual console fishing boat stereo system.

Storage - port console tablet/phone compartment

Grady-White Freedom 235 23-foot dual console aft swim platforms with storage areas

Swim platforms - aft port & starboard extensions w/storage & starboard ladder

Grady-White Freedom 235 23-foot dual console transom door

Transom door - fiberglass

Grady-White Freedom 235 23-foot dual console washdown and rod storage

Washdown - pressurized raw water w/hose

Water tank - 20-gallon (75.7 l) freshwater

Grady-White Freedom 235 23-foot dual console with windshield and windshield wiper

Windshield - walk-through tempered glass w/windbreak door

Grady-White Freedom 235, 23-foot dual console boat with starboard windshield wiper

Windshield wiper (starboard)

OPTIONAL FEATURES

Options

Grady-White Freedom 235, 23-foot dual console boat with anchor windlass

Anchor windlass w/bow roller

CE certification package (European Conformity)

patent icon
Grady-White Freedom 235, 23-foot dual console boat with cockpit step

Cockpit step - starboard (not available w/wet bar option)

Freedom 235 dual console T-Top with paint to match hull color

Hardtop color - underside of fiberglass hardtop (requires matching gelcoat color option)

Freedom 235 dual console head with marine toilet and storage compartments

Head - marine head w/electric flush, 10-gallon (38 l) holding tank w/macerator, overboard discharge & deck pump out

Grady-White Freedom 235 23-foot dual console head

Head - marine head w/manual flush, 10-gallon (38 l) holding tank w/macerator, overboard discharge & deck pump out

Grady-White hull color examples

Hull color - Celestial Blue, Coastal Fog, Ocean Mist, or Sea Glass gelcoat

Outrigger kit - 18-ft. (5.5 m) crank hardtop mounted stainless steel outriggers w/carbon fiber poles (not available w/SureShade® option)

Grady-White Freedom 235 23-foot dual console hardtop top mounted rod holders

Painted hardtop top mounted rod holders (4) (not available w/SureShade® option)

Grady-White Freedom 235 23-foot dual console deluxe companion seat and aft extendable lounge.

Seating - deluxe companion seating w/electromechanically extendable lounge seat (not available w/port lounge seat)

Grady-White Freedom 235 23-foot dual console seating port sliding seat

Seating - port lounge seat w/sliding tilt backrest & storage drawer (not available w/deluxe companion seating w/extendable lounge seat)

Grady-White Freedom 235 23-foot dual console fishing boat ski pylon.

Ski pylon

Grady-White Freedom 235 23-foot dual console helm layout

Steering - Helm Master® EX w/Full Maneuverability

Grady-White Freedom 235, 23-foot dual console boat with bow sun platform insert seating

Sun platform insert w/cushion

Grady-White Freedom 235, 23-foot dual console boat with hardtop mounted sureshade

SureShade® electrically retractable cockpit shade w/Sunbrella® canvas (oyster) (not available w/top mounted rod holders or outrigger kit options)

Grady-White Freedom 235, 23-foot dual console boat with bow table

Table - fiberglass bow table

Grady-White Freedom 235, 23-foot dual console boat with wetbar and cooler slides

Wet bar w/sink, drink holders (2) & 35-qt. (33 l) removable Yeti® cooler (under) (not available w/cockpit step option)

Canvas Options

Grady-White Freedom 235, 23ft dual console bow cover.

Bow cover (ivory)

Grady-White Freedom 275, 27ft dual console easy up bow shade.

Easy up bow shade (ivory mesh)

Grady-White Freedom 235, 23ft dual console aft curtain.

Hardtop aft curtain (ivory) (requires hardtop front & side curtains)

Grady-White Freedom 235, 23ft dual console drop curtain.

Hardtop drop curtain (ivory) (requires hardtop front & side curtains)

Grady-White Freedom 235, 23ft dual console front and side curtains.

Hardtop front & side curtains (ivory)

Grady-White Freedom 235, 23ft dual console tonneau cover.

Tonneau cover (ivory)


Freedom 235 Performance Data

300 Yamaha Four-Stroke
Single

Top Speed: 46.4 MPH @ 5800 RPM

Optimum Cruise: 27.9 MPH @ 3600 RPM

GPH at Optimum Cruise: 9.5

MPG at Optimum Cruise: 2.94

White engine color

CLASSIC WHITE

Standard

Single Yamaha F350 engine in Classic White color
350 Yamaha Four-Stroke
Single
White engine color

CLASSIC WHITE

Standard

300 Yamaha Four-Stroke
Single

Engine Size

4.2L

Test Date

05/27/2016

Prop Size

15 1/2 X 17 SWS II SDS

Weight as Tested

6040 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop

No

Bow Pulpit

No

Bottom Paint

No

Optimum Cruise

27.9 MPH @ 3600 RPM

RPM MPH GPH MPG
1000 5.4 1.2 4.50
1500 7.3 2.2 3.40
2000 8.7 3.6 2.40
2500 10.3 5.4 1.91
3000 15.2 6.8 2.24
3500 26.4 8.9 2.98
3600 27.9 9.5 2.94
4000 31.7 11.9 2.68
4500 36.7 15.5 2.36
5000 40.8 20.4 2.00
5500 44.7 25.6 1.75
5800 46.4 26.6 1.74
Back To Engines
PERFORMANCE DISCLAIMERS
The following variables can affect performance: wind, current, sea conditions, speed, engine performance, transducer, trolling time, engine trim, bottom paint, trim tabs, curtains, tops, gear placement and prop size/condition/type. This report should be used only as a general reference guide. Prop size, pitch and prop features listed in this performance report reflect the available props factory installed on new boats from Grady-White at this time. Props cited in the report may be an updated version(s) of the prop(s) used at the time of the test.
Single Yamaha F350 engine in Classic White color
350 Yamaha Four-Stroke
Single

Engine Size

Test Date

Prop Size

Weight as Tested

Hardtop

No

Bow Pulpit

No

Bottom Paint

No

Optimum Cruise

RPM MPH GPH MPG
Back To Engines
PERFORMANCE DISCLAIMERS
The following variables can affect performance: wind, current, sea conditions, speed, engine performance, transducer, trolling time, engine trim, bottom paint, trim tabs, curtains, tops, gear placement and prop size/condition/type. This report should be used only as a general reference guide. Prop size, pitch and prop features listed in this performance report reflect the available props factory installed on new boats from Grady-White at this time. Props cited in the report may be an updated version(s) of the prop(s) used at the time of the test.
300 Yamaha Four-Stroke
Single

Engine Size

4.2L

Test Date

05/27/2016

Prop Size

15 1/2 X 17 SWS II SDS

Weight as Tested

6040 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop

No

Bow Pulpit

No

Bottom Paint

No

Optimum Cruise

27.9 MPH @ 3600 RPM

RPM MPH GPH MPG
1000 5.4 1.2 4.50
1500 7.3 2.2 3.40
2000 8.7 3.6 2.40
2500 10.3 5.4 1.91
3000 15.2 6.8 2.24
3500 26.4 8.9 2.98
3600 27.9 9.5 2.94
4000 31.7 11.9 2.68
4500 36.7 15.5 2.36
5000 40.8 20.4 2.00
5500 44.7 25.6 1.75
5800 46.4 26.6 1.74
Single Yamaha F350 engine in Classic White color
350 Yamaha Four-Stroke
Single

Engine Size

Test Date

Prop Size

Weight as Tested

Hardtop

No

Bow Pulpit

No

Bottom Paint

No

Optimum Cruise

RPM MPH GPH MPG
Back To Engines
PERFORMANCE DISCLAIMERS
The following variables can affect performance: wind, current, sea conditions, speed, engine performance, transducer, trolling time, engine trim, bottom paint, trim tabs, curtains, tops, gear placement and prop size/condition/type. This report should be used only as a general reference guide. Prop size, pitch and prop features listed in this performance report reflect the available props factory installed on new boats from Grady-White at this time. Props cited in the report may be an updated version(s) of the prop(s) used at the time of the test.

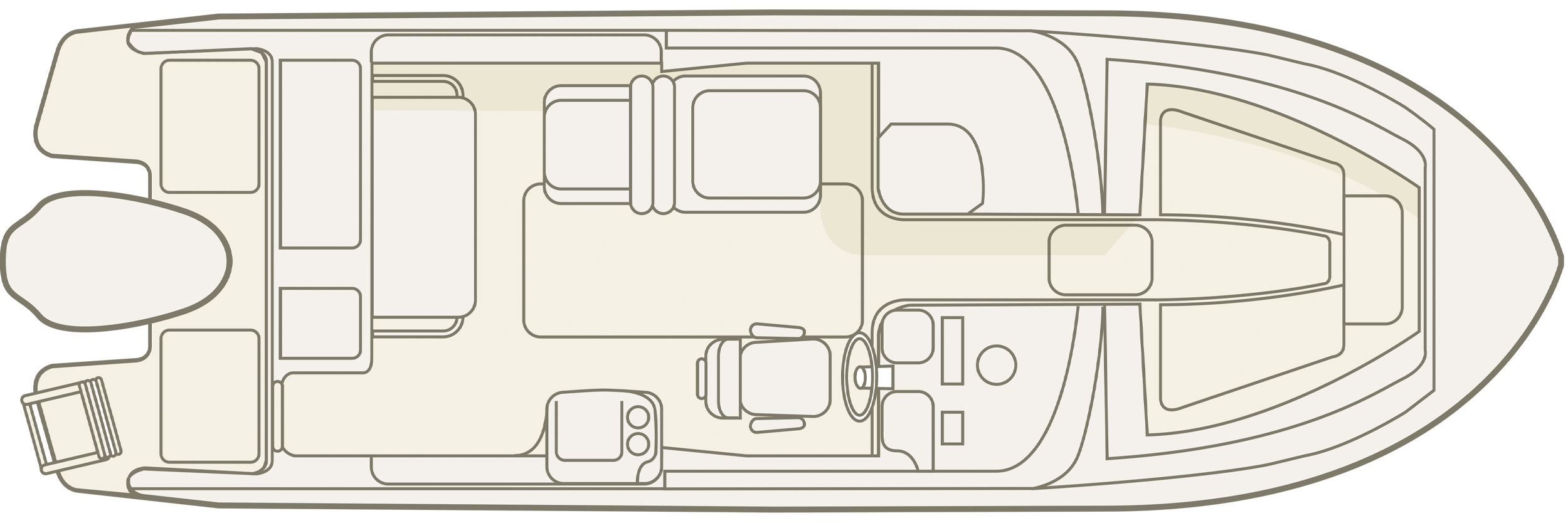

Freedom 235 Overhead

Select the hotspots below to learn more about the Freedom 235 features.

Grady-White Freedom 235 23-foot dual console overhead

Videos

Customer Reviews


Industry Reviews



 February 4, 2021, FloridaSportsman.com - "Grady-White Freedom 235 Boat Review"



 January 2019, Great Lakes Scuttlebutt - "Grady-White's 23-foot Freedom 235"



 November 2018, FishTalk - "Grady-White Freedom 235 Room To Roam"



 March 2017, Boatingmag.com - "A sporty dual designed to win the hearts and minds of many family-oriented anglers."



 December 13, 2016, Boatingmag.com - "Freedom 235 mixes a smooth ride with loads of fishability"



 September 2016, Soundings - "The Freedom 235 is added to Grady-White's dual console fleet"



 August 9, 2016, New England Boating - "New Boat: Grady-White Freedom 235"



 August 2016, BoatTEST.com - "BoatTEST.com review Grady-White Freedom 235 (2016-)"



 August 2016, Soundings - "A Dual Console With Multiple Roles - Freedom 235"



 June 13, 2016, Great Lakes Scuttlebutt - "Brand New 23-foot Dual Console Freedom 235 Reshapes Category"



 June 2, 2016, Boatingmag.com - "Grady-White's new 23-foot dual console Freedom 235"
