Canyon 456
45' CENTER CONSOLE
Re-imagine the luxury sportfishing yacht. Grady-White’s new flagship, the Canyon 456 center console, is incredibly spacious, technically sophisticated, and more richly appointed than any other outboard sportfishing boat. The 456 Grady is crafted with exceptional attention to detail and is superbly engineered for an entirely new level of elegance. It has by far the widest beam in the category and is also the largest unsinkable boat of its kind.

Main Specifications

Beam Amidships

14' (4.27 m)

Center Line Length w/o Engines

45' (13.72 m)

Bridge Clearance

10'5" (3.18 m)

– w/Tower

TBD

Cockpit Depth

28" (0.71 m)

Hull Draft

30" (0.76 m)

Transom Deadrise

Maximum HP

1700 (1268 kW)

Fuel Capacity - Standard

616 gal. (2,332 l)

Weight w/out Engines

24,500 lb. (11,113 kg)





Canyon 456

Standard Features

Images are updated often, but may not always exactly represent the current model

Select camera icons where available to view feature photos

Denotes feature as trademarked, exclusive, patented, or patent pending

Safety
2 automatic bilge pumps (total 4,000 GPH) (15,142 LPH)
Basic flotation
Bow rails - low profile 316 stainless steelBow rails - low profile 316 stainless steel
Captain Grady - digital boat systems and operations guide for iPad and iPhoneCaptain Grady - digital boat systems and operations guide for iPad and iPhone
Cockpit toe railsCockpit toe rails
Composite stringer system & transom - water impervious
Console grab railsConsole grab rails
Fire extinguisher holder
Lean bar grab rails (4)Lean bar grab rails (4)
Nonskid fiberglass linerNonskid fiberglass liner
Self-bailing cockpit w/high-volume scupper systemSelf-bailing cockpit w/high-volume scupper system
Stainless steel through-hull fittingsStainless steel through-hull fittings
Cockpit & Deck
100% hand laid SeaV² hull & deck100% hand laid SeaV² hull & deck
Anchor windlass w/remote switches at helm & windlassAnchor windlass w/remote switches at helm & windlass
Batteries (10)
Battery chargers (3)
Battery select switchesBattery select switches
Bow thrusterBow thruster
Casting platformCasting platform
Cleats - flush mount (pop up)Cleats - flush mount (pop up)
Cockpit bolstersCockpit bolsters
Cockpit freshwater shower (recessed) - aft cockpit shower w/20' Glendinning retractable hose w/hot & cold water mixerCockpit freshwater shower (recessed) - aft cockpit shower w/20' Glendinning retractable hose w/hot & cold water mixer
Cockpit freshwater shower (recessed) - forward shower w/20' Glendinning retractable hoseCockpit freshwater shower (recessed) - forward shower w/20' Glendinning retractable hose
Cockpit lights - blue LEDCockpit lights - blue LED
Cockpit side doors - port and starboard w/boarding ladderCockpit side doors - port and starboard w/boarding ladder
Deck hardware - 316-grade stainless steel through-boltedDeck hardware - 316-grade stainless steel through-bolted
Dockside power w/galvanic isolator & 35' Glendinning retractable shore power cord
Drink holders - stainless steel (12)Drink holders - stainless steel (12)
Electrical system management - CZone® AC & DC digital switchingElectrical system management - CZone® AC & DC digital switching
Electronic display mount - integrated transom mount for up to 24" screensElectronics display mount - integrated transom mount for up to 24" screen
Engine flush system - Reverso® electronic self-cyclingEngine flush system - Reverso® electronic self-cycling
Factory engine pre-rigging
Fish box - 43-qt. (41 l) port bow insulated fish box w/ob drainFish box - 43-qt. (41 l) port bow insulated fish box w/ob drain
Fish box - 123-qt. (116 l) port bow insulated fish box w/ob drainFish box - 123-qt. (116 l) port bow insulated fish box w/ob drain
Fish box - 239-qt. (226 l) starboard bow insulated fish box w/ob drainFish box - 239-qt. (226 l) starboard bow insulated fish box w/ob drain
Fish box - 459-qt. (434 l) aft insulated refrigerator/freezer fish box w/lights, digitally controlled thermostat & ob drainFish box - 459-qt. (434 l) aft insulated refrigerator/freezer fish box w/lights, digitally controlled thermostat & ob drain
Forward bolstersForward bolsters
Fuel capacity - 616-gallon (2,332 l) (2 - 308 gal. tanks)
Generator - 12kW diesel, 30-gallon (114 l) fuel capacityGenerator - 12kW diesel, 30-gallon (114 l) fuel capacity
Helm Master® w/Set Point™ - Yamaha Helm Master Control systemHelm Master® w/Set Point™ - Yamaha Helm Master Control system
Lighting - international LED
Lighting - underwater blue LED (3)Lighting - underwater blue LED (3)
Livewells - port and starboard aft transom 35-gallon (132 l) insulated raw water livewells w/lights, full column distribution inlets & ob drains (1500 GPH) (5678 LPH)Livewells - port and starboard aft transom 35-gallon (132 l) insulated raw water livewells w/lights, full column distribution inlets & ob drains (1500 GPH) (5678 LPH)
Rod holders - cockpit (6), bow (4)Rod holders - cockpit (6), bow (4)
Rod storage - 2 lockable rod pods, holds 2 rods each (4)Rod storage - 2 lockable rod pods, holds 2 rods each (4)
Rod storage racks - horizontal (6)Rod storage racks - horizontal (6)
Rubrail - high density PVC w/stainless steel insertRubrail - high density PVC w/stainless steel insert
Seating - port & starboard fish box cushions w/multi-position, forward & aft facing foldaway backrestsSeating - port & starboard fish box cushions w/multi-position, forward & aft facing foldaway backrests
Stabilizer - Seakeeper® 6 gyroscopic stabilization systemStabilizer - Seakeeper® 6 gyroscopic stabilization system
Stern eyes - heavy-duty 316 stainless steelStern eyes - heavy-duty 316 stainless steel
Storage - forward anchor locker w/rode storage
Tables - electromechanically adjustable fiberglass bow tables (2)Tables - electromechanically adjustable fiberglass bow tables (2)
Trim control - ZipWake® auto-leveling dynamic trim systemTrim control - ZipWake® auto-leveling dynamic trim system
Washdown - pressurized raw waterWashdown - pressurized raw water
Water heater - 11-gallon (42 l) (includes hot water cockpit shower)
Water reservoir - raw water sea chest
Water tank - 80-gallon (303 l) freshwater
Sea Command Center
Accessory outlet - 110V duplexAccessory outlet - 110V duplex
Accessory outlet - 12VAccessory outlet - 12V
Accessory outlet - 5V duplex USB port
Air conditioning - 16,000 BTU w/outlets at helm (4) & aft seats (3)Air conditioning - 16,000 BTU w/outlets at helm (4) & aft seats (3)
Cockpit galley starboard w/grill, stainless steel refrigerator & trash compartmentCockpit galley starboard w/grill, stainless steel refrigerator & trash compartment
CompassCompass
Cooler - 53-qt. (50 l) insulated box w/ob drain (under starboard aft seat)Cooler - 53-qt. (50 l) insulated box w/ob drain (under starboard aft seat)
Drink holders - stainless steel at helm (4) & aft seats (2)Drink holders - stainless steel at helm (4) & aft seats (2)
Footrest - molded console footrestFootrest - molded console footrest
Footrests - fold-down at helm seats (4)Footrests - fold-down at helm seats (4)
Rigging station - port freshwater sink w/up-down swivel faucet and pull-out spray handle, tackle & bulk storageRigging station - port freshwater sink w/up-down swivel faucet and pull-out spray handle, tackle & bulk storage
Seating - aft facing deluxe cushioned seats (3) w/flip-up bolster center & electromechanical footrest/stepSeating - aft facing deluxe cushioned seats (3) w/flip-up bolster center & electromechanical footrest/step
Seating - electrically adjustable deluxe contoured helm captain's chairs w/flip-up bolsters & fold-down armrests (4)Seating - electrically adjustable deluxe contoured helm captain's chairs w/flip-up bolsters & fold-down armrests (4)
Seating - molded forward lounge seat w/arm rests & drink holders (4)Seating - molded forward lounge seat w/arm rests & drink holders (4)
Steering wheel - 316 grade stainless steel Edson wheel w/knobSteering wheel - 316 grade stainless steel Edson wheel w/knob
Stereo - Deluxe stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers w/LED lights - bow (2), T-top (4); subwoofers - cockpit (2)Stereo - Deluxe stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers w/LED lights - bow (2), T-top (4); subwoofers - cockpit (2)
Storage - lockable sliding door w/separate screen door
Storage - portside 3-drawer stainless steel units (2)
Storage - tackle storage under aft-facing center seat w/trays (6) & bulk storage drawers (2)
T-top - AV2 T-top™T-top - AV2 T-top™ - enclosure w/painted aluminum frame, electrically sliding sunroof w/screen and shade, electrically sliding port and starboard side vents, storage net, LED spreader lights (3), tri-colored (red, blue, white) LED recessed lights (6), aft mounted rod holders (10), outrigger plates, SureShade® electrically retractable shade w/Sunbrella® canvas (oyster)

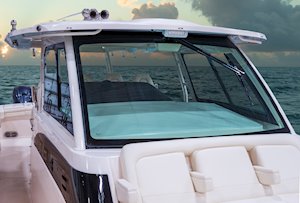

Windshield - wraparound glass integrated w/T-topWindshield - wraparound glass integrated w/T-top
Windshield wiper w/washer - freshwaterWindshield wiper w/washer - freshwater
Console Interior
Accessory outlet - 110V duplex (2)Accessory outlet - 110V duplex (2)
Accessory outlet - 5V duplex USB port (2)Accessory outlet - 5V duplex USB port (2)
Air conditioning - 12,000 BTU w/outlets (3 console, 1 head)Air conditioning - 12,000 BTU w/outlets (3 console, 1 head)
Berth - forward convertible vee berthBerth - forward convertible vee berth
Carbon monoxide monitorCarbon monoxide monitor
Drink holders - stainless steel (4)Drink holders - stainless steel (4)
Forward hatch - low profile acrylic hatch w/retractable screen shade
Galley - portside galley w/Corian® countertop, stainless steel drawer microwave & six-bottle wine coolerGalley - portside galley w/Corian® countertop, stainless steel drawer microwave & six-bottle wine cooler
Galley - starboard galley w/stainless steel sink, Corian® countertop & stove cooktopGalley - starboard galley w/stainless steel sink, Corian® countertop & stove cooktop
Head - enclosed ventilated head area w/lighting, sink, Corian® countertop, shower w/teak grate, mirror, storage cabinet, VacuFlush® marine head w/20-gallon (76 l) holding tank & vertical rod storage (4)Head - enclosed ventilated head area w/lighting, sink, Corian® countertop, shower w/teak grate, mirror, storage cabinet, VacuFlush® marine head w/20-gallon (76 l) holding tank & vertical rod storage (4)
Lighting - dimmable indirect lighting throughoutLighting - dimmable indirect lighting throughout
Refrigerator - stainless steel drawer refrigerator
Rod storage - retractable vertical storage rack under port countertop (4)Rod storage - retractable vertical storage rack under port countertop (4)
Rod storage - port & starboard forward berth Integrated Rod Storage Slides™ - (patent pending) (4)Rod storage - port & starboard forward berth Integrated Rod Storage Slides™ - (patent pending) (4)
Stereo - Deluxe stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers (2) & subwooferStereo - Deluxe stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers (2) & subwoofer
Storage - marine safe w/touchpad entryStorage - marine safe w/touchpad entry
Storage - port and starboard lighted glass shelvesStorage - port and starboard lighted glass shelves
Storage - port cedar-lined closetStorage - port cedar-lined closet
Storage - starboard stainless steel drawers (3)
Storage - underberth compartments (3)
Teak wood floorsTeak wood floors
Windows - port and starboard tinted frameless glass windows w/blinds
Table - solid sapele dinette table w/teak and brushed aluminum inlays & electromechanically adjustable stainless steel base (seats 4)Table - solid sapele dinette table w/teak and brushed aluminum inlays & electromechanically adjustable stainless steel base (seats 4)
TV - cable ready 32" LED TV w/DVD player & audio/visual inputsTV - cable ready 32" LED TV w/DVD player & audio/visual inputs

Optional Features

Options
CE certification package (European Conformity)
Engine paint - Yamaha factory-painted engine(s), pearlescent white or primer (425 HP only)
Hull color - Celestial Blue, Coastal Fog Blue, Sand, Sea Glass or Seaport Blue gelcoat; Cape Grady or Harbor Blue paintHull color - Celestial Blue, Coastal Fog Blue, Sand, Sea Glass or Seaport Blue gelcoat; Cape Grady or Harbor Blue paint
International AC electrical conversion - 220V (50Hz)
Outrigger kit - 22-ft. (6.7m) GEMLUX® carbon fiber outriggers w/polished stainless steel baseOutrigger kit - 22-ft. (6.7m) GEMLUX® carbon fiber outriggers w/polished stainless steel base
Rod storage - removable cockpit storage station w/rod holders (6)Rod storage - removable cockpit storage station w/rod holders (6)
T-top color - underside of T-top (requires matching gelcoat color option)
Canvas Options
T-top side wings and helm enclosure (black or ivory)





CHOOSE AN ENGINE BELOW FOR DETAILED PERFORMANCE SPECS OR SELECT TWO ENGINE PACKAGES TO COMPARE

350 YAMAHA FOUR-STROKE (QUAD)

350 YAMAHA FOUR-STROKE (QUAD)

PERFORMANCE DATA

SELECT TO COMPARE

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (QUAD)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (QUAD)

PERFORMANCE DATA

SELECT TO COMPARE

425 YAMAHA FOUR-STROKE (QUAD)

425 YAMAHA FOUR-STROKE (QUAD)

PERFORMANCE DATA

SELECT TO COMPARE

425 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (QUAD)

425 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (QUAD)

PERFORMANCE DATA

SELECT TO COMPARE

BACK

COMPARE A DIFFERENT ENGINE PACKAGE
350 YAMAHA FOUR-STROKE (QUAD)

350 YAMAHA FOUR-STROKE (QUAD)

Engine Size:

5.3L

Test Date:

1/30/2018

Prop Size*:

15 1/4 X 19 SWS II SDS

Weight as Tested:

31391 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 31.4 MPH @ 3700 RPM

RPM MPH GPH MPG
1000 6.5 7.1 0.91
1500 8.6 10.9 0.79
2000 9.7 18.8 0.51
2500 15.9 26.2 0.61
3000 22.3 36.0 0.62
3500 28.7 44.8 0.64
3700 31.4 48.1 0.65
4000 34.5 55.7 0.62
4500 40.2 68.2 0.59
5000 45.0 83.1 0.54
5500 50.2 112.0 0.45
5900 55.2 137.5 0.40
350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (QUAD)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (QUAD)

Engine Size:

5.3L

Test Date:

1/30/2018

Prop Size*:

15 1/4 X 19 SWS II SDS

Weight as Tested:

31391 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 31.4 MPH @ 3700 RPM

RPM MPH GPH MPG
1000 6.5 7.1 0.91
1500 8.6 10.9 0.79
2000 9.7 18.8 0.51
2500 15.9 26.2 0.61
3000 22.3 36.0 0.62
3500 28.7 44.8 0.64
3700 31.4 48.1 0.65
4000 34.5 55.7 0.62
4500 40.2 68.2 0.59
5000 45.0 83.1 0.54
5500 50.2 112.0 0.45
5900 55.2 137.5 0.40
425 YAMAHA FOUR-STROKE (QUAD)

425 YAMAHA FOUR-STROKE (QUAD)

Engine Size:

5.6L

Test Date:

5/07/2018

Prop Size*:

16 3/8 x 21 XTO OS

Weight as Tested:

31650 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 23.8 MPH @ 3000 RPM

RPM MPH GPH MPG
1000 7.0 7.8 0.89
1500 9.4 10.4 0.91
2000 11.4 16.0 0.71
2500 16.1 24.7 0.65
3000 23.8 33.7 0.70
3500 30.1 44.0 0.68
4000 36.8 57.2 0.64
4500 43.4 76.0 0.57
5000 48.7 93.3 0.52
5500 53.4 120.2 0.44
6000 58.0 146.6 0.40
425 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (QUAD)

425 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (QUAD)

Engine Size:

5.6L

Test Date:

5/07/2018

Prop Size*:

16 3/8 x 21 XTO OS

Weight as Tested:

31650 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 23.8 MPH @ 3000 RPM

RPM MPH GPH MPG
1000 7.0 7.8 0.89
1500 9.4 10.4 0.91
2000 11.4 16.0 0.71
2500 16.1 24.7 0.65
3000 23.8 33.7 0.70
3500 30.1 44.0 0.68
4000 36.8 57.2 0.64
4500 43.4 76.0 0.57
5000 48.7 93.3 0.52
5500 53.4 120.2 0.44
6000 58.0 146.6 0.40

BACK

VIEW SPECS FOR A DIFFERENT ENGINE PACKAGE
350 YAMAHA FOUR-STROKE (QUAD)

350 YAMAHA FOUR-STROKE (QUAD)

Engine Size:

5.3L

Test Date:

1/30/2018

Prop Size*:

15 1/4 X 19 SWS II SDS

Weight as Tested:

31391 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 31.4 MPH @ 3700 RPM

RPM MPH GPH MPG
1000 6.5 7.1 0.91
1500 8.6 10.9 0.79
2000 9.7 18.8 0.51
2500 15.9 26.2 0.61
3000 22.3 36.0 0.62
3500 28.7 44.8 0.64
3700 31.4 48.1 0.65
4000 34.5 55.7 0.62
4500 40.2 68.2 0.59
5000 45.0 83.1 0.54
5500 50.2 112.0 0.45
5900 55.2 137.5 0.40
350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (QUAD)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (QUAD)

Engine Size:

5.3L

Test Date:

1/30/2018

Prop Size*:

15 1/4 X 19 SWS II SDS

Weight as Tested:

31391 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 31.4 MPH @ 3700 RPM

RPM MPH GPH MPG
1000 6.5 7.1 0.91
1500 8.6 10.9 0.79
2000 9.7 18.8 0.51
2500 15.9 26.2 0.61
3000 22.3 36.0 0.62
3500 28.7 44.8 0.64
3700 31.4 48.1 0.65
4000 34.5 55.7 0.62
4500 40.2 68.2 0.59
5000 45.0 83.1 0.54
5500 50.2 112.0 0.45
5900 55.2 137.5 0.40
425 YAMAHA FOUR-STROKE (QUAD)

425 YAMAHA FOUR-STROKE (QUAD)

Engine Size:

5.6L

Test Date:

5/07/2018

Prop Size*:

16 3/8 x 21 XTO OS

Weight as Tested:

31650 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 23.8 MPH @ 3000 RPM

RPM MPH GPH MPG
1000 7.0 7.8 0.89
1500 9.4 10.4 0.91
2000 11.4 16.0 0.71
2500 16.1 24.7 0.65
3000 23.8 33.7 0.70
3500 30.1 44.0 0.68
4000 36.8 57.2 0.64
4500 43.4 76.0 0.57
5000 48.7 93.3 0.52
5500 53.4 120.2 0.44
6000 58.0 146.6 0.40
425 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (QUAD)

425 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (QUAD)

Engine Size:

5.6L

Test Date:

5/07/2018

Prop Size*:

16 3/8 x 21 XTO OS

Weight as Tested:

31650 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 23.8 MPH @ 3000 RPM

RPM MPH GPH MPG
1000 7.0 7.8 0.89
1500 9.4 10.4 0.91
2000 11.4 16.0 0.71
2500 16.1 24.7 0.65
3000 23.8 33.7 0.70
3500 30.1 44.0 0.68
4000 36.8 57.2 0.64
4500 43.4 76.0 0.57
5000 48.7 93.3 0.52
5500 53.4 120.2 0.44
6000 58.0 146.6 0.40
Reviews

October 18, 2018 BD Outdoors.com

"Yamaha Helm Master—Do You Want It, Do You Need It?"

Download PDF

October 2018 Sport Fishing

"Grady Canyon 456 A Luxury Center-Console with Advanced Fishability"

Download PDF

August 2018 Great Lakes Boating

"Canyon 456: So this is what 1700 horses feels like"

Download PDF

August 2018 Yachting

"Canyon 456 - Great White"

Download PDF

July 9, 2018 boats.com

"Grady-White Canyon 456: Boat of the Month Sit‑Down with Center Consoles Only"

Download PDF

July 2018 Salt Water Sportsman

"Grady-White Canyon 456 First Look"

Download PDF

June 15, 2018 Sportfishingmag.com

"Grady-White Canyon 456 First Glance"

Download PDF

June 2018 Sport Fishing

"Grady-White Canyon 456"

Download PDF

May / June 2018 Florida Sport Fishing

"Grady-White 456 Luxury Sport Fishing Reimagined"

Download PDF

May 2018 Power & Motoryacht

"New Boat: Grady-White 456"

Download PDF

April 11, 2018 powerandmotoryacht.com

"First Look: Grady-White 456"

Download PDF

March 2018 boattest.com

"Grady-White Canyon 456"

Download PDF

March 22, 2018 Great Lakes Scuttlebutt

A New Dimension in Luxury Sportfishing Yachts

Download

March 14, 2018 onthewater.com

"First Look: Grady-White 45-Foot Canyon 456 Luxury Sportfishing Yacht"

Download PDF

March-April 2018 Big Game Fishing Journal

Tackle storage is spacious and portside there's a sink with an adjustable pull-out faucet…

Download PDF

February 26, 2018 FishTalkMag.com

"The biggest Grady-White ever: the Canyon 456"

Download PDF

February 19, 2018 sportfishingmag.com

"Canyon 456, Grady-White's newest flagship"

Download PDF
