Canyon 386
37' CENTER CONSOLE
Experience more style, performance, comfort, space, and features than any other center console of its size on this spectacular 37-foot boat. The extra wide beam on the Canyon 386 provides room for four deluxe contoured helm chairs behind the wraparound windshield, an expansive cockpit with a lean bar full of conveniences, and a true weekend cabin with separate head area. Whether your priority is hardcore fishing or making memories with family and friends, this ruggedly luxurious boat does it all!
Photo Gallery

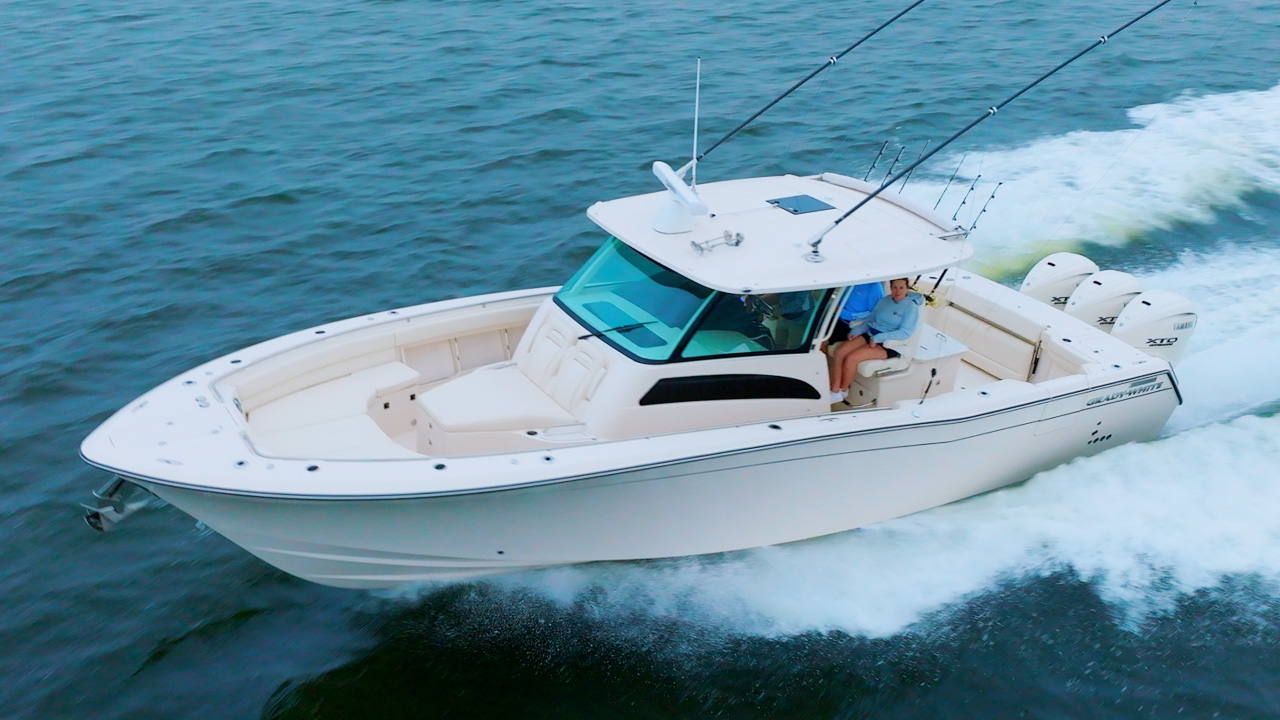

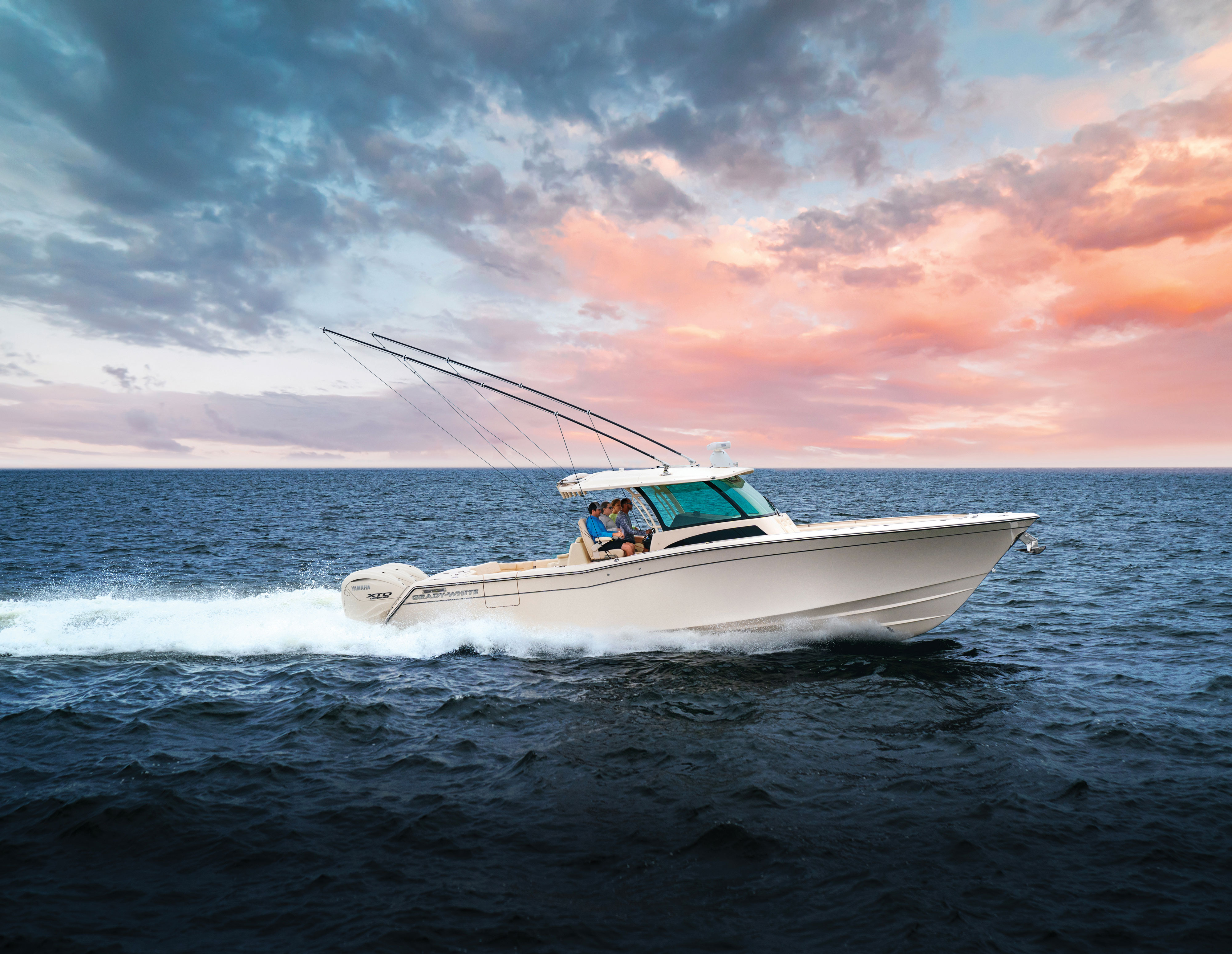

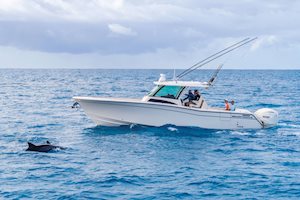

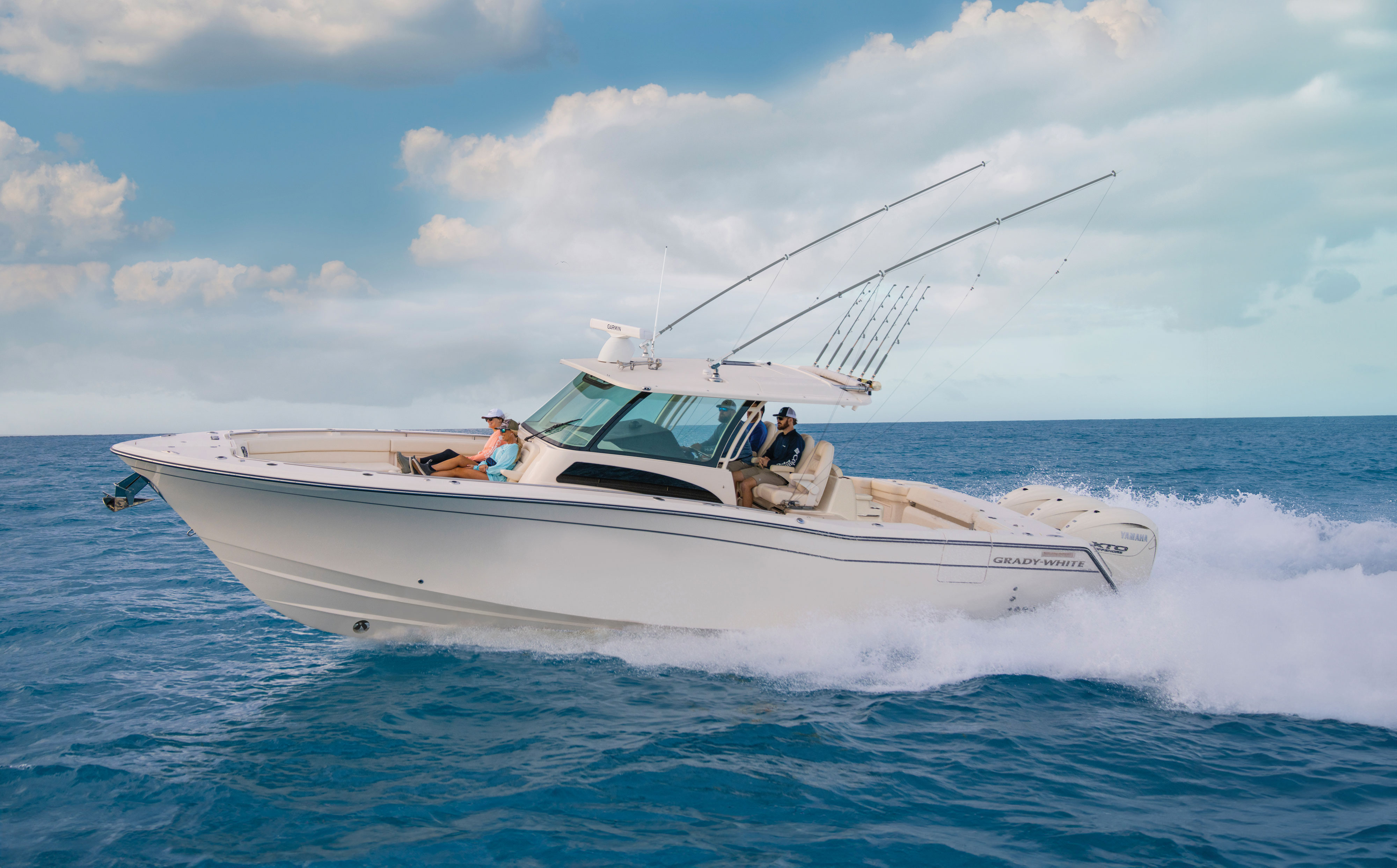

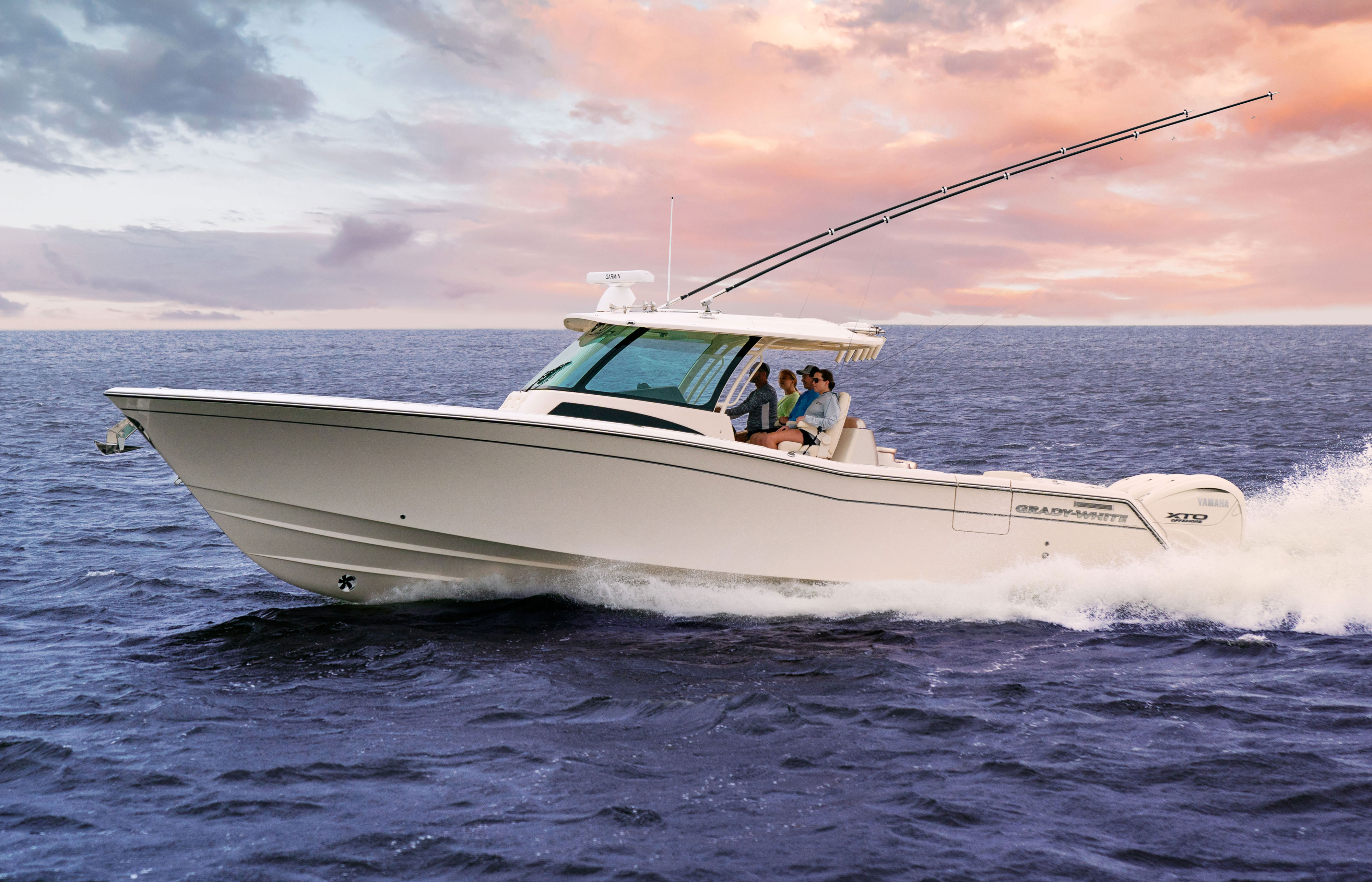

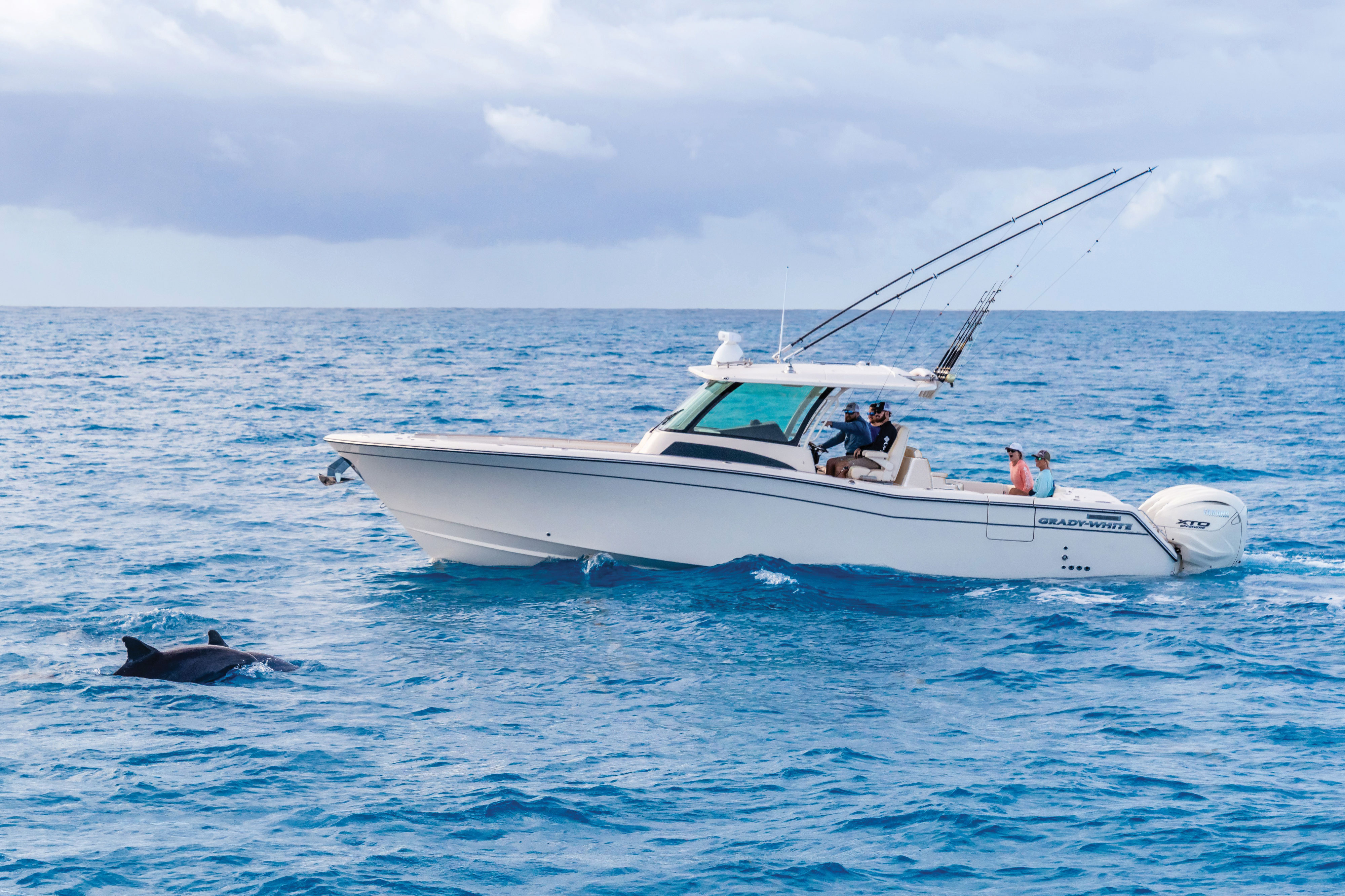

Grady-White Canyon 386 running with port side showing

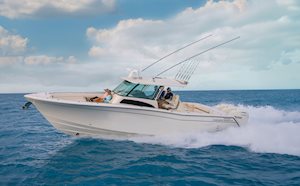

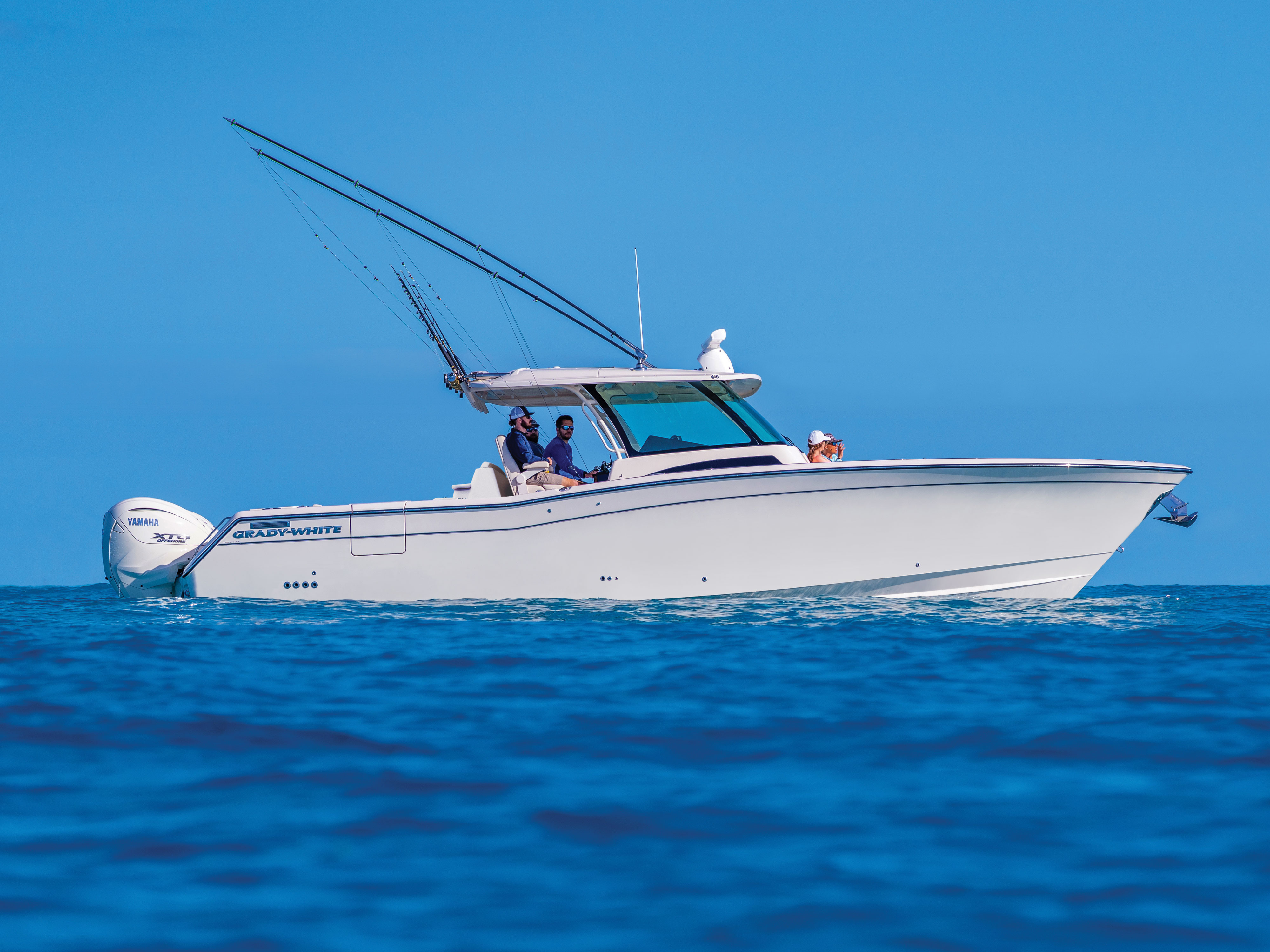

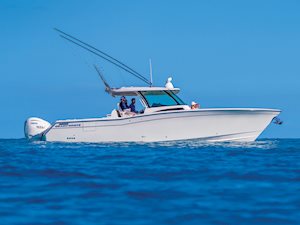

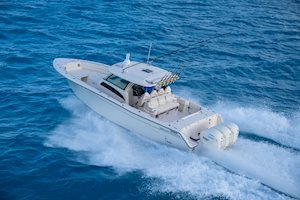

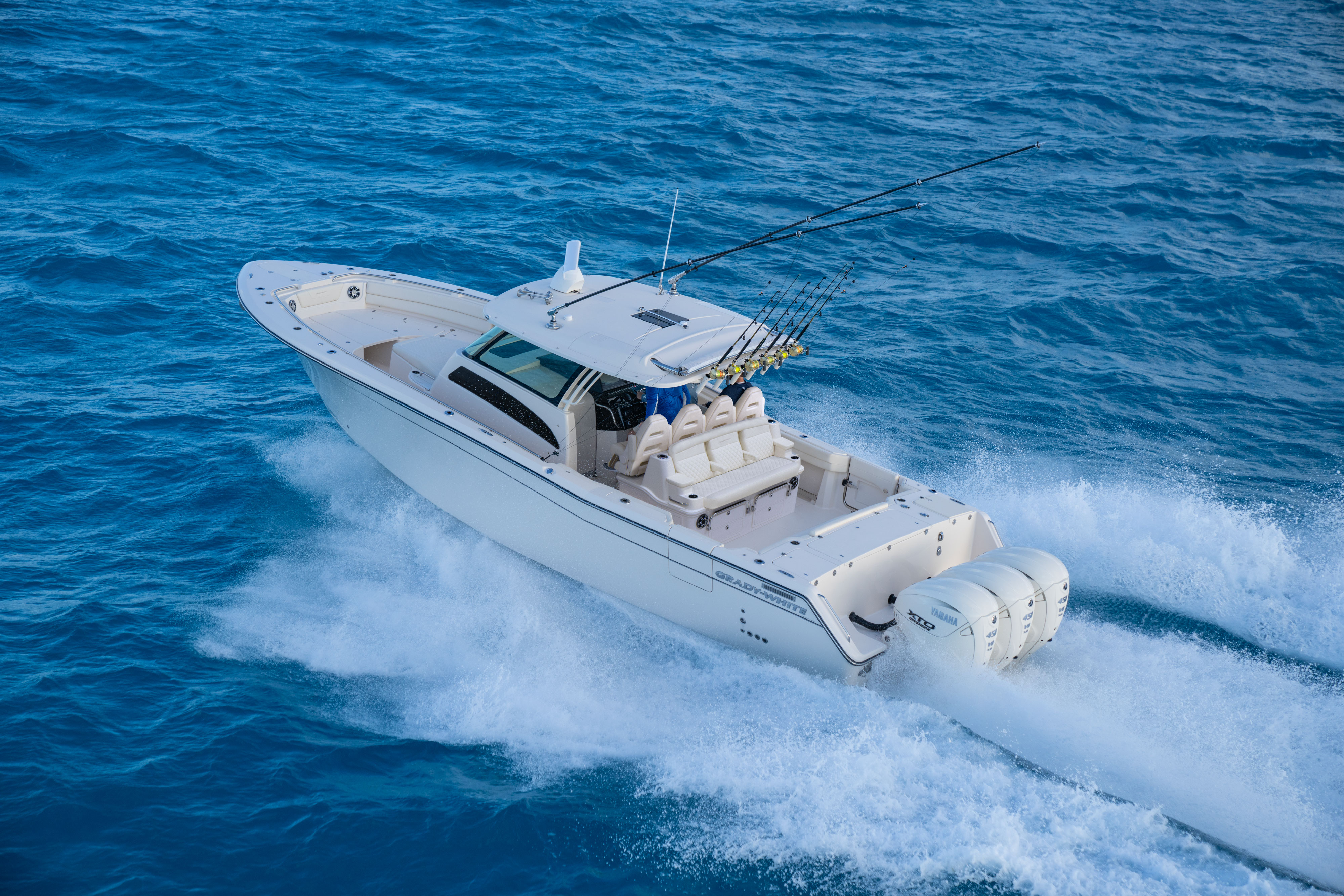

Grady-White Canyon 386 running with starboard side showing
Grady-White Canyon 386 Cockpit
Grady-White Canyon 386 aft livewells and fish box

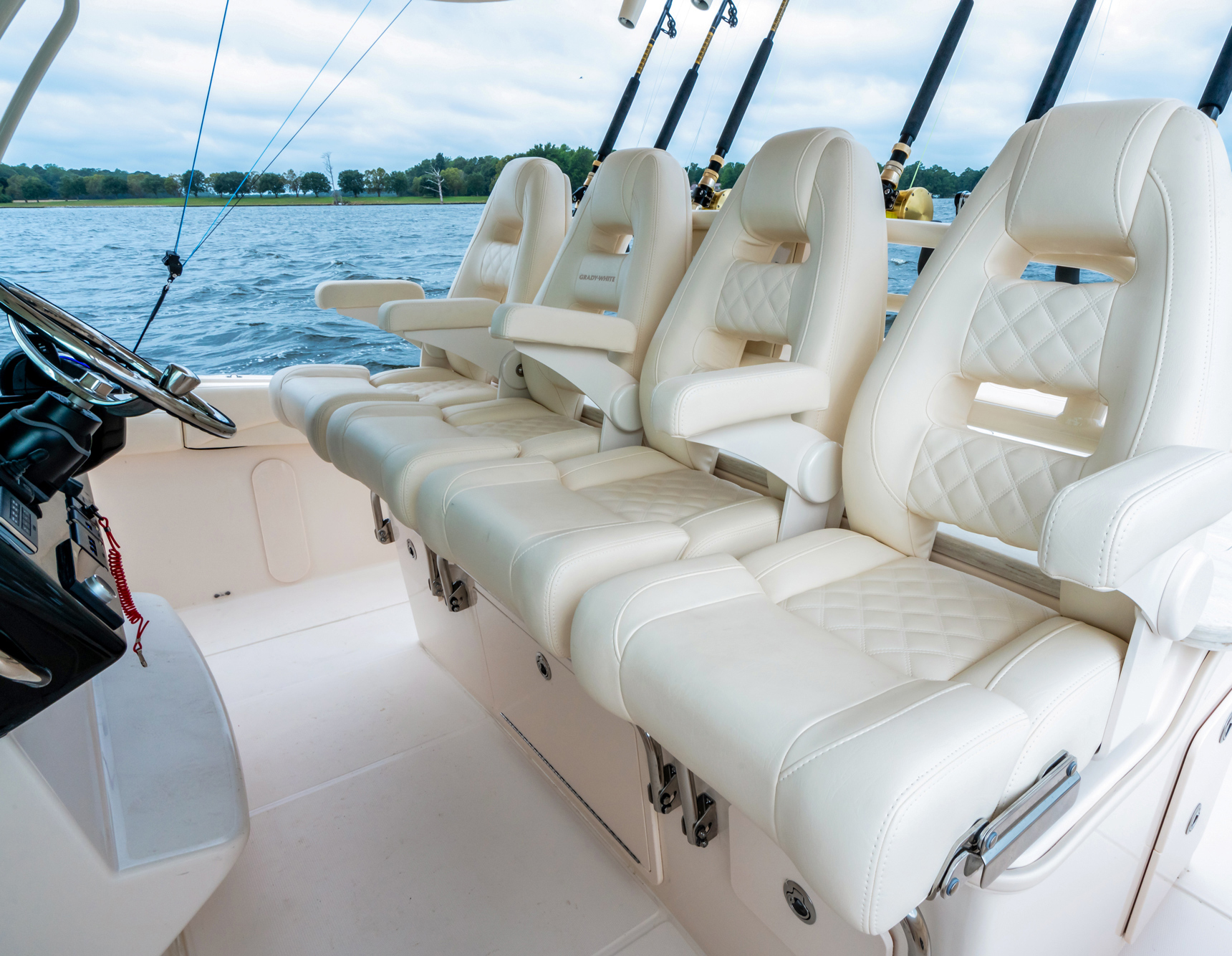

Grady-White Canyon 386 Helm Seats
Grady-White Canyon 386 Rigging Station
Grady-White Canyon 386 Rigging Station showing sink, grill, and storage
Grady-White Canyon 386 bow table
Grady-White Canyon 386 bow seating
Grady-White Canyon 386 console forward seating
Grady-White Canyon 386 forward console seat
Grady-White Canyon 386 helm and steering wheel
Grady-White Canyon 386 console interior
Grady-White Canyon 386 port side of console interior with rod holders and TV
Grady-White Canyon 386 starboard side of console interior showing head, sink, microwave, and refrigerator
Grady-White Canyon 386 head
Grady-White Canyon 386 console interior facing aft
Canyon 386 Main Specifications
Beam Amidships
13'2" (4.01 m)
Center Line Length w/o Engines
36' 6" (11.13 m)
Bridge Clearance
9' 3" (2.83 m)
Weight w/o Engines
14,950 lb. (6781 kg)
Cockpit Depth
28" (0.71 m)
Hull Draft
28" (0.71 m)
Transom Deadrise
20 degrees (SeaV2® progression)
Maximum HP
1350 (1007 kW)
Fuel Capacity - Standard
410 gal. (1552 l)
Canyon 386 Features & Options
Select camera icons where available to view feature photos
Denotes feature as trademarked, exclusive, patented, or patent pending
Automatic bilge pumps (2) (total 3000 GPH) (11,356 LPH)
Basic flotation
Bow grab rail - low profile 316 grade stainless steel
Cockpit stainless steel toe rails
Composite stringer system & transom - water impervious
Fire extinguisher holder
Nonskid fiberglass liner
Self-bailing cockpit w/grated stainless steel cockpit drains (4)
Stainless steel through-hull fittings
Yamaha Siren Marine Vessel Monitoring System
100% hand laid SeaV² hull & deck
Anchor windlass w/remote switches at helm & windlass
Batteries (5) w/ Yamaha Battery Management system (4)
Bow thruster
Cleats - flush mount (pull up) (6)
Cockpit bolsters
Cockpit freshwater shower w/hot & cold mixer (recessed)
Cockpit lights - blue LED
Cockpit side doors - port & starboard w/boarding ladder
Deck hardware - 316 grade stainless steel through-bolted
Dockside power w/galvanic isolator
Drink holders - stainless steel (8)
Engine flush system w/hose attachment aft (one per engine)
Engine platform - easy deck access to outboard engines
Factory engine pre-rigging
Fender cleats - Phender Pro™ quick release (4)
Fish box - 149-qt. (141 l) port & starboard insulated fish box w/ob drain (2)
Fish box - 291-qt. (275.4 l) aft insulated fish box w/lights (2) & ob drain & refrigerator/freezer w/digitally controlled thermostat
Forward bolsters
Generator - 5 kW diesel, 23-gal (87 l) fuel capacity
Hydraulic trim tabs w/indicator & retractor
International lighting
Lighting - indirect under gunwale
Lighting - underwater blue LED (4)
Livewells - aft transom, port & starboard 35-gallon (132 l) insulated raw water livewells w/lights, full column distribution inlets & ob drains (1500 GPH) (5678 LPH)
Rod holders - cockpit (4), bow (6)
Rod storage racks - horizontal (4)
Rubrail - high density PVC w/stainless steel insert

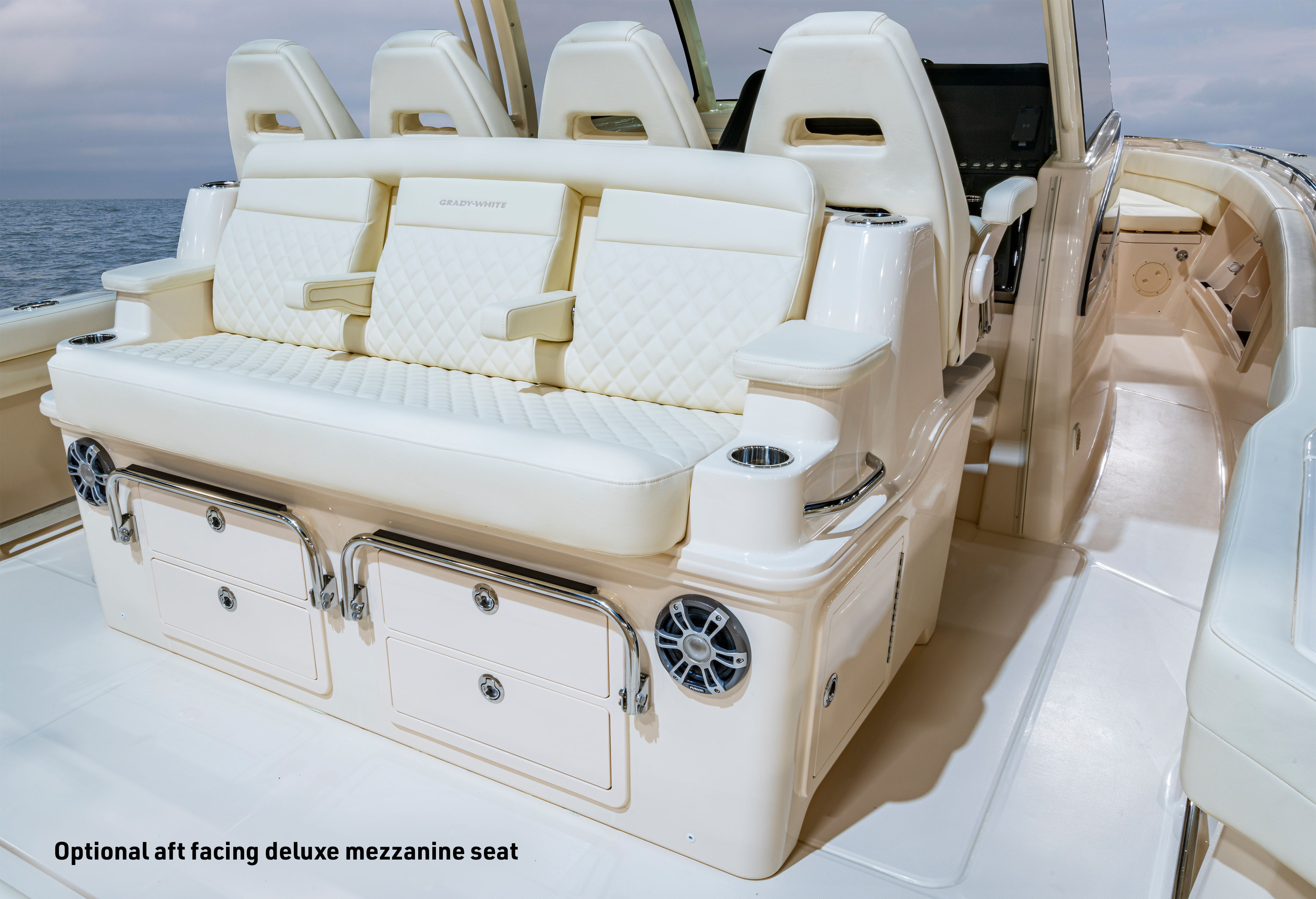

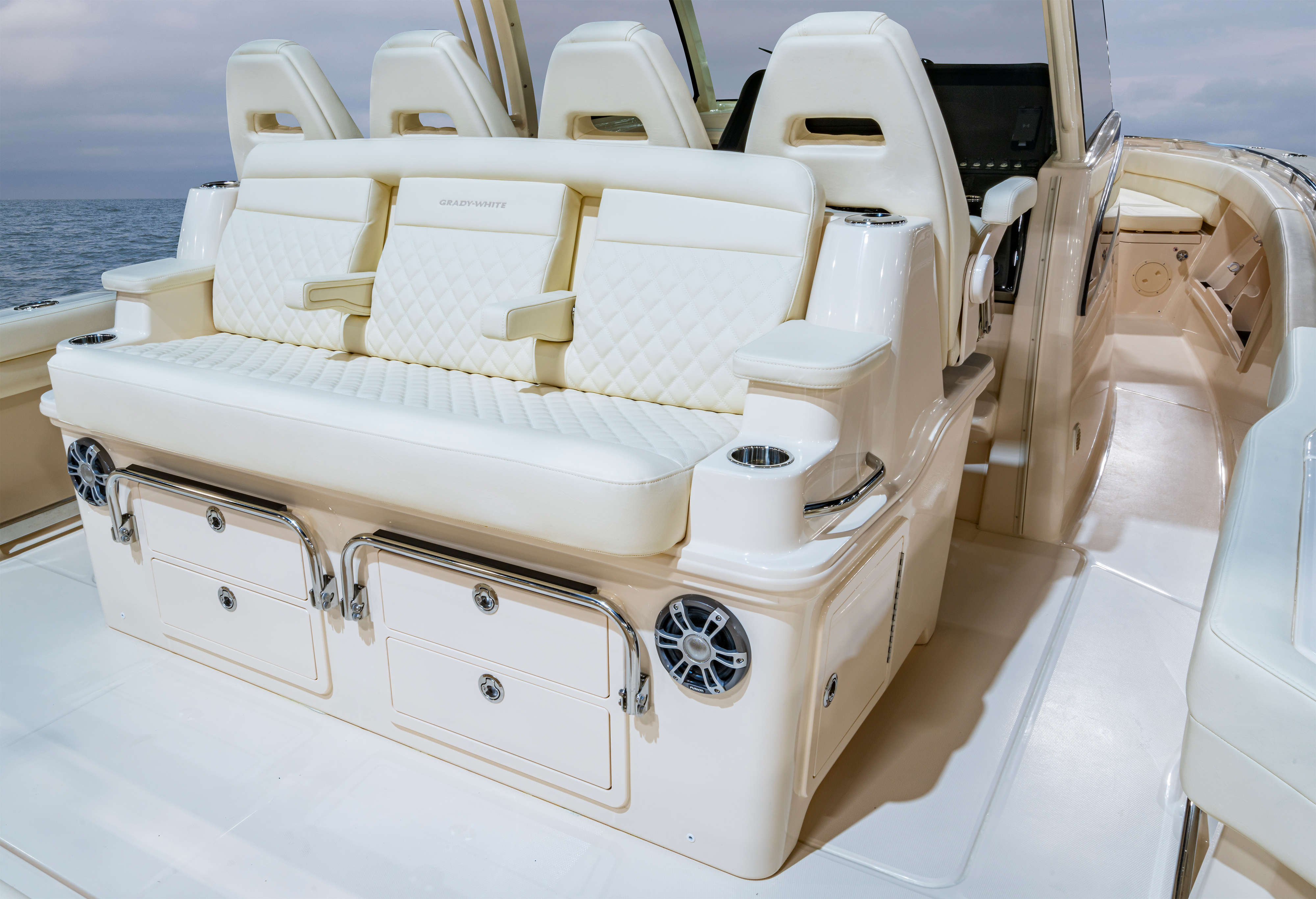

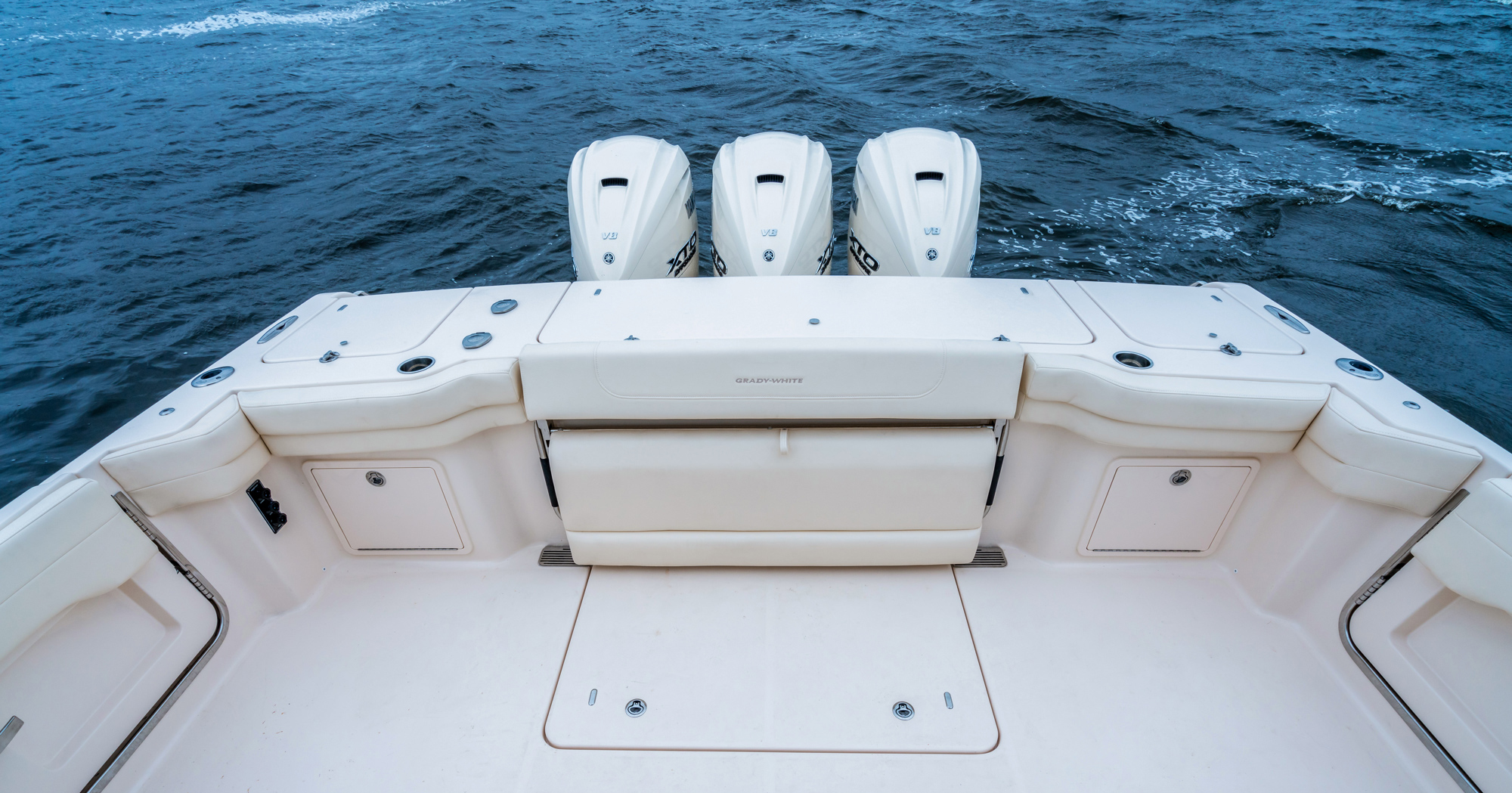

Seating - foldaway aft bench seat w/cushion
Seating - port & starboard bow seating w/forward facing electrically operated backrests (2)
Stabilizer - Seakeeper® 5 gyroscopic stabilization system
Stereo - Deluxe stereo system w/waterproof touch screen display, AM/FM tuner, Wi-Fi & Bluetooth® connectivity, helm subwoofer & remote unit; speakers w/LED lights - bow (2), console interior (2), cockpit (2), T-top (2)
Stern eyes - 316 grade stainless steel
Storage - aft transom lockable units w/tackle trays (2)
Storage - forward anchor locker w/rode storage
Washdown - freshwater forward and aft
Washdown - pressurized raw water (forward & aft) w/hose
Water heater - 6-gallon (22.7 l) (includes hot water cockpit shower)
Water tank - 44-gallon (166.6 l) freshwater
Accessory outlet - 5V duplex USB port and starboard
Accessory outlet - 12V
Compass
Console grab rail
Door - helm entry, lockable, sliding acrylic console door
Drink holders - stainless steel at helm (4)
Flush mount electronics area
Footrest - molded console footrest
Phone charger (wireless) - helm-mounted
Seating - forward console cushioned, contoured luxury lounge w/armrests (3)
Steering - Helm Master® EX w/Full Maneuverability
Steering wheel - 316 grade stainless steel w/knob
Storage - large drawers under luxury lounge (2)
T-top - integrated painted aluminum frame w/radio box, hatch, storage net, LED spreader lights (3), bi-colored (blue, white) LED recessed lights (4), outrigger plates, aft mounted rod holders (6), SureShade® electrically retractable shade with Sunbrella® canvas (oyster) & wing curtains (ivory)
Window - tinted frameless glass port & starboard
Windshield - laminated glass integrated w/T-top w/electromechanically operated center vent
Windshield wiper w/washer
Accessory outlet - 5V duplex USB/USBC port
Accessory outlet - 110V duplex - berth & head
Air conditioning - 10,000 BTU w/outlets at console (2) & at helm (2)
Berth - forward cushioned double berth w/teak-lined side storage shelves
Carbon monoxide detector
Drink holders - stainless steel (2)
Galley - starboard side w/Corian® countertop with stainless steel sink, storage, wood cabinets w/glass shelves & microwave
Head - ventilated enclosed lockable stand-up head area, mirror, shower, storage drawer, sink w/Corian® counter surface, VacuFlush® head w/freshwater supply, 10-gallon (38 l) holding tank, overboard discharge & deck pump out
Lighting - indirect lighting in berth and galley
Lighting - tinted glass skylight
Refrigerator - stainless steel drawer-style
Rod storage - Horizontal (4), vertical (4)
Storage - port side Corian® countertop w/stainless steel retainer and below counter storage drawers (2)
Table - cherry dinette w/removable stainless steel base to convert berth
Teak sole
TV - 24" LED flat screen w/HDMI inlet
Water level indicator gauge
Drink holders - stainless steel (4)
Grab rail - aft facing
Lighting - indirect under lean bar
Rigging station w/Corian countertop, freshwater sink, trash bin, knife and plier holder, storage with drain or optional grill
Rod holders (6)
Seating - lean bar-mounted Command Elite helm chairs (4) horizontally adjustable w/deluxe cushioning & flip-up bolsters & fold-down arm and footrests
Storage - knife, plier, and lure holder (starboard)
Storage - lockable bulk storage drawers port side (2), and aft facing (2)
Storage - under seat drawers (2)
CE certification package (European Conformity)
Grill - 1300W (replaces lean bar storage)
Hull color - Celestial Blue, Coastal Fog, Ocean Mist, or Sea Glass gelcoat
International AC electrical conversion - 220V (50Hz)
Outrigger kit - 18-ft. (5.5 m) GEMLUX® carbon fiber outriggers w/polished stainless steel base
Table - electrically adjustable fiberglass bow table package (converts to forward platform w/cushion)
T-top color - underside of fiberglass T-top (requires matching gelcoat hull color option)
Easy up bow shade (ivory mesh)
T-top canvas helm enclosure (ivory)
Canyon 386 Performance Data
450 Yamaha Four-Stroke
Triple
Top Speed: 60.4 MPH @ 6000 RPM
Optimum Cruise: 30.0 MPH @ 3300 RPM
GPH at Optimum Cruise: 30.3
MPG at Optimum Cruise: 1.0
CLASSIC WHITE
Standard
450 Yamaha Four-Stroke
Triple
Engine Size
5.6L
Test Date
9/14/23
Prop Size
16 3/8 X 21 XTO SDS
Weight as Tested
19884 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop
Yes
Bow Pulpit
No
Bottom Paint
No
Optimum Cruise
30.0 MPH @ 3300 RPM
| RPM | MPH | GPH | MPG |
|---|---|---|---|
| 1000 | 6.6 | 5.4 | 1.22 |
| 1500 | 9.0 | 8.9 | 1.01 |
| 2000 | 10.7 | 14.7 | 0.73 |
| 2500 | 16.9 | 20.3 | 0.83 |
| 3000 | 25.7 | 27.0 | 0.95 |
| 3300 | 30.0 | 30.3 | 1.0 |
| 3500 | 32.4 | 34.2 | 0.95 |
| 4000 | 38.9 | 45.4 | 0.86 |
| 4500 | 44.3 | 60.4 | 0.73 |
| 5000 | 49.8 | 76.8 | 0.65 |
| 5500 | 55.3 | 96.9 | 0.57 |
| 6000 | 60.4 | 117.2 | 0.52 |
450 Yamaha Four-Stroke
Triple
Engine Size
5.6L
Test Date
9/14/23
Prop Size
16 3/8 X 21 XTO SDS
Weight as Tested
19884 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop
Yes
Bow Pulpit
No
Bottom Paint
No
Optimum Cruise
30.0 MPH @ 3300 RPM
| RPM | MPH | GPH | MPG |
|---|---|---|---|
| 1000 | 6.6 | 5.4 | 1.22 |
| 1500 | 9.0 | 8.9 | 1.01 |
| 2000 | 10.7 | 14.7 | 0.73 |
| 2500 | 16.9 | 20.3 | 0.83 |
| 3000 | 25.7 | 27.0 | 0.95 |
| 3300 | 30.0 | 30.3 | 1.0 |
| 3500 | 32.4 | 34.2 | 0.95 |
| 4000 | 38.9 | 45.4 | 0.86 |
| 4500 | 44.3 | 60.4 | 0.73 |
| 5000 | 49.8 | 76.8 | 0.65 |
| 5500 | 55.3 | 96.9 | 0.57 |
| 6000 | 60.4 | 117.2 | 0.52 |
