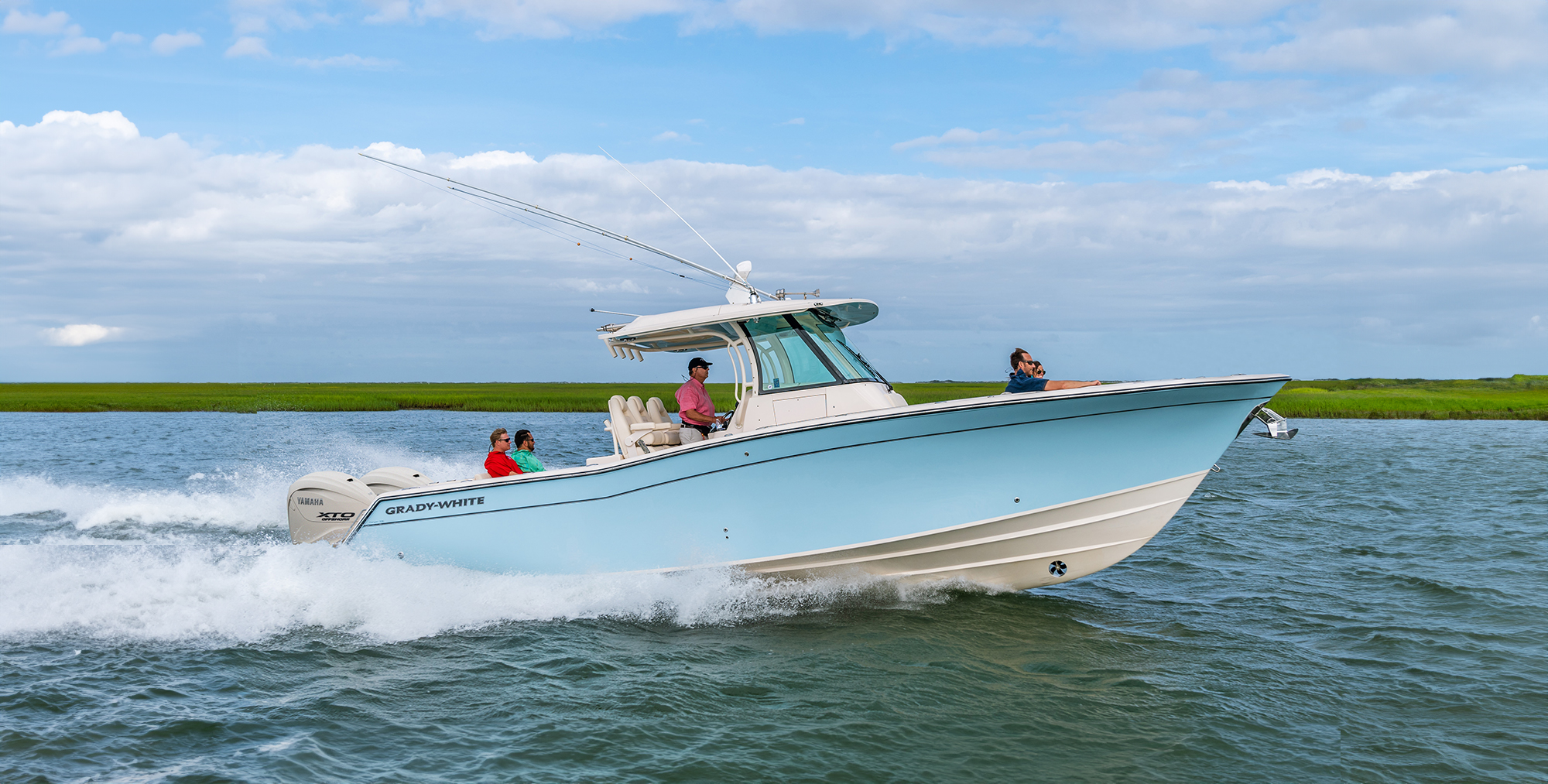

Canyon 336
33' CENTER CONSOLE
Ride and the solid offshore sport fishing capability of the beamy Canyon 336 make this 33-foot center console stand out in its class. The 336 has innovative helm seating, a huge cockpit, and a big console with berth. Attention to detail makes the Canyon 336 a highly functional and desirable saltwater sport fishing machine.

Main Specifications

Beam Amidships

11'7" (3.53 m)

Center Line Length w/o Engines

33'6" (10.21 m)

Bridge Clearance

9'1" (2.77 m)

Cockpit Depth
29" (0.74 m)
Hull Draft
25" (0.64 m)

Transom Deadrise

Maximum HP
900 (671 kW)

Fuel Capacity - Standard

333 gal. (1260 l)

Weight w/o Engines
9200 lb. (4173 kg)




Canyon 336

Standard Features

Images are updated often, but may not always exactly represent the current model

Select camera icons where available to view feature photos

Denotes feature as trademarked, exclusive, patented, or patent pending

Safety
2 automatic bilge pumps (total 3000 GPH) (11356 LPH)
Basic flotation
Bow rail - low profile 316 grade stainless steelBow rail - low profile 316 grade stainless steel
Captain Grady - digital boat systems and operations guide for iPad and iPhoneCaptain Grady - digital boat systems and operations guide for iPad and iPhone
Cockpit toe railsCockpit toe rails
Composite stringer system & transom - water impervious
Console grab rail (2)Console grab rail (2)
Fire extinguisher holderFire extinguisher holder
Nonskid fiberglass linerNonskid fiberglass liner
Self-bailing cockpit w/cockpit drains (6)Self-bailing cockpit w/cockpit drains (6)
Stainless steel through-hull fittingsStainless steel through-hull fittings

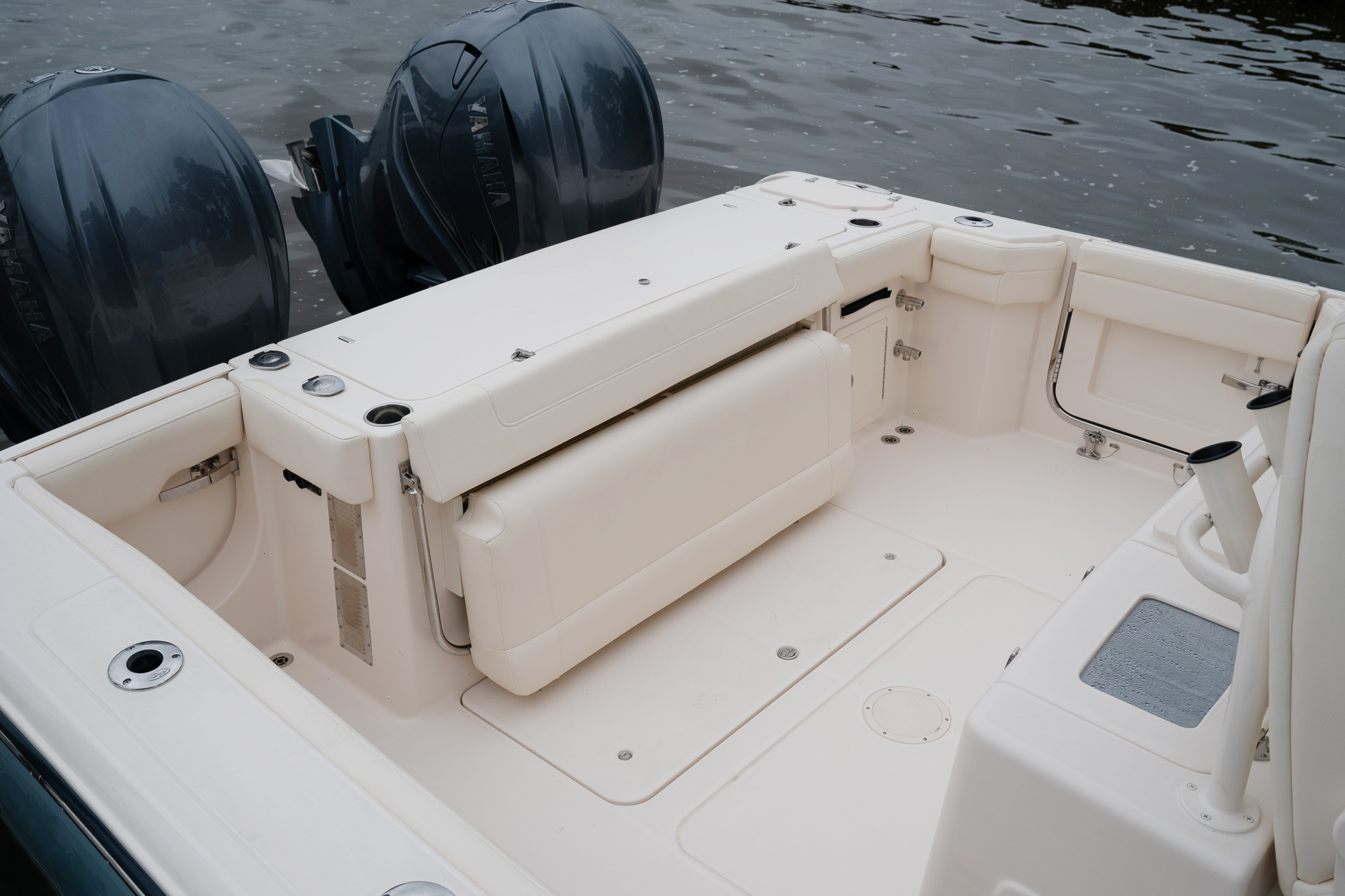

Cockpit & Deck
100% hand laid SeaV² hull & deck100% hand laid SeaV² hull & deck
Anchor windlass w/remote switches at helm & windlassAnchor windlass w/remote switches at helm & windlass
Battery charger
Battery select switchBattery select switch
Cleats - flush mount (pop up)Cleats - flush mount (pop up)
Cockpit bolstersCockpit bolsters
Cockpit freshwater shower (recessed)Cockpit freshwater shower (recessed)
Cockpit lights - blue LEDCockpit lights - blue LED
Cutting boards (2)Cutting boards (2)

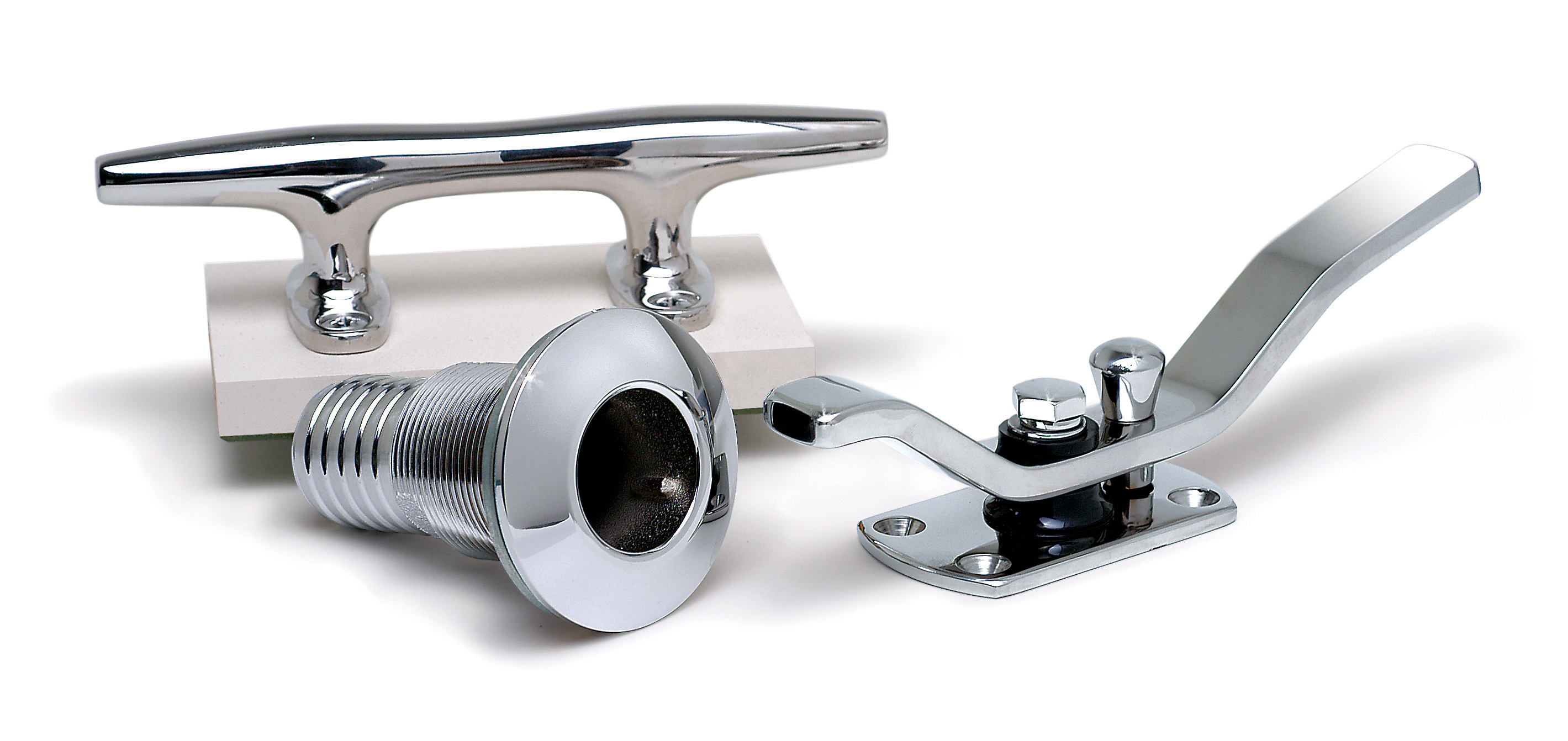

Deck hardware - 316 grade stainless steel through-boltedDeck hardware - 316 grade stainless steel through-bolted
Dockside power w/galvanic isolatorDockside power w/galvanic isolator
Drink holders - stainless steel (7)Drink holders - stainless steel (7)
Engine flush system w/hose attachment aft (one per engine)Engine flush system w/hose attachment aft (one per engine)
Factory engine pre-rigging
Fish box - 165-qt. (156.1 l) port & starboard insulated fish boxes w/ob drainFish box - 165-qt. (156.1 l) port & starboard insulated fish boxes w/ob drain
Fish box - 291-qt. (275.4 l) aft insulated fish box w/lights (2) & ob drainFish box - 291-qt. (275.4 l) aft insulated fish box w/lights (2) & ob drain
Forward bolstersForward bolsters
Fuel capacity - 333-gallon (1260 l) tank
Hydraulic trim tabs w/indicator & retractorHydraulic trim tabs w/indicator & retractor
Integrated outboard mounting system w/swim platform & ladderIntegrated outboard mounting system w/swim platform & ladder
International lighting
Rod holders - cockpit (6), amidships (2), bow (4)Rod holders - cockpit (6), amidships (2), bow (4)
Rod storage racks - horizontal (6)Rod storage racks - horizontal (6)
Rubrail - high density PVC w/stainless steel insertRubrail - high density PVC w/stainless steel insert
Seating - fold away aft bench seat w/cushionSeating - fold away aft bench seat w/cushion
Seating - port & starboard fish box cushionsSeating - port & starboard fish box cushions
Stern eyes - heavy-duty 316 stainless steelStern eyes - heavy-duty 316 stainless steel
Storage - aft transom drop in boxStorage - aft transom drop in box
Storage - forward anchor locker w/rode storageStorage - forward anchor locker w/rode storage
Storage netsStorage nets
Transom door - fiberglassTransom door - fiberglass
Washdown - freshwater (2)Washdown - freshwater (2)
Washdown - pressurized raw water w/hose (2)Washdown - pressurized raw water w/hose (2)
Water tank - 44-gallon (166.6 l) freshwater
Console
Accessory outlet - 12V (2)Accessory outlet - 12V (2)
Accessory outlet - 5V duplex USB portAccessory outlet - 5V duplex USB port
CompassCompass
Console ventilatorConsole ventilator
Drink holders - stainless steel (2)Drink holders - stainless steel (2)
FootrestFootrest
Seating - molded forward console seat w/cushion (3)Seating - molded forward console seat w/cushion (3)
Steering - hydraulic tilt w/power assist (n/a with Yamaha Helm Master control)
Steering wheel - 316 grade stainless steel w/knobSteering wheel - 316 grade stainless steel w/knob
Storage - electromechanically operated electronics enclosureStorage - electromechanically operated electronics enclosure
Storage - lockable acrylic console doorStorage - lockable acrylic console door
Storage - under footrestStorage - under footrest
T-top (fiberglass) w/painted aluminum frame, radio box, storage net, dome light, fore/aft spreader lights, rod holders (5), radar flat & outrigger platesT-top (fiberglass) w/painted aluminum frame, radio box, storage net, dome light, fore/aft spreader lights, rod holders (5), radar flat & outrigger plates
Window - opening window w/screenWindow - opening window w/screen
Windshield - tempered glassWindshield - tempered glass
Windshield wiper - pantograph w/washerWindshield wiper - pantograph w/washer
Console Interior
Accessory outlet - 5V duplex USB portAccessory outlet - 5V duplex USB port
Berth - cushioned berth forwardBerth - cushioned berth forward

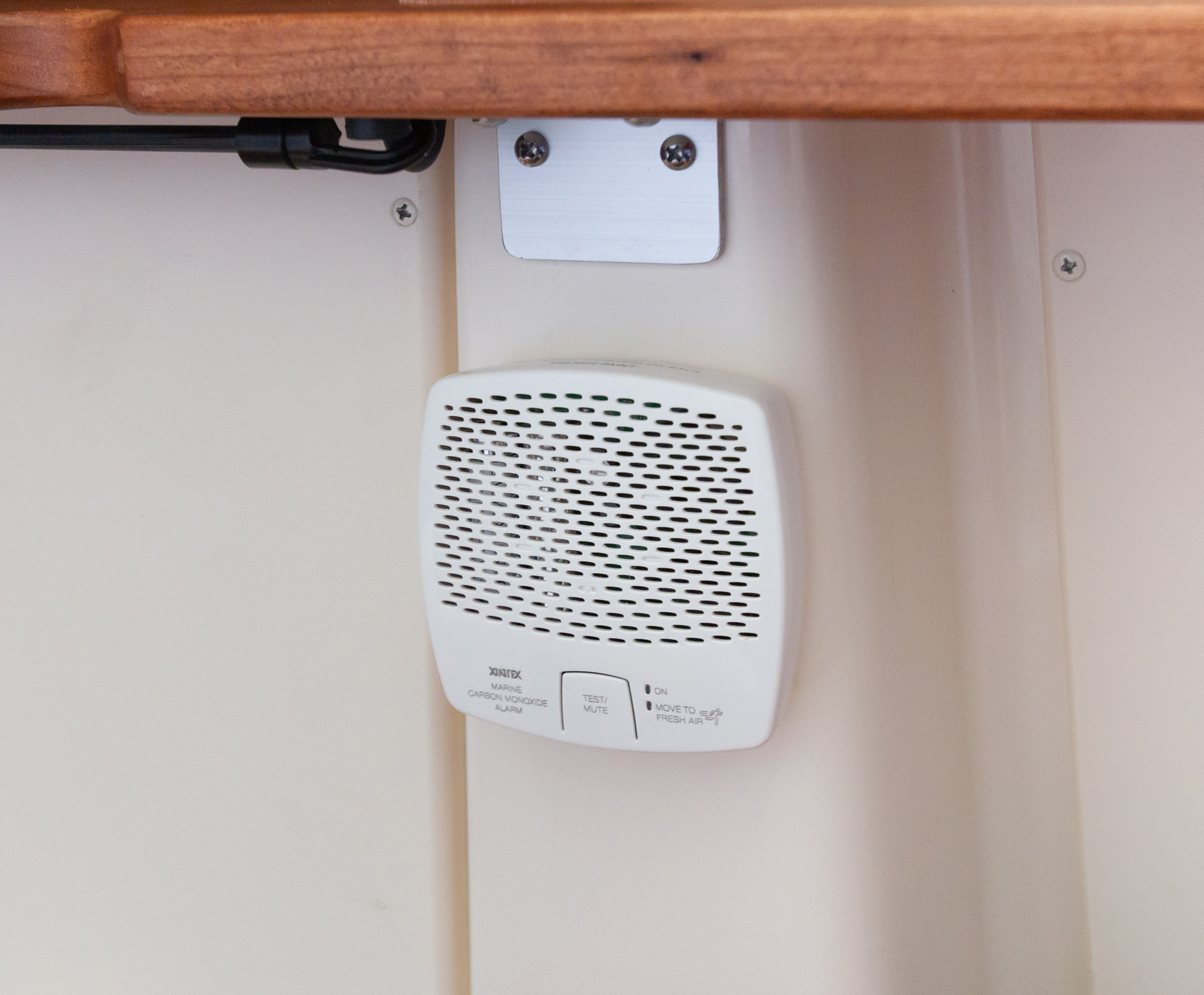

Carbon monoxide detectorCarbon monoxide detector
Composite cherry and holly sole
Drink holder - stainless steelDrink holder - stainless steel

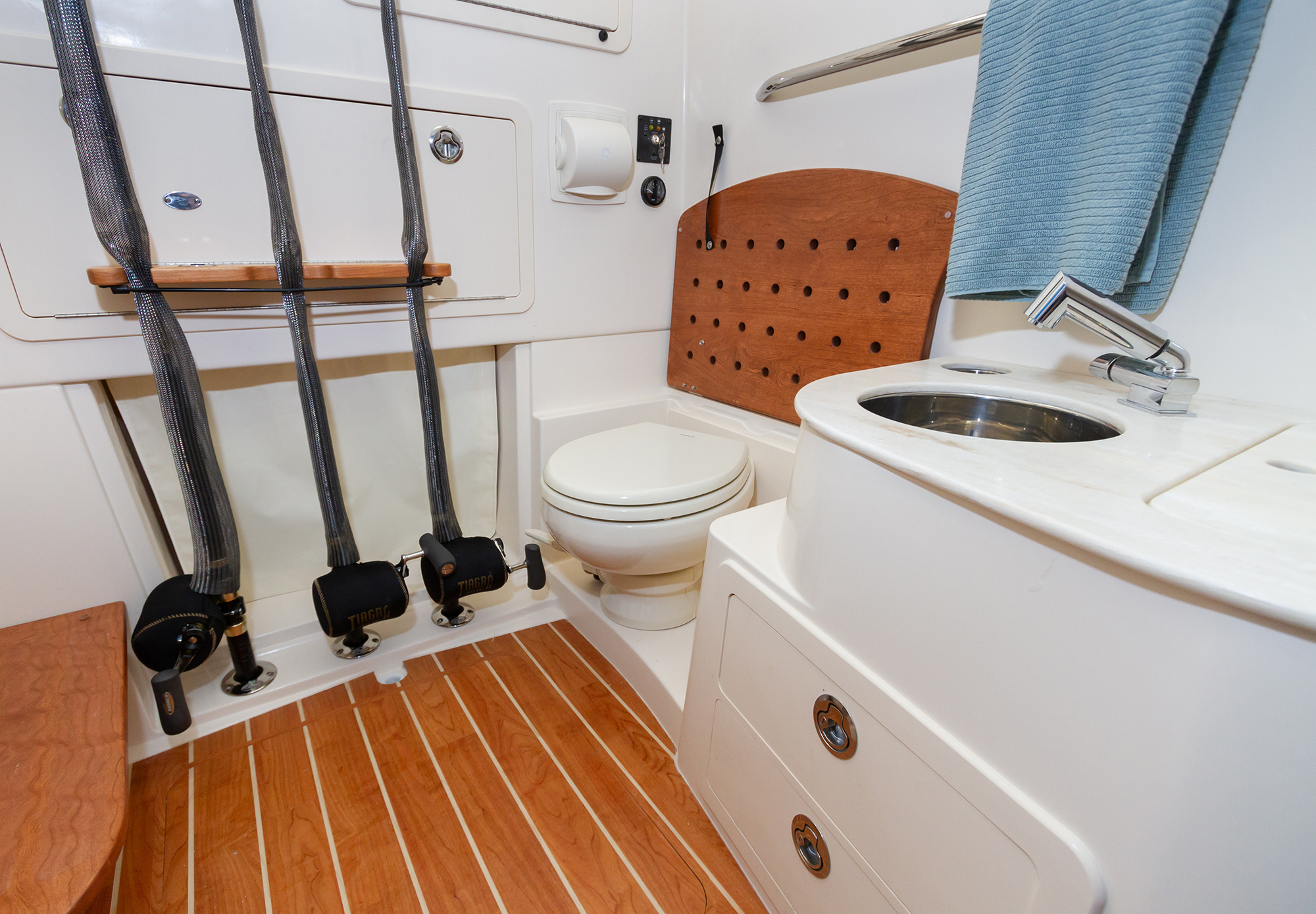

Head - lockable console w/stand up head area, shower, sink, drawers & VacuFlush(R) head, 10-gallon (37.9 l) holding tank and pump outHead - lockable console w/stand up head area, shower, sink, drawers & VacuFlush(R) head, 10-gallon (37.9 l) holding tank and pump out
Helm access door w/lightHelm access door w/light
Lighting - dome lightLighting - dome light

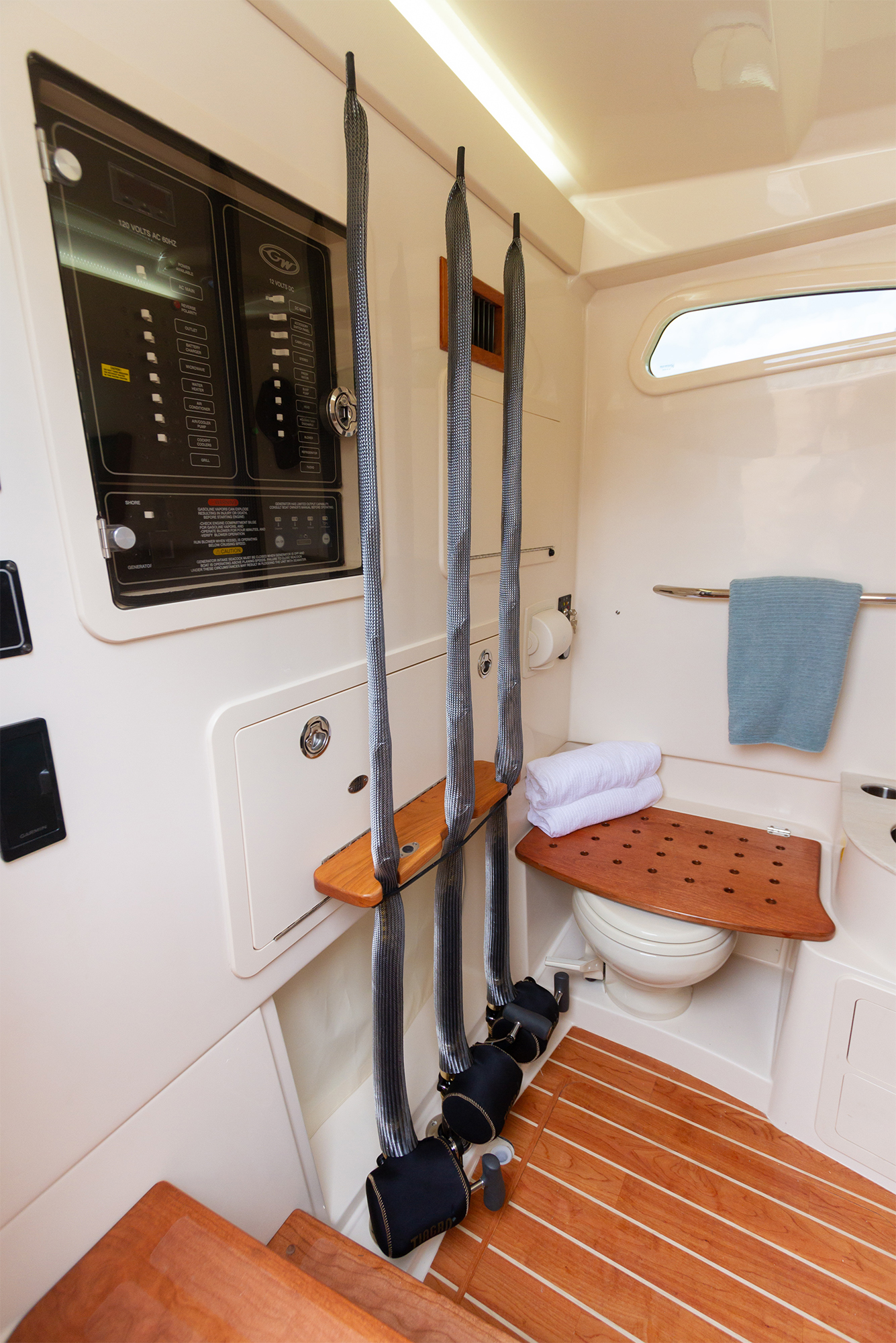

Rod storage - vertical lockable storage for 6 rodsRod storage - vertical lockable storage for 6 rods
Stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers w/LED lights - console forward (2), cockpit (2) & T-top (2)Stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers w/LED lights - console forward (2), cockpit (2) & T-top (2)
Storage - bulk storage aftStorage - bulk storage aft
Storage - storage pocketsStorage - storage pockets
Deluxe Lean Bar
Knife & pliers holders (2)Knife & pliers holders (2)
Livewell - 45-gallon (170.3 l) insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)Livewell - 45-gallon (170.3 l) insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)
Painted rod holders (6)Painted rod holders (6)

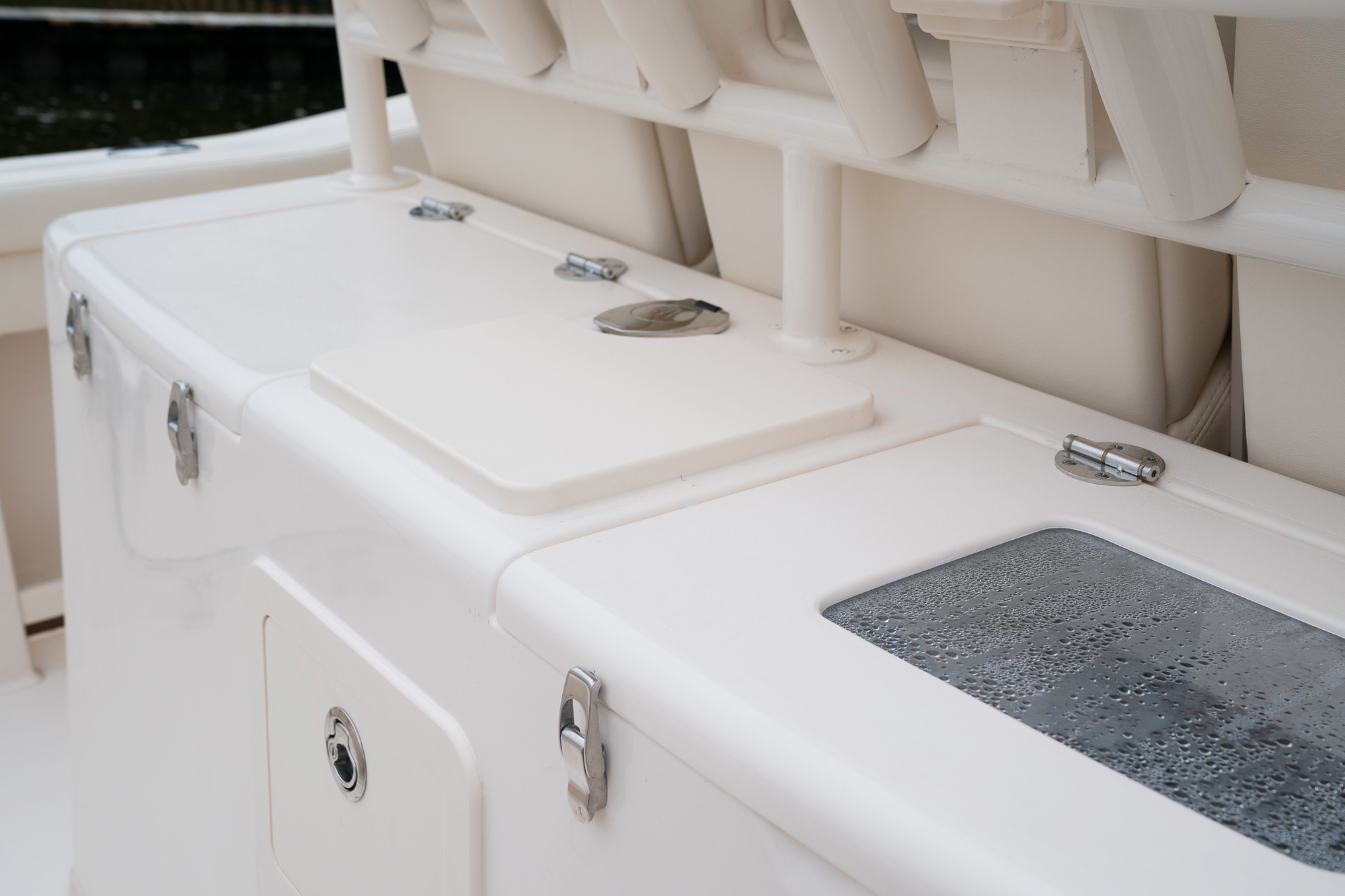

Rigging station - lean bar station w/freshwater washdown & 104-qt. (98.4 l) coolerRigging station - lean bar station w/freshwater washdown & 104-qt. (98.4 l) cooler
Seating - lean bar mounted Command Elite horizontally adjustable contoured helm chairs w/deluxe cushioning & flip-up bolsters (3)Seating - lean bar mounted Command Elite horizontally adjustable contoured helm chairs w/deluxe cushioning & flip-up bolsters (3)
Storage - lockable bulk storageStorage - lockable bulk storage
Storage - lockable tackle drawersStorage - lockable tackle drawers

Optional Features

Options
Air conditioning - 6,000 BTU in console w/2 outlets at helmAir conditioning - 6,000 BTU in console w/2 outlets at helm
Bow thrusterBow thruster
Casting platform insert w/cushionsCasting platform insert w/cushions
CE certification package (European Conformity)
Cockpit side door - port w/boarding ladder (n/a w/cockpit step)Cockpit side door - port w/boarding ladder (n/a w/cockpit step)
Cockpit step (n/a w/cockpit side door)Cockpit step (n/a w/cockpit side door)
Deck chair - luxury cushioned custom deck chair w/padded arms & drink holderDeck chair - luxury cushioned custom deck chair w/padded arms & drink holder
Engine paint - Yamaha factory-painted engine(s), pearlescent white or primer (425 HP only)
Freezer - refrigerator/freezer fish box w/digitally controlled thermostat & ob drainFreezer - refrigerator/freezer fish box w/digitally controlled thermostat & ob drain
Generator - 5kW diesel, 12-gal. (45.4 l) fuel capacityGenerator - 5kW diesel, 12-gal. (45.4 l) fuel capacity
Helm Master® w/Set Point™ - Yamaha Helm Master® control systemHelm Master® w/Set Point™ - Yamaha Helm Master® control system
Hull color - Celestial Blue, Coastal Fog Blue, Sand, Sea Glass or Seaport Blue gelcoat; Cape Gray or Harbor Blue paintHull color - Celestial Blue, Coastal Fog Blue, Sand, Sea Glass or Seaport Blue gelcoat; Cape Gray or Harbor Blue paint
International AC electrical conversion - 220V 50Hz
Lighting - underwater LED (4)Lighting - underwater LED (4)
Livewell - 26-gal. (98.4 l) livewell (replaces lean bar cooler)Livewell - 26-gal. (98.4 l) livewell (replaces lean bar cooler)
MicrowaveMicrowave
Outrigger kit - 15-ft. (4.6 m) crank outriggers T-top mountedOutrigger kit - 15-ft. (4.6 m) crank outriggers T-top mounted
Outrigger kit - 15-ft. (4.6 m) radial T-top mountedOutrigger kit - 15-ft. (4.6 m) radial T-top mounted
Seating - port and starboard cushioned bow seating w/forward facing fold away bolstered backrest (2)Seating - port and starboard cushioned bow seating w/forward facing fold away bolstered backrest (2)
Stereo - Deluxe stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, helm subwoofer, Bluetooth®, remote unit & fold down storage; speakers w/LED lights - console forward (2), cockpit (2) & T-top (2)Stereo - Deluxe stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, helm subwoofer, Bluetooth®, remote unit & fold down storage; speakers w/LED lights - console forward (2), cockpit (2) & T-top (2)
SureShade® electrically retractable shade w/Sunbrella® canvas (oyster)SureShade® electrically retractable shade w/Sunbrella® canvas (oyster)
Table - fiberglass bow tableTable - fiberglass bow table
T-top color - underside of fiberglass T-top (requires matching gelcoat hull color option)T-top color - underside of fiberglass T-top (requires matching gelcoat hull color option)
Water heater - 6 gallon (22.7 l) (includes hot water cockpit shower)
Canvas Options
T-top front, side & wing curtains (black or ivory)T-top front, side & wing curtains (black or ivory)





CHOOSE AN ENGINE BELOW FOR DETAILED PERFORMANCE SPECS OR SELECT TWO ENGINE PACKAGES TO COMPARE

300 YAMAHA FOUR-STROKE (TWIN)

300 YAMAHA FOUR-STROKE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

350 YAMAHA FOUR-STROKE (TWIN)

350 YAMAHA FOUR-STROKE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

425 YAMAHA FOUR-STROKE (TWIN)

425 YAMAHA FOUR-STROKE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

425 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

425 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

300 YAMAHA FOUR-STROKE (TRIPLE)

300 YAMAHA FOUR-STROKE (TRIPLE)

PERFORMANCE DATA

SELECT TO COMPARE

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TRIPLE)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TRIPLE)

PERFORMANCE DATA

SELECT TO COMPARE

BACK

COMPARE A DIFFERENT ENGINE PACKAGE
300 YAMAHA FOUR-STROKE (TWIN)

300 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

4.2L

Test Date:

8/25/2015

Prop Size*:

15 3/4 X 15 SWS II SDS

Weight as Tested:

12989 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.9 MPH @ 4100 RPM

RPM MPH GPH MPG
1000 5.7 2.5 2.26
1500 7.6 4.1 1.86
2000 8.8 7.9 1.11
2500 9.6 9.4 1.02
3000 12.1 12.4 0.98
3500 16.1 16.5 0.97
4000 28.9 22.6 1.28
4100 29.9 23.3 1.28
4500 33.5 28.8 1.16
5000 37.7 34.1 1.11
5500 41.2 42.7 0.96
6000 44.8 51.5 0.87
300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

4.2L

Test Date:

8/25/2015

Prop Size*:

15 3/4 X 15 SWS II SDS

Weight as Tested:

12989 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.9 MPH @ 4100 RPM

RPM MPH GPH MPG
1000 5.7 2.5 2.26
1500 7.6 4.1 1.86
2000 8.8 7.9 1.11
2500 9.6 9.4 1.02
3000 12.1 12.4 0.98
3500 16.1 16.5 0.97
4000 28.9 22.6 1.28
4100 29.9 23.3 1.28
4500 33.5 28.8 1.16
5000 37.7 34.1 1.11
5500 41.2 42.7 0.96
6000 44.8 51.5 0.87
350 YAMAHA FOUR-STROKE (TWIN)

350 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

5.3L

Test Date:

8/5/2015

Prop Size*:

16 1/4 X 17 SWS XL SDS

Weight as Tested:

12638 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.0 MPH @ 3500 RPM

RPM MPH GPH MPG
1000 6.3 3.2 1.98
1500 8.4 5.3 1.58
2000 9.5 8.8 1.08
2500 16.0 12.8 1.25
3000 22.0 16.6 1.32
3500 29.0 21.4 1.35
4000 34.9 27.1 1.29
4500 39.7 33.4 1.19
5000 44.1 40.9 1.08
5500 48.9 55.3 0.88
6000 51.7 65.2 0.79
350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

5.3L

Test Date:

8/5/2015

Prop Size*:

16 1/4 X 17 SWS XL SDS

Weight as Tested:

12638 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.0 MPH @ 3500 RPM

RPM MPH GPH MPG
1000 6.3 3.2 1.98
1500 8.4 5.3 1.58
2000 9.5 8.8 1.08
2500 16.0 12.8 1.25
3000 22.0 16.6 1.32
3500 29.0 21.4 1.35
4000 34.9 27.1 1.29
4500 39.7 33.4 1.19
5000 44.1 40.9 1.08
5500 48.9 55.3 0.88
6000 51.7 65.2 0.79
425 YAMAHA FOUR-STROKE (TWIN)

425 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

5.6L

Test Date:

5/08/2018

Prop Size*:

16 3/8 x 21 XTO OS

Weight as Tested:

13194 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 24.9 MPH @ 3000 RPM

RPM MPH GPH MPG
1000 6.4 3.9 1.63
1500 8.8 5.5 1.61
2000 10.7 8.9 1.21
2500 15.7 12.9 1.22
3000 24.9 17.4 1.43
3500 31.7 23.4 1.36
4000 37.3 29.4 1.27
4500 42.7 39.9 1.07
5000 48.0 49.8 0.96
5500 51.3 62.0 0.83
6000 54.7 73.7 0.74
425 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

425 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

5.6L

Test Date:

5/08/2018

Prop Size*:

16 3/8 x 21 XTO OS

Weight as Tested:

13194 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 24.9 MPH @ 3000 RPM

RPM MPH GPH MPG
1000 6.4 3.9 1.63
1500 8.8 5.5 1.61
2000 10.7 8.9 1.21
2500 15.7 12.9 1.22
3000 24.9 17.4 1.43
3500 31.7 23.4 1.36
4000 37.3 29.4 1.27
4500 42.7 39.9 1.07
5000 48.0 49.8 0.96
5500 51.3 62.0 0.83
6000 54.7 73.7 0.74
300 YAMAHA FOUR-STROKE (TRIPLE)

300 YAMAHA FOUR-STROKE (TRIPLE)

Engine Size:

4.2L

Test Date:

11/13/15

Prop Size*:

15 1/4 X 19 SWS II SDS

Weight as Tested:

13580 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.4 MPH @ 3300 RPM

RPM MPH GPH MPG
1000 6.3 3.8 1.64
1500 8.7 6.4 1.36
2000 10.3 10.4 0.99
2500 16.9 14.8 1.14
3000 26.3 19.4 1.35
3300 29.4 21.5 1.37
3500 32.5 25.6 1.27
4000 37.4 32.8 1.14
4500 42.7 44.2 0.97
5000 47.7 54.1 0.88
5500 52.2 66.9 0.78
5900 55.8 78.2 0.71
300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TRIPLE)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TRIPLE)

Engine Size:

4.2L

Test Date:

11/13/15

Prop Size*:

15 1/4 X 19 SWS II SDS

Weight as Tested:

13580 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.4 MPH @ 3300 RPM

RPM MPH GPH MPG
1000 6.3 3.8 1.64
1500 8.7 6.4 1.36
2000 10.3 10.4 0.99
2500 16.9 14.8 1.14
3000 26.3 19.4 1.35
3300 29.4 21.5 1.37
3500 32.5 25.6 1.27
4000 37.4 32.8 1.14
4500 42.7 44.2 0.97
5000 47.7 54.1 0.88
5500 52.2 66.9 0.78
5900 55.8 78.2 0.71

BACK

VIEW SPECS FOR A DIFFERENT ENGINE PACKAGE
300 YAMAHA FOUR-STROKE (TWIN)

300 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

4.2L

Test Date:

8/25/2015

Prop Size*:

15 3/4 X 15 SWS II SDS

Weight as Tested:

12989 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.9 MPH @ 4100 RPM

RPM MPH GPH MPG
1000 5.7 2.5 2.26
1500 7.6 4.1 1.86
2000 8.8 7.9 1.11
2500 9.6 9.4 1.02
3000 12.1 12.4 0.98
3500 16.1 16.5 0.97
4000 28.9 22.6 1.28
4100 29.9 23.3 1.28
4500 33.5 28.8 1.16
5000 37.7 34.1 1.11
5500 41.2 42.7 0.96
6000 44.8 51.5 0.87
300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

4.2L

Test Date:

8/25/2015

Prop Size*:

15 3/4 X 15 SWS II SDS

Weight as Tested:

12989 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.9 MPH @ 4100 RPM

RPM MPH GPH MPG
1000 5.7 2.5 2.26
1500 7.6 4.1 1.86
2000 8.8 7.9 1.11
2500 9.6 9.4 1.02
3000 12.1 12.4 0.98
3500 16.1 16.5 0.97
4000 28.9 22.6 1.28
4100 29.9 23.3 1.28
4500 33.5 28.8 1.16
5000 37.7 34.1 1.11
5500 41.2 42.7 0.96
6000 44.8 51.5 0.87
350 YAMAHA FOUR-STROKE (TWIN)

350 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

5.3L

Test Date:

8/5/2015

Prop Size*:

16 1/4 X 17 SWS XL SDS

Weight as Tested:

12638 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.0 MPH @ 3500 RPM

RPM MPH GPH MPG
1000 6.3 3.2 1.98
1500 8.4 5.3 1.58
2000 9.5 8.8 1.08
2500 16.0 12.8 1.25
3000 22.0 16.6 1.32
3500 29.0 21.4 1.35
4000 34.9 27.1 1.29
4500 39.7 33.4 1.19
5000 44.1 40.9 1.08
5500 48.9 55.3 0.88
6000 51.7 65.2 0.79
350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

5.3L

Test Date:

8/5/2015

Prop Size*:

16 1/4 X 17 SWS XL SDS

Weight as Tested:

12638 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.0 MPH @ 3500 RPM

RPM MPH GPH MPG
1000 6.3 3.2 1.98
1500 8.4 5.3 1.58
2000 9.5 8.8 1.08
2500 16.0 12.8 1.25
3000 22.0 16.6 1.32
3500 29.0 21.4 1.35
4000 34.9 27.1 1.29
4500 39.7 33.4 1.19
5000 44.1 40.9 1.08
5500 48.9 55.3 0.88
6000 51.7 65.2 0.79
425 YAMAHA FOUR-STROKE (TWIN)

425 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

5.6L

Test Date:

5/08/2018

Prop Size*:

16 3/8 x 21 XTO OS

Weight as Tested:

13194 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 24.9 MPH @ 3000 RPM

RPM MPH GPH MPG
1000 6.4 3.9 1.63
1500 8.8 5.5 1.61
2000 10.7 8.9 1.21
2500 15.7 12.9 1.22
3000 24.9 17.4 1.43
3500 31.7 23.4 1.36
4000 37.3 29.4 1.27
4500 42.7 39.9 1.07
5000 48.0 49.8 0.96
5500 51.3 62.0 0.83
6000 54.7 73.7 0.74
425 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

425 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

5.6L

Test Date:

5/08/2018

Prop Size*:

16 3/8 x 21 XTO OS

Weight as Tested:

13194 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 24.9 MPH @ 3000 RPM

RPM MPH GPH MPG
1000 6.4 3.9 1.63
1500 8.8 5.5 1.61
2000 10.7 8.9 1.21
2500 15.7 12.9 1.22
3000 24.9 17.4 1.43
3500 31.7 23.4 1.36
4000 37.3 29.4 1.27
4500 42.7 39.9 1.07
5000 48.0 49.8 0.96
5500 51.3 62.0 0.83
6000 54.7 73.7 0.74
300 YAMAHA FOUR-STROKE (TRIPLE)

300 YAMAHA FOUR-STROKE (TRIPLE)

Engine Size:

4.2L

Test Date:

11/13/15

Prop Size*:

15 1/4 X 19 SWS II SDS

Weight as Tested:

13580 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.4 MPH @ 3300 RPM

RPM MPH GPH MPG
1000 6.3 3.8 1.64
1500 8.7 6.4 1.36
2000 10.3 10.4 0.99
2500 16.9 14.8 1.14
3000 26.3 19.4 1.35
3300 29.4 21.5 1.37
3500 32.5 25.6 1.27
4000 37.4 32.8 1.14
4500 42.7 44.2 0.97
5000 47.7 54.1 0.88
5500 52.2 66.9 0.78
5900 55.8 78.2 0.71
300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TRIPLE)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TRIPLE)

Engine Size:

4.2L

Test Date:

11/13/15

Prop Size*:

15 1/4 X 19 SWS II SDS

Weight as Tested:

13580 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 29.4 MPH @ 3300 RPM

RPM MPH GPH MPG
1000 6.3 3.8 1.64
1500 8.7 6.4 1.36
2000 10.3 10.4 0.99
2500 16.9 14.8 1.14
3000 26.3 19.4 1.35
3300 29.4 21.5 1.37
3500 32.5 25.6 1.27
4000 37.4 32.8 1.14
4500 42.7 44.2 0.97
5000 47.7 54.1 0.88
5500 52.2 66.9 0.78
5900 55.8 78.2 0.71

Canyon 336 Customer Reviews

Industry Reviews

October 18, 2018 BD Outdoors.com

"Yamaha Helm Master—Do You Want It, Do You Need It?"

Download PDF

June 2016 Yachting

“Grady-White Canyon 336

Download

May 18, 2016 Boattest.com

"Grady-White Canyon 336:
Classic Canyon-Runner CC"

Download

March 2016 newenglandboating.com

"Canyon 336 Offered in Triple-Engine Package"

Download

November 2015 On The Water

"Canyon 336 Now Enhanced with Triple Engine Package"

Download

May 2008 Pacific Coast Sportfishing

"Grady-White Canyon 336 Center Console"

Download
