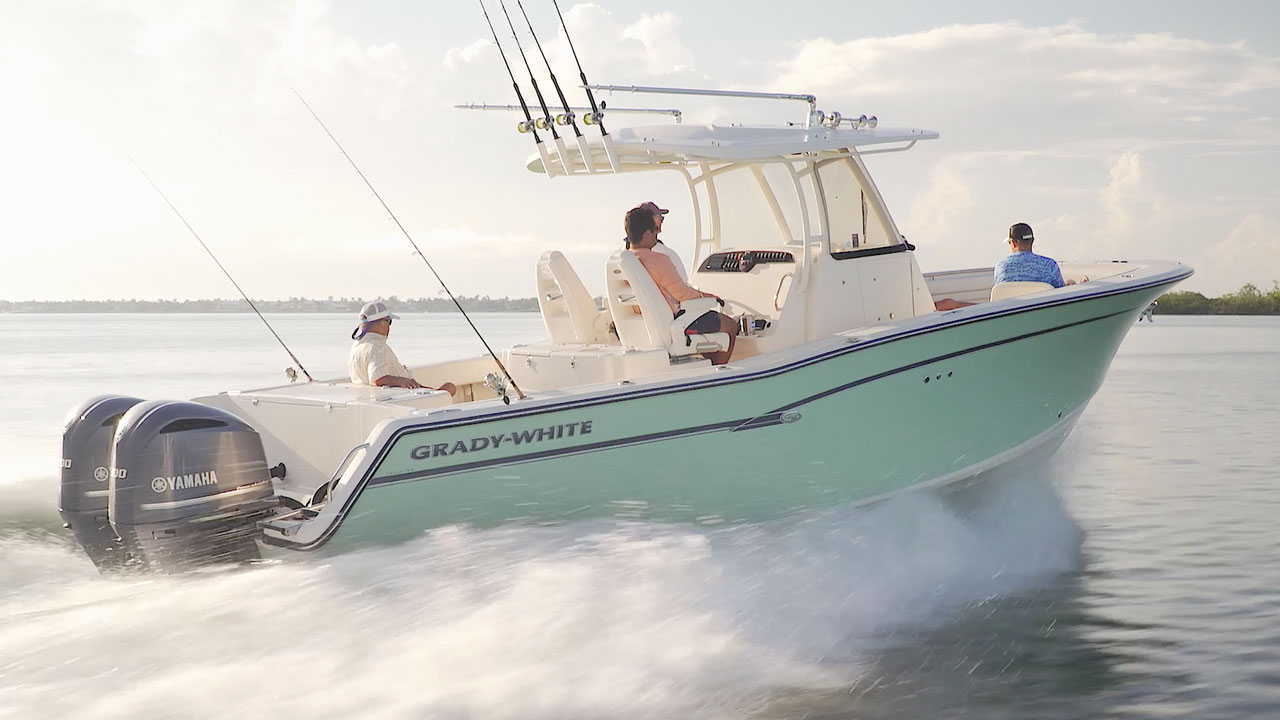

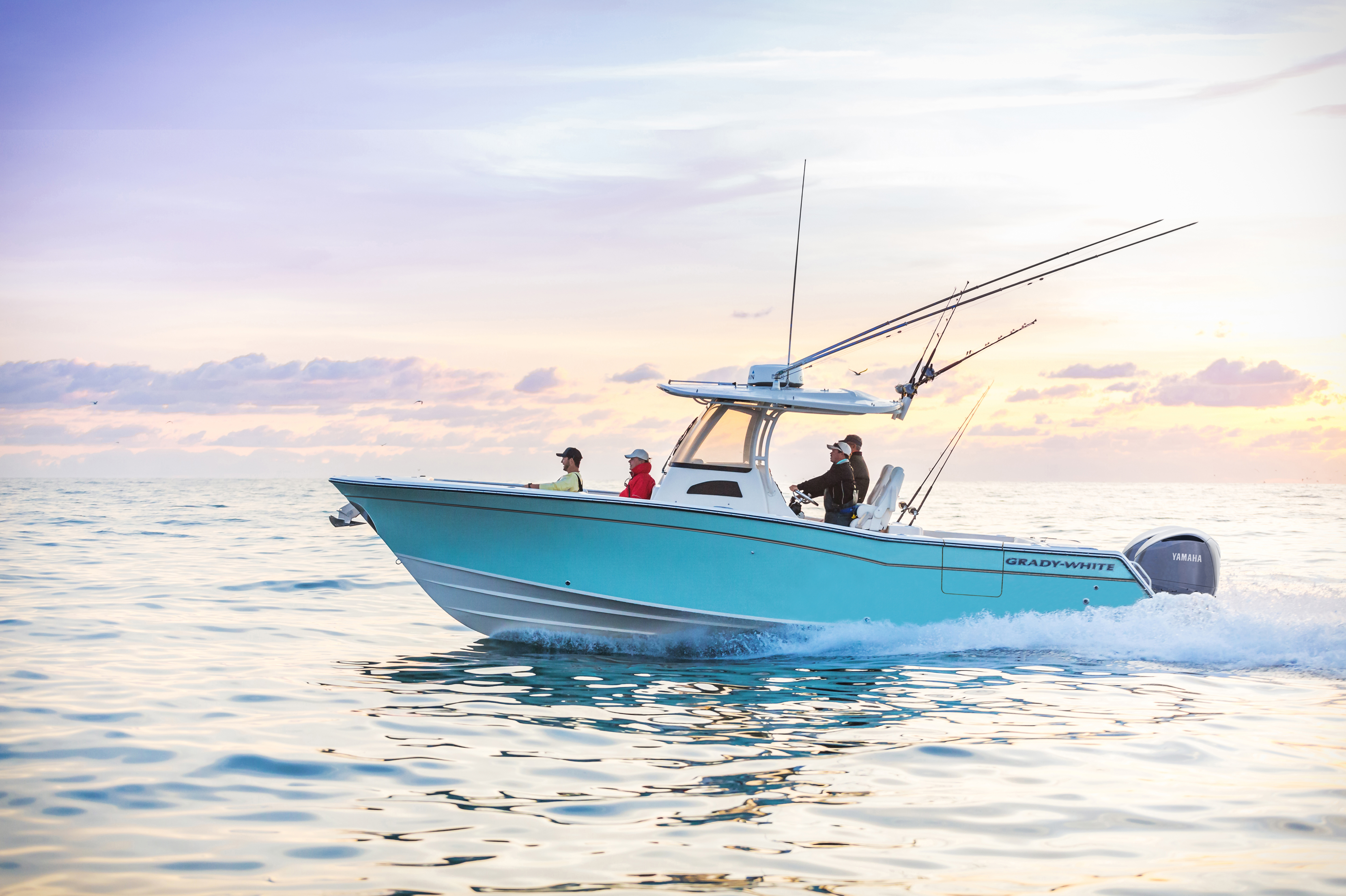

Canyon 306
30' CENTER CONSOLE
Tough, roomy, rugged yet comfortable, the Canyon 306 30-foot center console sport fishing boat is a “beast,” a great saltwater offshore boat with a wide open cockpit, plenty of storage and the incomparable SeaV ride. With superb seating, a console head enclosure and other creature comforts, the 306 is a great family boat, too.

Main Specifications

Beam Amidships
10'7" (3.23 m)

Center Line Length w/o Engines

30'6" (9.30 m)

Bridge Clearance

8'7" (2.62 m)

Cockpit Depth
27" (0.69 m)
Hull Draft
21" (0.53 m)

Transom Deadrise

Maximum HP
700 (522 kW)

Fuel Capacity - Standard

290 gal. (1098 l)

Weight w/o Engines
6950 lb. (3152 kg)




Canyon 306

Standard Features

Images are updated often, but may not always exactly represent the current model

Select camera icons where available to view feature photos

Denotes feature as trademarked, exclusive, patented, or patent pending

Safety
2 automatic bilge pumps (total 2600 GPH) (9842 LPH)
Basic flotation
Bow rail - low profile 316 grade stainless steelBow rail - low profile 316 grade stainless steel
Captain Grady - digital boat systems and operations guide for iPad and iPhoneCaptain Grady - digital boat systems and operations guide for iPad and iPhone
Cockpit toe railsCockpit toe rails
Composite stringer system & transom - water impervious
Console grab railConsole grab rail
Fire extinguisher holderFire extinguisher holder
Nonskid fiberglass linerNonskid fiberglass liner
Self-bailing cockpit w/cockpit drains (4)Self-bailing cockpit w/cockpit drains (4)
Stainless steel through-hull fittingsStainless steel through-hull fittings
Cockpit & Deck
100% hand laid SeaV² hull & deck100% hand laid SeaV² hull & deck
Anchor windlass w/remote switches at helm & windlassAnchor windlass w/remote switches at helm & windlass
Battery select switchBattery select switch
Cleats - flush mount (pop up)Cleats - flush mount (pop up)
Cockpit bolstersCockpit bolsters
Cockpit freshwater shower (recessed)Cockpit freshwater shower (recessed)
Cockpit lights - blue LEDCockpit lights - blue LED
Cockpit step - portCockpit step - port
Cutting boardCutting board
Deck hardware - 316 grade stainless steel through-boltedDeck hardware - 316 grade stainless steel through-bolted
Drink holders - stainless steel (7)Drink holders - stainless steel (7)
Engine flush system w/hose attachment aft (one per engine)Engine flush system w/hose attachment aft (one per engine)
Fish box - 150-qt. (142 l) port & starboard insulated fish boxes w/ob drainFish box - 150-qt. (142 l) port & starboard insulated fish boxes w/ob drain
Fish box - 304-qt. (287.7 l) aft insulated fish box w/light & ob drainFish box - 304-qt. (287.7 l) aft insulated fish box w/light & ob drain
Forward bolstersForward bolsters
Fuel capacity - 290-gallon (1098 l) tank
Hydraulic trim tabs w/indicator & retractorHydraulic trim tabs w/indicator & retractor
Integrated outboard mounting system w/swim platform & ladderIntegrated outboard mounting system w/swim platform & ladder
International lighting
Rod holders - cockpit (6), bow (2)Rod holders - cockpit (6), bow (2)
Rod storage - lockable horizontal storage for 6 rodsRod storage - lockable horizontal storage for 6 rods
Rubrail - high density PVC w/stainless steel insertRubrail - high density PVC w/stainless steel insert
Seating - fold away aft bench seat w/cushionSeating - fold away aft bench seat w/cushion
Seating - port and starboard bow seating w/forward facing fold away bolstered backrest (2)Seating - port and starboard bow seating w/forward facing fold away bolstered backrest (2)
Seating - port & starboard fish box cushionsSeating - port & starboard fish box cushions
Stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers w/LED lights - console forward (2), cockpit (2) & T-top (2)Stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit & fold down storage; speakers w/LED lights - console forward (2), cockpit (2) & T-top (2)
Stern eyes - heavy-duty 316 stainless steelStern eyes - heavy-duty 316 stainless steel
Storage netsStorage nets
Transducer mounting flats
Transom door - fiberglassTransom door - fiberglass
Washdown - freshwaterWashdown - freshwater
Washdown - pressurized raw water w/hose (2)Washdown - pressurized raw water w/hose (2)
Water tank - 32-gallon (121.1 l) freshwater
Console
Accessory outlet - 12VAccessory outlet - 12V
Accessory outlet - 5V duplex USB portAccessory outlet - 5V duplex USB port
CompassCompass
Console ventilatorConsole ventilator
Drink holders (3)Drink holders (3)
Factory engine pre-rigging
Flush mount electronics areaFlush mount electronics area
Head - lockable console w/lighting, shower, sink, bulk storage drawers, helm access door w/light, marine head w/electric flush (10-gallon) (38 l) & composite cherry and holly soleHead - lockable console w/lighting, shower, sink, bulk storage drawers, helm access door w/light, marine head w/electric flush (10-gallon) (38 l) & composite cherry and holly sole
Seating - molded forward console seat w/cushionSeating - molded forward console seat w/cushion
Steering - hydraulic tilt w/power assist (n/a with Yamaha Helm Master control)
Steering wheel - 316 grade stainless steel w/knobSteering wheel - 316 grade stainless steel w/knob
Storage - lockable acrylic console doorStorage - lockable acrylic console door
Storage - under footrestStorage - under footrest
T-top (fiberglass) w/painted aluminum frame, integrated windshield, radio box, storage net, dome light, fore/aft spreader lights, rod holders (4), radar flat & outrigger platesT-top (fiberglass) w/painted aluminum frame, integrated windshield, radio box, storage net, dome light, fore/aft spreader lights, rod holders (4), radar flat & outrigger plates
Window - tinted frameless acrylicWindow - tinted frameless acrylic
Windshield - scratch resistant acrylic windshield integrated w/T-topWindshield - scratch resistant acrylic windshield integrated w/T-top
Windshield wiper w/washerWindshield wiper w/washer
Deluxe Lean Bar
Drink holders (2)Drink holders (2)
FootrestsFootrests
Livewell - 47-gallon (177.9 l) insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)Livewell - 47-gallon (177.9 l) insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)
Rigging station - freshwater sink w/pullout faucet & insulated bait boxRigging station - freshwater sink w/pullout faucet & insulated bait box
Rod holders (4)Rod holders (4)
Seating - lean bar mounted Command Elite horizontally adjustable contoured helm chairs w/deluxe cushioning & flip-up bolsters (2)Seating - lean bar mounted Command Elite horizontally adjustable contoured helm chairs w/deluxe cushioning & flip-up bolsters (2)
Storage - lockable bulk storageStorage - lockable bulk storage
Storage - lockable tackle traysStorage - lockable tackle trays

Optional Features

Options
Bow thrusterBow thruster
Casting platform insert w/cushionsCasting platform insert w/cushions
CE certification package (European Conformity)
Convenience package - battery charger & dockside power w/galvanic isolatorConvenience package - battery charger & dockside power w/galvanic isolator
Engine paint - Yamaha factory-painted engine(s), pearlescent whiteEngine paint - Yamaha factory-painted engine(s), pearlescent white
Helm Master® w/Set Point™ - Yamaha Helm Master® control system (requires convenience package)Helm Master® w/Set Point™ - Yamaha Helm Master® control system (requires convenience package)
Hull color - Celestial Blue, Coastal Fog Blue, Sand, Sea Glass or Seaport Blue gelcoat; Cape Gray or Harbor Blue paintHull color - Celestial Blue, Coastal Fog Blue, Sand, Sea Glass or Seaport Blue gelcoat; Cape Gray or Harbor Blue paint
Lighting - underwater blue LED (3)Lighting - underwater blue LED (3)
Outrigger kit - 15-ft. (4.6 m) crank outriggers T-top mountedOutrigger kit - 15-ft. (4.6 m) crank outriggers T-top mounted
Outrigger kit - 15-ft. (4.6 m) radial T-top mountedOutrigger kit - 15-ft. (4.6 m) radial T-top mounted
Stereo - Deluxe stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, helm subwoofer, Bluetooth®, remote unit & fold down storage; speakers w/LED lights - console forward (2), cockpit (2) & T-top (2)
Table - fiberglass bow tableTable - fiberglass bow table
T-top color - underside of fiberglass T-top (requires matching gelcoat hull color option)T-top color - underside of fiberglass T-top (requires matching gelcoat hull color option)
Canvas Options
T-top side wing curtains (black or ivory)T-top side wing curtains (black or ivory)





CHOOSE AN ENGINE BELOW FOR DETAILED PERFORMANCE SPECS OR SELECT TWO ENGINE PACKAGES TO COMPARE

300 YAMAHA FOUR-STROKE (TWIN)

300 YAMAHA FOUR-STROKE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

350 YAMAHA FOUR-STROKE (TWIN)

350 YAMAHA FOUR-STROKE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

PERFORMANCE DATA

SELECT TO COMPARE

BACK

COMPARE A DIFFERENT ENGINE PACKAGE
300 YAMAHA FOUR-STROKE (TWIN)

300 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

4.2L

Test Date:

6/14/2010

Prop Size*:

15 1/2 X 17 SWSII SDS

Weight as Tested:

10286 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 30.2 MPH @ 3600 RPM

RPM MPH GPH MPG
1000 6.1 2.5 2.42
1500 8.5 4.1 2.09
2000 9.3 5.9 1.58
2500 11.1 9.3 1.19
3000 22.3 12.9 1.73
3500 29.2 17.7 1.65
3600 30.2 18.3 1.65
4000 33.9 24.3 1.40
4500 37.8 30.6 1.24
5000 42.6 39.3 1.08
5500 46.6 48.4 0.96
5900 50.5 51.3 0.99
300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

4.2L

Test Date:

6/14/2010

Prop Size*:

15 1/2 X 17 SWSII SDS

Weight as Tested:

10286 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 30.2 MPH @ 3600 RPM

RPM MPH GPH MPG
1000 6.1 2.5 2.42
1500 8.5 4.1 2.09
2000 9.3 5.9 1.58
2500 11.1 9.3 1.19
3000 22.3 12.9 1.73
3500 29.2 17.7 1.65
3600 30.2 18.3 1.65
4000 33.9 24.3 1.40
4500 37.8 30.6 1.24
5000 42.6 39.3 1.08
5500 46.6 48.4 0.96
5900 50.5 51.3 0.99
350 YAMAHA FOUR-STROKE (TWIN)

350 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

5.3L

Test Date:

4/11/2007

Prop Size*:

15 1/2" X 19 SWS XL SDS

Weight as Tested:

10413 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 30.4 MPH @ 3300 RPM

RPM MPH GPH MPG
1000 5.9 3.0 1.95
1500 8.4 5.1 1.64
2000 9.1 9.1 1.01
2500 17.2 12.8 1.35
3000 26.9 16.4 1.64
3300 30.4 19.3 1.58
3500 31.9 21.1 1.52
4000 37.9 25.5 1.49
4500 44.0 34.8 1.26
5000 48.1 44.5 1.08
5500 53.1 58.8 0.90
6000 59.1 69.0 0.86
350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

5.3L

Test Date:

4/11/2007

Prop Size*:

15 1/2" X 19 SWS XL SDS

Weight as Tested:

10413 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 30.4 MPH @ 3300 RPM

RPM MPH GPH MPG
1000 5.9 3.0 1.95
1500 8.4 5.1 1.64
2000 9.1 9.1 1.01
2500 17.2 12.8 1.35
3000 26.9 16.4 1.64
3300 30.4 19.3 1.58
3500 31.9 21.1 1.52
4000 37.9 25.5 1.49
4500 44.0 34.8 1.26
5000 48.1 44.5 1.08
5500 53.1 58.8 0.90
6000 59.1 69.0 0.86

BACK

VIEW SPECS FOR A DIFFERENT ENGINE PACKAGE
300 YAMAHA FOUR-STROKE (TWIN)

300 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

4.2L

Test Date:

6/14/2010

Prop Size*:

15 1/2 X 17 SWSII SDS

Weight as Tested:

10286 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 30.2 MPH @ 3600 RPM

RPM MPH GPH MPG
1000 6.1 2.5 2.42
1500 8.5 4.1 2.09
2000 9.3 5.9 1.58
2500 11.1 9.3 1.19
3000 22.3 12.9 1.73
3500 29.2 17.7 1.65
3600 30.2 18.3 1.65
4000 33.9 24.3 1.40
4500 37.8 30.6 1.24
5000 42.6 39.3 1.08
5500 46.6 48.4 0.96
5900 50.5 51.3 0.99
300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

300 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

4.2L

Test Date:

6/14/2010

Prop Size*:

15 1/2 X 17 SWSII SDS

Weight as Tested:

10286 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 30.2 MPH @ 3600 RPM

RPM MPH GPH MPG
1000 6.1 2.5 2.42
1500 8.5 4.1 2.09
2000 9.3 5.9 1.58
2500 11.1 9.3 1.19
3000 22.3 12.9 1.73
3500 29.2 17.7 1.65
3600 30.2 18.3 1.65
4000 33.9 24.3 1.40
4500 37.8 30.6 1.24
5000 42.6 39.3 1.08
5500 46.6 48.4 0.96
5900 50.5 51.3 0.99
350 YAMAHA FOUR-STROKE (TWIN)

350 YAMAHA FOUR-STROKE (TWIN)

Engine Size:

5.3L

Test Date:

4/11/2007

Prop Size*:

15 1/2" X 19 SWS XL SDS

Weight as Tested:

10413 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 30.4 MPH @ 3300 RPM

RPM MPH GPH MPG
1000 5.9 3.0 1.95
1500 8.4 5.1 1.64
2000 9.1 9.1 1.01
2500 17.2 12.8 1.35
3000 26.9 16.4 1.64
3300 30.4 19.3 1.58
3500 31.9 21.1 1.52
4000 37.9 25.5 1.49
4500 44.0 34.8 1.26
5000 48.1 44.5 1.08
5500 53.1 58.8 0.90
6000 59.1 69.0 0.86
350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

350 YAMAHA FOUR-STROKE, PEARLESCENT WHITE (TWIN)

Engine Size:

5.3L

Test Date:

4/11/2007

Prop Size*:

15 1/2" X 19 SWS XL SDS

Weight as Tested:

10413 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop:

Yes

Bow Pulpit:

No

Bottom Paint:

No

Optimum Cruise: 30.4 MPH @ 3300 RPM

RPM MPH GPH MPG
1000 5.9 3.0 1.95
1500 8.4 5.1 1.64
2000 9.1 9.1 1.01
2500 17.2 12.8 1.35
3000 26.9 16.4 1.64
3300 30.4 19.3 1.58
3500 31.9 21.1 1.52
4000 37.9 25.5 1.49
4500 44.0 34.8 1.26
5000 48.1 44.5 1.08
5500 53.1 58.8 0.90
6000 59.1 69.0 0.86

Canyon 306 Customer Reviews

Industry Reviews

October 18, 2018 BD Outdoors.com

"Yamaha Helm Master—Do You Want It, Do You Need It?"

Download PDF

2017 Florida Sportsman Best Boat

"Grady-White Canyon 306"

Download

July 20, 2017 Southern Boating

"Grady-White Canyon 306"

Download

June 8, 2017 sportfishingmag.com

"Grady-White's reconfigured center console Canyon 306"

Download

June 2017 Sport Fishing Magazine

"Grady-White has reinvented the center console Canyon 306"

Download

April 2017 Saltwater Sportsman

"Revamped Canyon 306"

Download

February 2017 BoatTest.com

"Grady-White Canyon 306"

Download
