Express 330 Main Specifications
Beam Amidships
11'7" (3.53 m)
Center Line Length w/o Engines
33'6" (10.21 m)
Bridge Clearance
9'10" (3.00 m)
Weight w/o Engines
10,840 lb. (4917 kg)
Cockpit Depth
29" (0.74 m)
Hull Draft
25" (0.64 m)
Transom Deadrise
20 degrees (SeaV2® progression)
Maximum HP
900 (671 kW)
Fuel Capacity - Standard
331 gal. (1253 l)
Express 330 Features & Options
Select camera icons where available to view feature photos
Denotes feature as trademarked, exclusive, patented, or patent pending
Safety
Automatic bilge pumps (2) (total 3000 GPH) (11,356 LPH)
Basic flotation
Bow rail - 316 grade stainless steel
Cockpit toe rails
Composite stringer system & transom - water impervious
Nonskid fiberglass liner
Self-bailing cockpit w/cockpit drains (6)
Stainless steel through-hull fittings
Yamaha Siren Marine Vessel Monitoring System
Cabin
Accessory outlet - 12V
Air conditioning - 12,000 BTU
Berth - aft double berth
Berth - forward vee berth

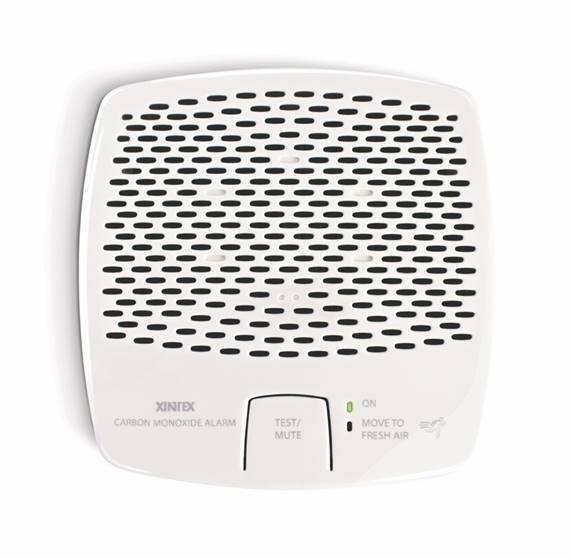

Carbon monoxide detector
Door - lockable w/screen & companionway hatch
Forward hatch - low profile acrylic hatches w/retractable screen & shade (2)
Galley - port galley w/sink, light & Corian® cutting board
Head - enclosed ventilated head area w/lighting, sink, shower, storage cabinet & VacuFlush® marine head w/freshwater supply, 10-gallon (37.9 l) holding tank, overboard discharge & deck pump out
Lighting - recessed throughout w/dimmers
Lighting - step lights (2)
Lighting - reading (2)
Microwave oven - 120V (60Hz)
Mirrors
Refrigerator - stainless steel

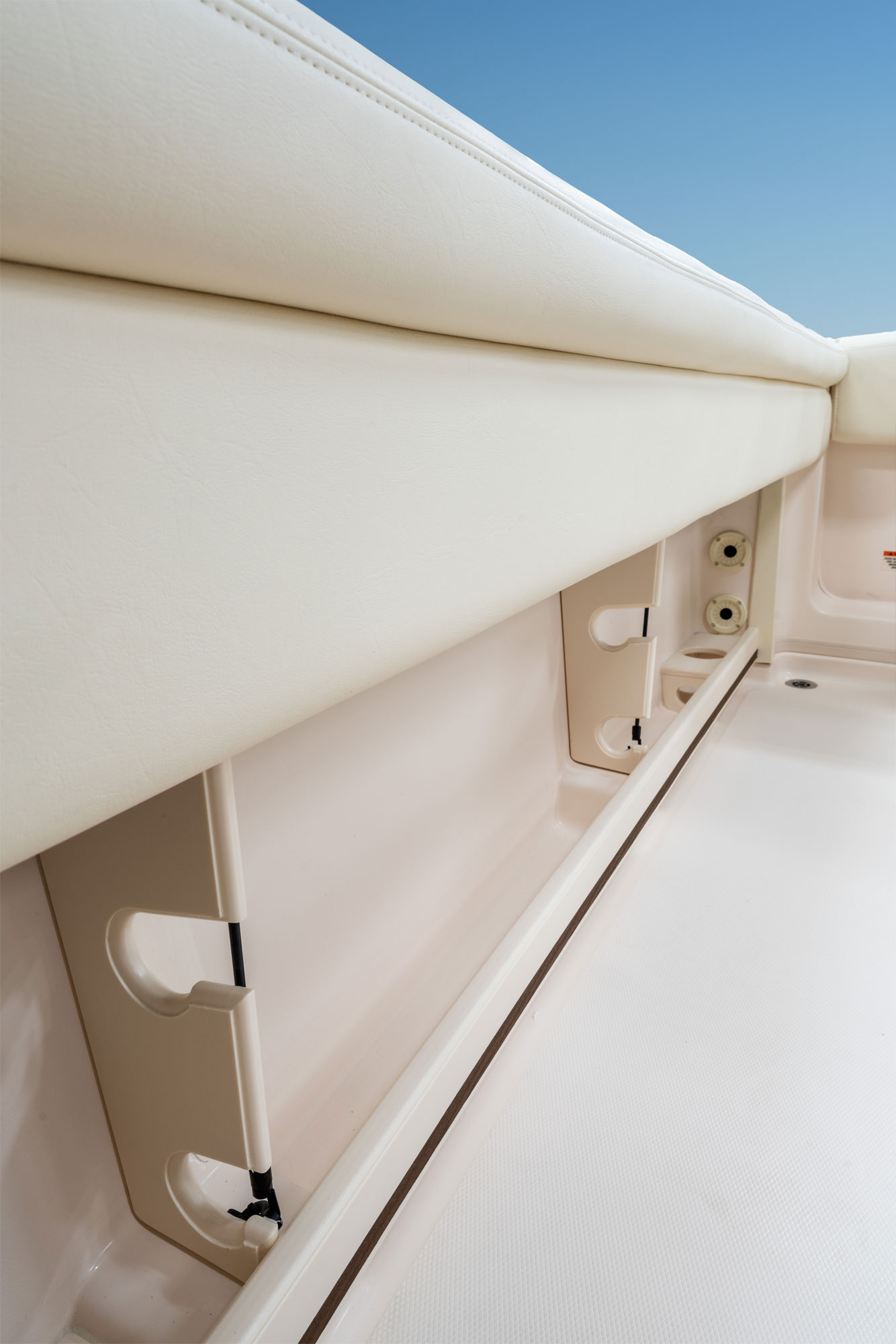

Rod storage racks - horizontal (6)
Stereo system w/waterproof touch screen display, AM/FM tuner & Wi-Fi & Bluetooth® connectivity; speakers (2)
Storage - cherry galley cabinets
Storage - under berth compartments
Storage nets
Stove - electric glass top
Table - cherry
Teak & holly sole
TV - 28" LED flat screen w/HDMI inlet
Water heater - 6-gallon (22.7 l), 120V
Water tank - 44-gallon (166.6 l) freshwater
Cockpit & Deck
100% hand laid SeaV² hull & deck
Accessory outlet - 5V duplex USB port
Accessory outlet - 12V
Anchor windlass w/remote switches at helm & windlass
Batteries (4) w/battery select switches (one per engine) & charger system (1)
Bow pulpit w/roller
Cleats
Cockpit bolsters
Cockpit freshwater shower w/hot & cold mixer (recessed)
Cockpit lights - blue LED
Cockpit side door - port w/boarding ladder
Companion grab rail
Compass
Cooler - 56-qt. (53 l) port helm seat cooler
Deck hardware - 316 grade stainless steel through-bolted
Dockside power w/galvanic isolator
Dockside water inlet
Drink holders - stainless steel (8)
Engine flush system w/hose attachment aft (one per engine)
Factory engine pre-rigging
Fighting chair reinforcement
Fish box - 254-qt. (240.4 l) aft insulated fish box w/lights (2) & ob drain
Footrest - helm
Generator - 8kW diesel, 13-gallon (11.4 l) fuel capacity
Hardtop - AV²® enclosure w/painted aluminum frame, electromechanically sliding sunroof w/screen & shade, electromechanically operated center vent, storage net, LED spreader lights, tri-colored (red, blue, white) LED recessed lights (6), side mounted rod holders (4), outrigger plates & Clear2Sea™ side curtains
Hydraulic trim tabs w/indicator & retractor
Integrated outboard mounting system w/swim platform & ladder
International lighting
Livewell - 45-gallon (170.3 l) starboard insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)
Phone charger (wireless) - helm mounted
Rod holders - cockpit (3)
Rod storage racks - horizontal (3)
Rubrail - high density PVC w/stainless steel insert

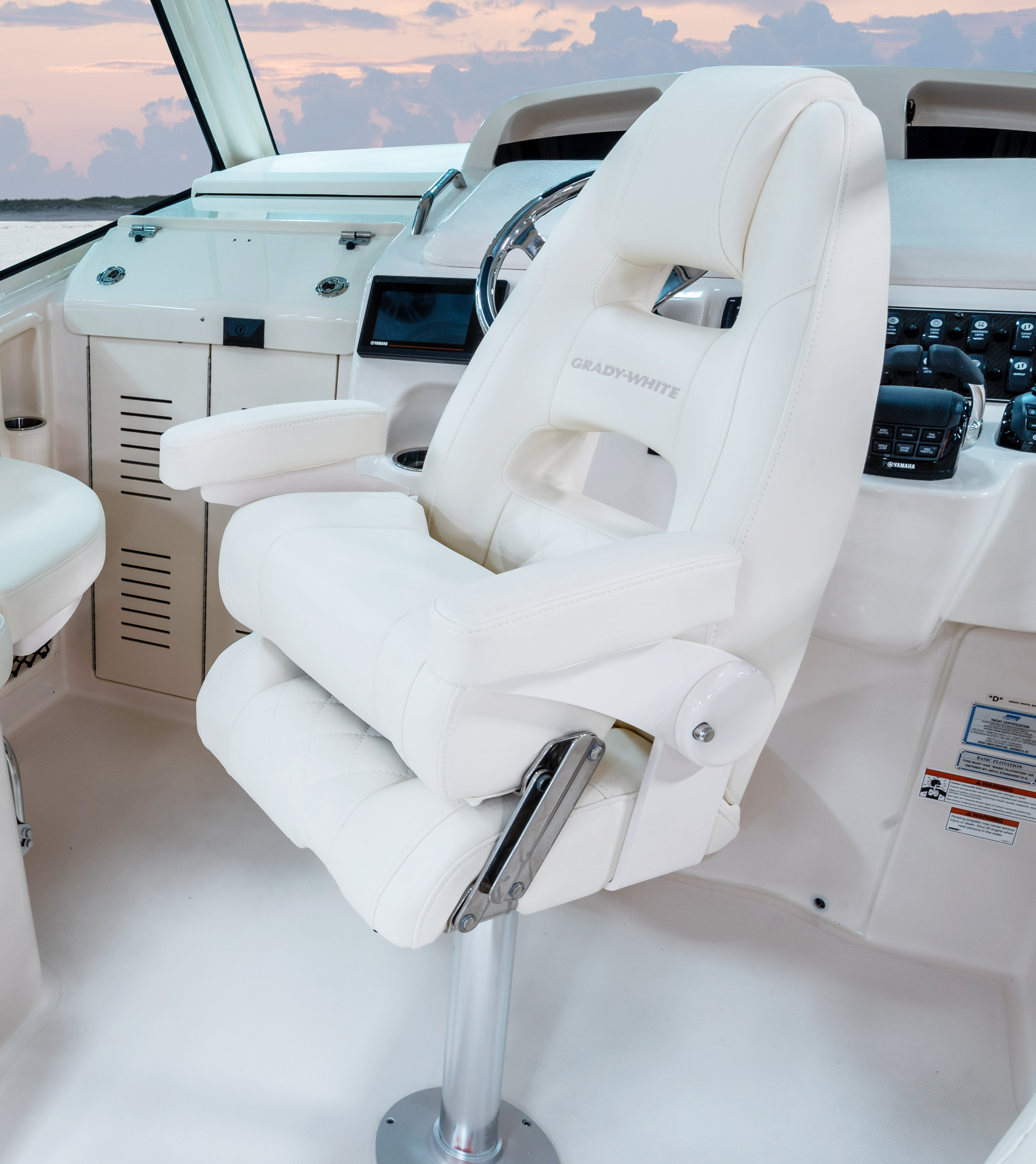

Seating - Command Elite helm chair (1) horizontally & vertically adjustable w/deluxe cushioning & flip-up bolster
Seating - foldaway aft bench seat w/cushion
Seating - helm area surround seating
Sink - port cockpit freshwater sink w/faucet

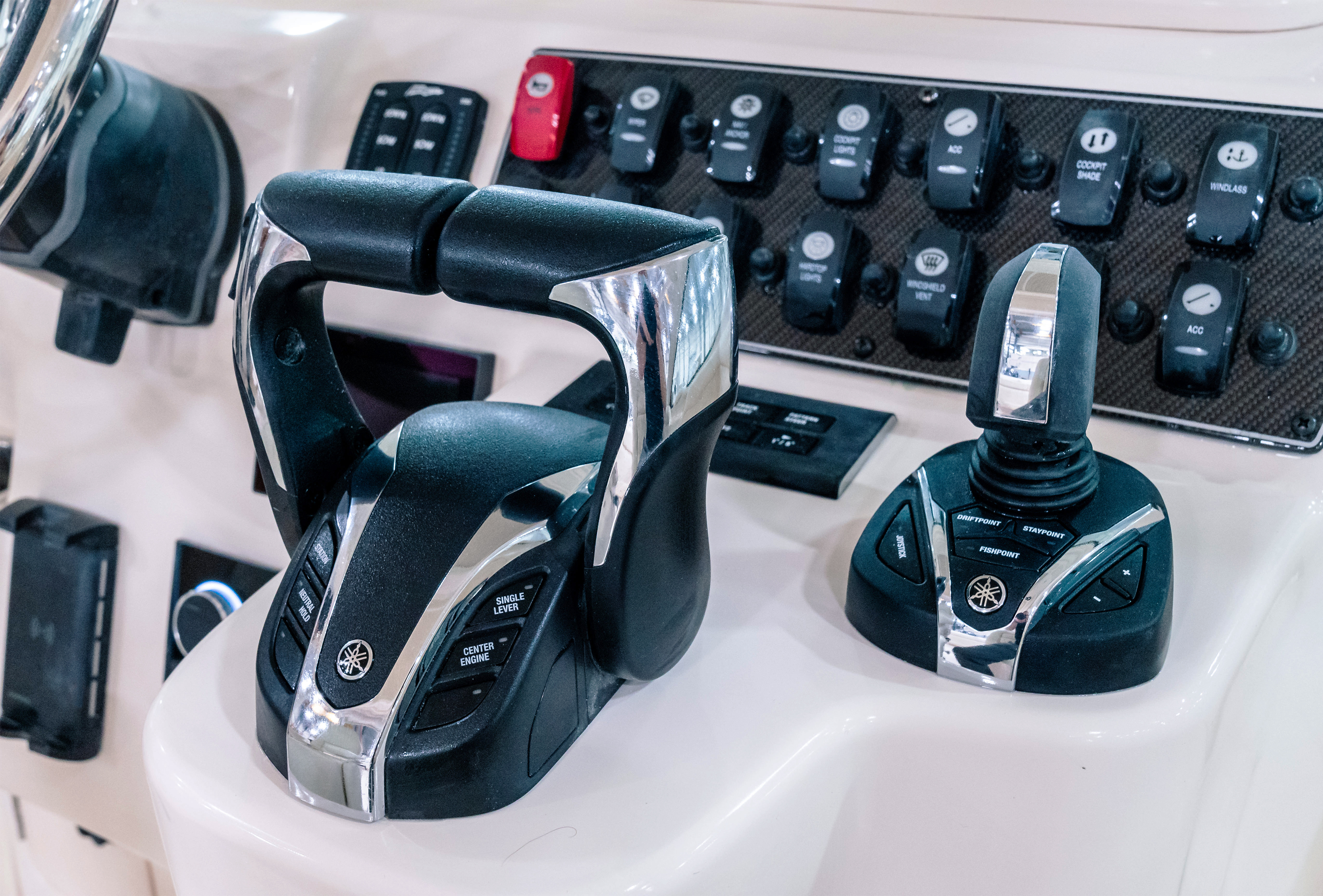

Steering - Helm Master® EX w/Full Maneuverability
Steering wheel - 316 grade stainless steel w/knob
Stereo system w/waterproof touch screen display, AM/FM tuner & Wi-Fi & Bluetooth® connectivity; speakers w/LED lights - hardtop (2), cockpit (2)
Stern eyes - 316 grade stainless steel
Storage - aft deck lift out box
Storage - electromechanically operated electronics enclosure
Storage - forward anchor locker w/rode storage
Storage - port tackle drawers (3)
Storage - under helm area surround seating
Storage nets
Table - helm seat table
Transom door - fiberglass
Washdown - freshwater
Washdown - pressurized raw water w/hose (forward & aft)
Windshield - tempered glass
Windshield wiper w/washer
Options
Air conditioning - 12,000 BTU at helm
Bow thruster
CE certification package (European Conformity)
Freezer/refrigerator unit w/digitally controlled thermostat for aft fish box w/ob drain & for port helm seat cooler
Grill - 1300W (in lieu of port cockpit sink)
Hull color - Celestial Blue, Coastal Fog, Ocean Mist, or Sea Glass gelcoat
International AC electrical conversion - 220V (50Hz)
Lighting - underwater blue LED (4)
Outrigger kit - 18-ft. (5.5 m) crank hardtop mounted stainless steel outriggers w/carbon fiber poles
Refrigerator - stainless steel (replaces port tackle drawers)
Seating - Deluxe Platinum vertically & horizontally adjustable helm chair w/flip-up bolster
Seating - forward deck sun cushions
Stabilizer - Seakeeper® 3 gyroscopic stabilization system
SureShade® electrically retractable cockpit shade w/Sunbrella® canvas (oyster)
Canvas Options
AV²® drop curtain (ivory)
Express 330 Performance Data
XTO Offshore® 450
Twin
Top Speed: 53.1 MPH @ 6100 RPM
Optimum Cruise: 30.6 MPH @ 3800 RPM
GPH at Optimum Cruise: 26.3
MPG at Optimum Cruise: 1.16
CLASSIC WHITE
Standard
XTO Offshore® 450
Twin
Engine Size
5.6L
Test Date
11/06/2018
Prop Size
16 5/8 X 19 XTO SDS
Weight as Tested
15112 lb. (including persons, fuel, water, gear, engines & accessories))
Hardtop
Yes
Bow Pulpit
No
Bottom Paint
No
Optimum Cruise
30.6 MPH @ 3800 RPM
| RPM | MPH | GPH | MPG |
|---|---|---|---|
| 1000 | 5.7 | 3.7 | 1.54 |
| 1500 | 7.9 | 5.4 | 1.46 |
| 2000 | 9.1 | 8.2 | 1.11 |
| 2500 | 10.3 | 12.9 | 0.80 |
| 3000 | 17.6 | 16.0 | 1.10 |
| 3500 | 27.0 | 22.2 | 1.22 |
| 3800 | 30.6 | 26.3 | 1.16 |
| 4000 | 33.1 | 29.0 | 1.14 |
| 4500 | 38.4 | 36.9 | 1.04 |
| 5000 | 43.4 | 46.3 | 0.94 |
| 5500 | 47.8 | 60.3 | 0.79 |
| 6100 | 53.1 | 77.6 | 0.68 |
XTO Offshore® 450
Twin
Engine Size
5.6L
Test Date
11/06/2018
Prop Size
16 5/8 X 19 XTO SDS
Weight as Tested
15112 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop
Yes
Bow Pulpit
No
Bottom Paint
No
Optimum Cruise
30.6 MPH @ 3800 RPM
| RPM | MPH | GPH | MPG |
|---|---|---|---|
| 1000 | 5.7 | 3.7 | 1.54 |
| 1500 | 7.9 | 5.4 | 1.46 |
| 2000 | 9.1 | 8.2 | 1.11 |
| 2500 | 10.3 | 12.9 | 0.80 |
| 3000 | 17.6 | 16.0 | 1.10 |
| 3500 | 27.0 | 22.2 | 1.22 |
| 3800 | 30.6 | 26.3 | 1.16 |
| 4000 | 33.1 | 29.0 | 1.14 |
| 4500 | 38.4 | 36.9 | 1.04 |
| 5000 | 43.4 | 46.3 | 0.94 |
| 5500 | 47.8 | 60.3 | 0.79 |
| 6100 | 53.1 | 77.6 | 0.68 |
Express 330 Overhead
