Canyon 326 Main Specifications
Beam Amidships
10'9" (3.28 m)
Center Line Length w/o Engines
31'2" (9.50 m) (swim platforms not included)
LOA w/Swim Platforms
33'1" (10.08 m)
Bridge Clearance
9'5" (2.87 m)
Cockpit Depth
26" (0.66 m)
Hull Draft
24" (0.61 m)
Transom Deadrise
20 degrees (SeaV2® progression)
Maximum HP
700 (522 kW)
Fuel Capacity - Standard
327 gal. (1238 l)
Weight w/o Engines
8500 lb. (3856 kg)
Canyon 326 Features & Options
Select camera icons where available to view feature photos
Denotes feature as trademarked, exclusive, patented, or patent pending
Safety
2 automatic bilge pumps (total 2600 GPH) (9842 LPH)
Basic flotation
Bow grab rail - low profile 316 grade stainless steel
Cockpit toe rails
Composite stringer system & transom - water impervious
Fire extinguisher holder
Nonskid fiberglass liner
Self-bailing cockpit w/cockpit drains (4)

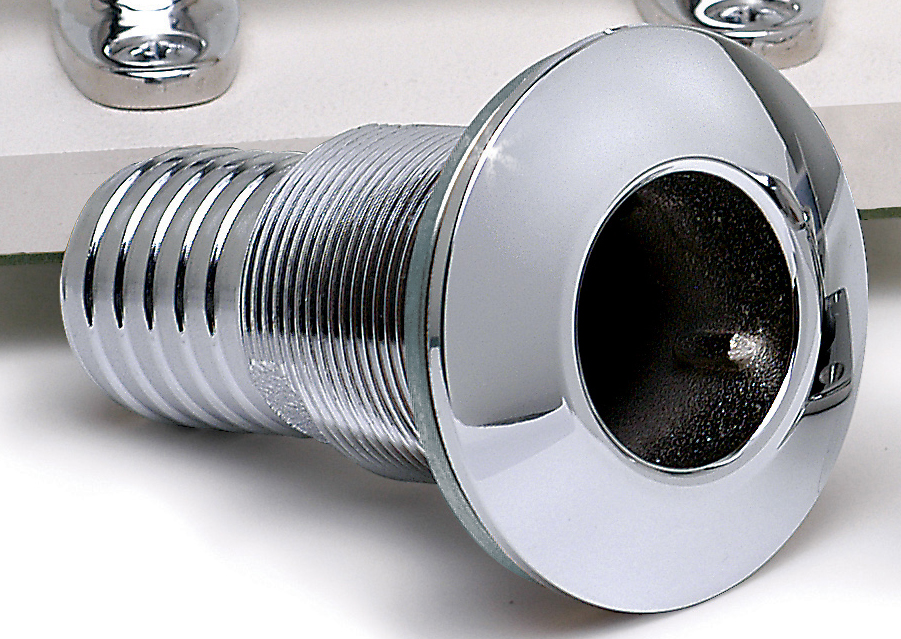

Stainless steel through-hull fittings
Cockpit & Deck
100% hand laid SeaV² hull & deck
Anchor windlass w/rode, line, and remote switches at helm & windlass
Batteries (4) w/battery select switches (one per engine) & charger system (1)
Casting platform insert w/cushion
Cleats - flush mount (pull up)
Cockpit bolsters
Cockpit side door - port w/boarding ladder
Cockpit freshwater shower (recessed)
Cockpit lights - blue LED
Cutting board
Deck hardware - 316 grade stainless steel through-bolted
Dockside power w/galvanic isolator
Drink holders - stainless steel (11)
Engine flush system w/hose attachment aft (one per engine)
Fish box - 180-qt. (170.3 l) port & starboard insulated fish box w/ob drain (2)
Fish box - 318-qt. (300.9 l) aft insulated fish box w/light & ob drain
Forward bolsters
Hydraulic trim tabs w/indicator & retractor
International lighting
Livewell - 32 gal. (121 l) aft raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)
Rod holders - bow (4), cockpit (4), transom (1)
Rod storage racks - horizontal (3)
Rubrail - high density PVC w/stainless steel insert
Seating - foldaway aft bench seat w/cushion
Seating - port & starboard bow seating w/forward facing foldaway bolstered backrest (2)
Stereo - Deluxe stereo system w/waterproof touch screen display, AM/FM tuner, Wi-Fi & Bluetooth® connectivity & helm subwoofer; speakers w/LED lights - bow (2), helm (2), T-top (2)
Stern eyes - 316 grade stainless steel

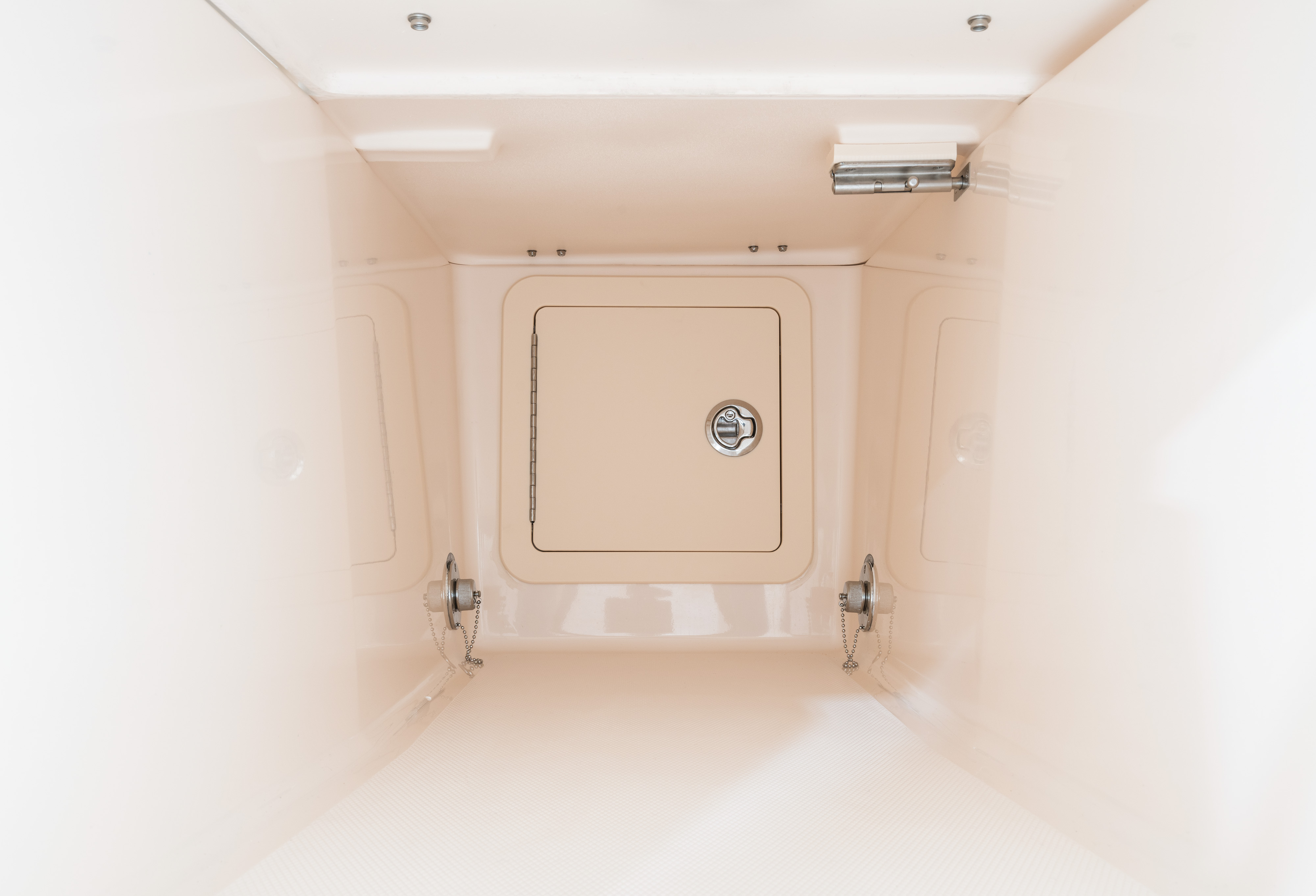

Storage - forward anchor locker w/rode storage
Storage - transom tackle storage compartment
Swim platforms - aft port & starboard extensions w/starboard ladder
Transom door - fiberglass
Washdown - freshwater (2)
Washdown - pressurized raw water (forward & aft) w/hose
Water tank - 30-gallon (113.6 l) freshwater
Console
Accessory outlet - 5V duplex USB port
Accessory outlet - 12V
Compass
Console grab rails
Console ventilator
Door - lockable acrylic console door
Drink holders - stainless steel (3)
Factory engine pre-rigging
Flush mount electronics area
Footrest - molded console footrest
Head - lockable console w/lighting, sink, bulk storage, VacuFlush® head w/freshwater supply, 10-gallon (38 l) holding tank, overboard discharge & deck pump out & composite cherry & holly sole
Rod storage - vertical (4)
Seating - molded forward console seat w/cushion
Steering - Helm Master® EX w/Full Maneuverability
Steering wheel - 316 grade stainless steel w/knob
T-top - fiberglass w/painted aluminum frame, radio box, storage net, tri-colored (red, blue, white) LED recessed lights (4), fore/aft spreader lights, rod holders (4), radar flat & outrigger plates
Window - tinted frameless glass
Windshield - laminated glass integrated w/T-top
Windshield wiper w/washer
Deluxe Lean Bar
Footrests - fold down (2)
Livewell - 38-gallon (144 l) insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)
Rigging station - freshwater sink w/faucet
Rod holders (4)
Seating - lean bar mounted Command Elite helm chairs (3) horizontally adjustable w/deluxe cushioning & flip-up bolsters
Storage - lockable storage drawers
Storage - lockable w/tackle trays
Storage - trash bin
Options
Bow thruster
Cockpit step - starboard
CE certification package (European Conformity)
Hull color - Celestial Blue, Coastal Fog, Ocean Mist, or Sea Glass gelcoat
Lighting - underwater blue LED (3)
Outrigger kit - 18-ft. (5.5 m) crank T-top mounted stainless steel outriggers w/carbon fiber poles
Ski pylon (in lieu of transom rod holder)
SureShade® electrically retractable cockpit shade with Sunbrella® canvas (oyster)
Table - fiberglass bow table

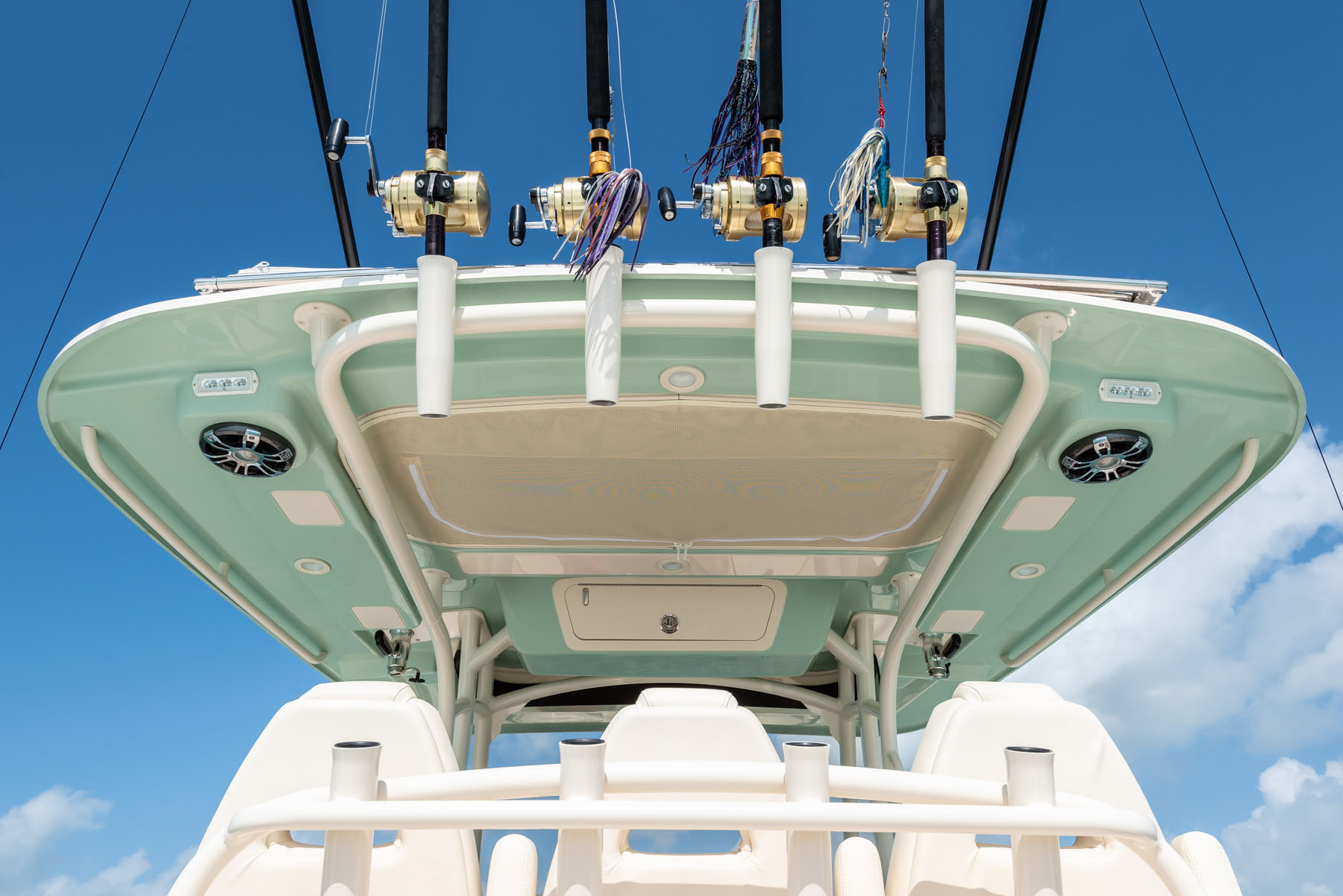

T-top color - underside of fiberglass T-top (requires matching gelcoat hull color option)
Canvas Options
Easy up bow shade (ivory mesh)
T-top side wing curtains (ivory)
Canyon 326 Performance Data
300 Yamaha Four-Stroke
Twin
Top Speed: 49.7 MPH @ 6000 RPM
Optimum Cruise: 30.2 MPH @ 3700 RPM
GPH at Optimum Cruise: 19.2
MPG at Optimum Cruise: 1.6
350 Yamaha Four-Stroke
Twin
Top Speed: 55.1 MPH @ 6000 RPM
Optimum Cruise: 30.2 MPH @ 3600 RPM
GPH at Optimum Cruise: 18.7
MPG at Optimum Cruise: 1.60
300 Yamaha Four-Stroke
Twin
Engine Size
4.2L
Test Date
11/30/2018
Prop Size
15 1/2 X 17 SWS II SDS
Weight as Tested
11442 lb. (including persons, fuel, water, gear, engines & accessories))
Hardtop
Yes
Bow Pulpit
No
Bottom Paint
No
Optimum Cruise
30.2 MPH @ 3700 RPM
RPM | MPH | GPH | MPG |
---|---|---|---|
1000 | 5.5 | 2.6 | 2.12 |
1500 | 8.0 | 4.3 | 1.86 |
2000 | 9.1 | 6.9 | 1.32 |
2500 | 13.8 | 10.0 | 1.38 |
3000 | 20.0 | 13.1 | 1.53 |
3500 | 28.1 | 17.5 | 1.61 |
3700 | 30.2 | 19.2 | 1.6 |
4000 | 33.3 | 22.4 | 1.49 |
4500 | 37.7 | 28.6 | 1.32 |
5000 | 42.0 | 36.7 | 1.14 |
5500 | 46.2 | 47.0 | 0.98 |
6000 | 49.7 | 53.1 | 0.94 |
350 Yamaha Four-Stroke
Twin
Engine Size
4.3L
Test Date
3/11/24
Prop Size
15 1/4 X 19 SWS II SDS
Weight as Tested
11759 lb. (including persons, fuel, water, gear, engines & accessories))
Hardtop
Yes
Bow Pulpit
No
Bottom Paint
No
Optimum Cruise
30.2 MPH @ 3600 RPM
RPM | MPH | GPH | MPG |
---|---|---|---|
1000 | 6.0 | 2.5 | 2.40 |
1500 | 8.6 | 4.1 | 2.10 |
2000 | 10.1 | 6.8 | 1.49 |
2500 | 13.4 | 10.9 | 1.23 |
3000 | 17.4 | 14.4 | 1.21 |
3500 | 29.4 | 17.9 | 1.64 |
3600 | 30.2 | 18.7 | 1.60 |
4000 | 35.1 | 22.7 | 1.55 |
4500 | 40.1 | 28.0 | 1.43 |
5000 | 45.0 | 36.4 | 1.24 |
5500 | 49.8 | 47.1 | 1.06 |
6000 | 55.1 | 63.6 | 0.87 |
300 Yamaha Four-Stroke
Twin
Engine Size
4.2L
Test Date
11/30/2018
Prop Size
15 1/2 X 17 SWS II SDS
Weight as Tested
11442 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop
Yes
Bow Pulpit
No
Bottom Paint
No
Optimum Cruise
30.2 MPH @ 3700 RPM
RPM | MPH | GPH | MPG |
---|---|---|---|
1000 | 5.5 | 2.6 | 2.12 |
1500 | 8.0 | 4.3 | 1.86 |
2000 | 9.1 | 6.9 | 1.32 |
2500 | 13.8 | 10.0 | 1.38 |
3000 | 20.0 | 13.1 | 1.53 |
3500 | 28.1 | 17.5 | 1.61 |
3700 | 30.2 | 19.2 | 1.6 |
4000 | 33.3 | 22.4 | 1.49 |
4500 | 37.7 | 28.6 | 1.32 |
5000 | 42.0 | 36.7 | 1.14 |
5500 | 46.2 | 47.0 | 0.98 |
6000 | 49.7 | 53.1 | 0.94 |
350 Yamaha Four-Stroke
Twin
Engine Size
4.3L
Test Date
3/11/24
Prop Size
15 1/4 X 19 SWS II SDS
Weight as Tested
11759 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop
Yes
Bow Pulpit
No
Bottom Paint
No
Optimum Cruise
30.2 MPH @ 3600 RPM
RPM | MPH | GPH | MPG |
---|---|---|---|
1000 | 6.0 | 2.5 | 2.40 |
1500 | 8.6 | 4.1 | 2.10 |
2000 | 10.1 | 6.8 | 1.49 |
2500 | 13.4 | 10.9 | 1.23 |
3000 | 17.4 | 14.4 | 1.21 |
3500 | 29.4 | 17.9 | 1.64 |
3600 | 30.2 | 18.7 | 1.60 |
4000 | 35.1 | 22.7 | 1.55 |
4500 | 40.1 | 28.0 | 1.43 |
5000 | 45.0 | 36.4 | 1.24 |
5500 | 49.8 | 47.1 | 1.06 |
6000 | 55.1 | 63.6 | 0.87 |
