Fisherman 180 Main Specifications
Beam Amidships
7'5" (2.26 m)
Center Line Length w/o Engines
17'10" (5.44 m)
Bridge Clearance
5'7" (1.70 m)
Cockpit Depth
22" (0.56 m)
Hull Draft
15" (0.38 m)
Transom Deadrise
19 degrees (SeaV2® progression)
Maximum HP
150 (112 kW)
Fuel Capacity - Standard
54 gal. (204 l)
Passenger Capacity
7
Weight w/o Engines
2150 lb. (975 kg)
Fisherman 180 Features & Options
Select camera icons where available to view feature photos
Denotes feature as trademarked, exclusive, patented, or patent pending
Safety
Automatic bilge pump (1100 GPH) (4164 LPH)
Bow grab rail - low profile 316 grade stainless steel

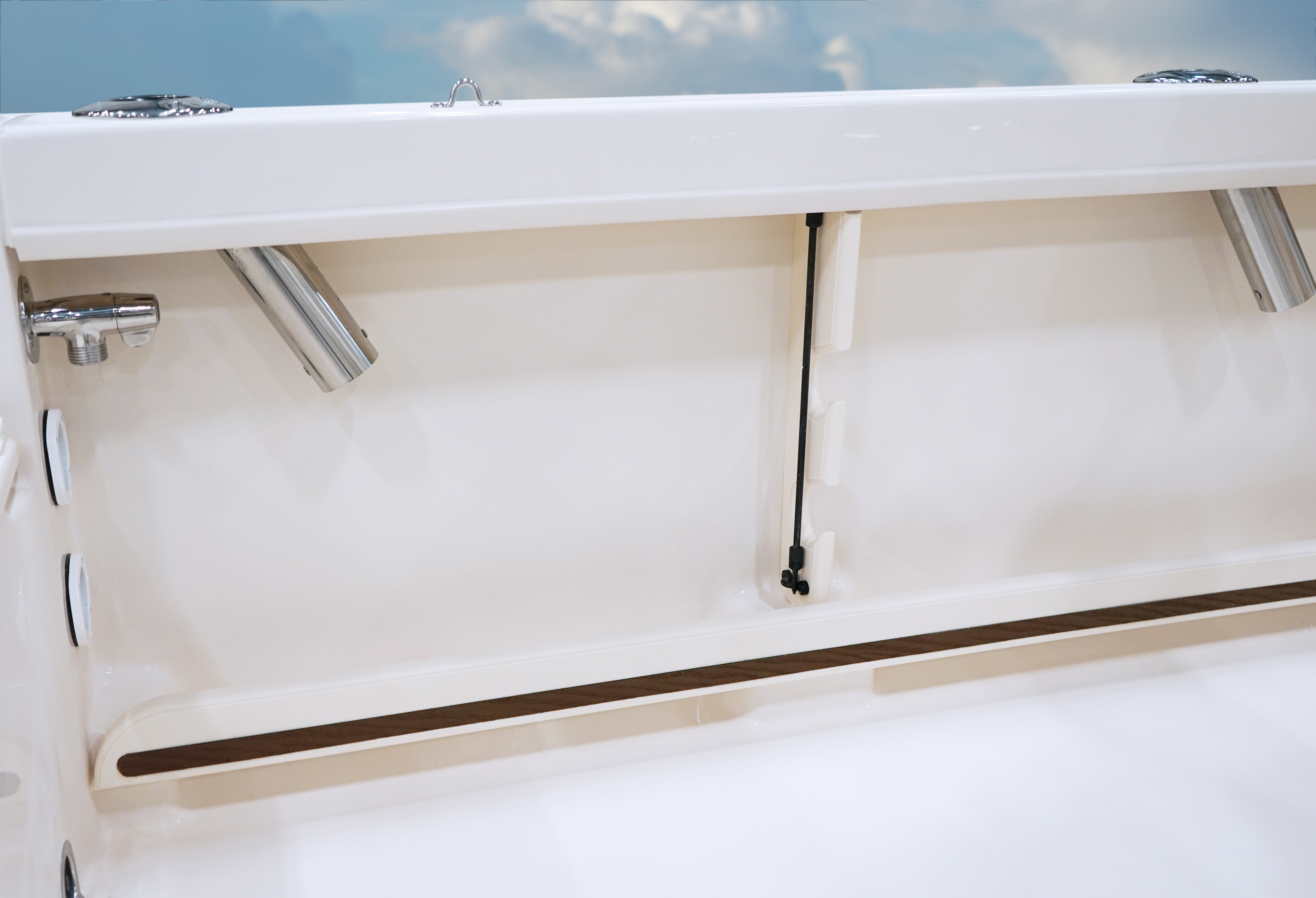

Cockpit toe rails
Composite stringer system & transom - water impervious
Fire extinguisher holder
Level flotation
Nonskid fiberglass liner
Self-bailing cockpit w/cockpit drains (2)
Stainless steel through-hull fittings
Cockpit & Deck
100% hand laid SeaV² hull & deck
Batteries (2) w/battery select switch (1)
Casting platform (raised)
Cleats
Deck hardware - 316 grade stainless steel through-bolted
Drink holders - stainless steel (2)
Engine flush system w/hose attachment aft
Factory engine pre-rigging
Fish box - 89-qt. (84.2 l) bow insulated box w/ob drain
Hydraulic trim tabs w/indicator & retractor
International lighting
Rod holders - cockpit (4)
Rod storage racks - horizontal (4)
Rubrail - high density PVC w/stainless steel insert
Seating - aft seats (2)
Seating - bench seat w/reversible back
Seating - forward platform cushions
Stern eyes - 316 grade stainless steel
Storage - aft rigging compartments (2)
Storage - forward anchor locker w/rode storage
Swim platform - aft port side w/ladder
Console
Accessory outlet - 12V
Compass
Console grab rail
Drink holders - stainless steel (2)
Flush mount electronics area
Footrest - molded console footrest
Livewell - 11-gallon (43 l) insulated raw water livewell w/light & ob drain (800 GPH pump) (3028 LPH)
Rod storage - vertical (4)
Seating - forward console seat
Steering - hydraulic tilt
Steering wheel - 316 grade stainless steel w/knob
Storage - lockable console storage
Windshield - scratch resistant acrylic w/handrail
Options
CE certification package (European Conformity)
Cockpit freshwater shower (recessed) w/10-gallon (38 l) water tank
Hull color - Celestial Blue, Coastal Fog, Ocean Mist, or Sea Glass gelcoat
Ski pylon
Washdown - pressurized raw water w/hose
Canvas Options
Bimini top w/boot (black)
Fisherman 180 Performance Data
150 Yamaha Four-Stroke
Single
Top Speed: 46.3 MPH @ 5900 RPM
Optimum Cruise: 27.8 MPH @ 3800 RPM
GPH at Optimum Cruise: 5.9
MPG at Optimum Cruise: 4.70
CLASSIC WHITE
Standard
150 Yamaha Four-Stroke
Single
Engine Size
2.7L
Test Date
8/9/2013
Prop Size
14 1/4 X 18 Reliance SDS
Weight as Tested
3429 lb. (including persons, fuel, water, gear, engines & accessories))
Hardtop
No
Bow Pulpit
No
Bottom Paint
No
Optimum Cruise
27.8 MPH @ 3800 RPM
| RPM | MPH | GPH | MPG |
|---|---|---|---|
| 1000 | 4.4 | 0.8 | 5.80 |
| 1500 | 6.0 | 1.2 | 4.96 |
| 2000 | 7.2 | 1.9 | 3.76 |
| 2500 | 8.0 | 3.6 | 2.25 |
| 3000 | 17.2 | 4.1 | 4.18 |
| 3500 | 24.4 | 5.3 | 4.65 |
| 3800 | 27.8 | 5.9 | 4.70 |
| 4000 | 29.5 | 6.5 | 4.57 |
| 4500 | 34.4 | 8.5 | 4.07 |
| 5000 | 39.4 | 10.6 | 3.72 |
| 5500 | 43.5 | 14.0 | 3.11 |
| 5900 | 46.3 | 15.5 | 2.99 |
150 Yamaha Four-Stroke
Single
Engine Size
2.7L
Test Date
8/9/2013
Prop Size
14 1/4 X 18 Reliance SDS
Weight as Tested
3429 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop
No
Bow Pulpit
No
Bottom Paint
No
Optimum Cruise
27.8 MPH @ 3800 RPM
| RPM | MPH | GPH | MPG |
|---|---|---|---|
| 1000 | 4.4 | 0.8 | 5.80 |
| 1500 | 6.0 | 1.2 | 4.96 |
| 2000 | 7.2 | 1.9 | 3.76 |
| 2500 | 8.0 | 3.6 | 2.25 |
| 3000 | 17.2 | 4.1 | 4.18 |
| 3500 | 24.4 | 5.3 | 4.65 |
| 3800 | 27.8 | 5.9 | 4.70 |
| 4000 | 29.5 | 6.5 | 4.57 |
| 4500 | 34.4 | 8.5 | 4.07 |
| 5000 | 39.4 | 10.6 | 3.72 |
| 5500 | 43.5 | 14.0 | 3.11 |
| 5900 | 46.3 | 15.5 | 2.99 |

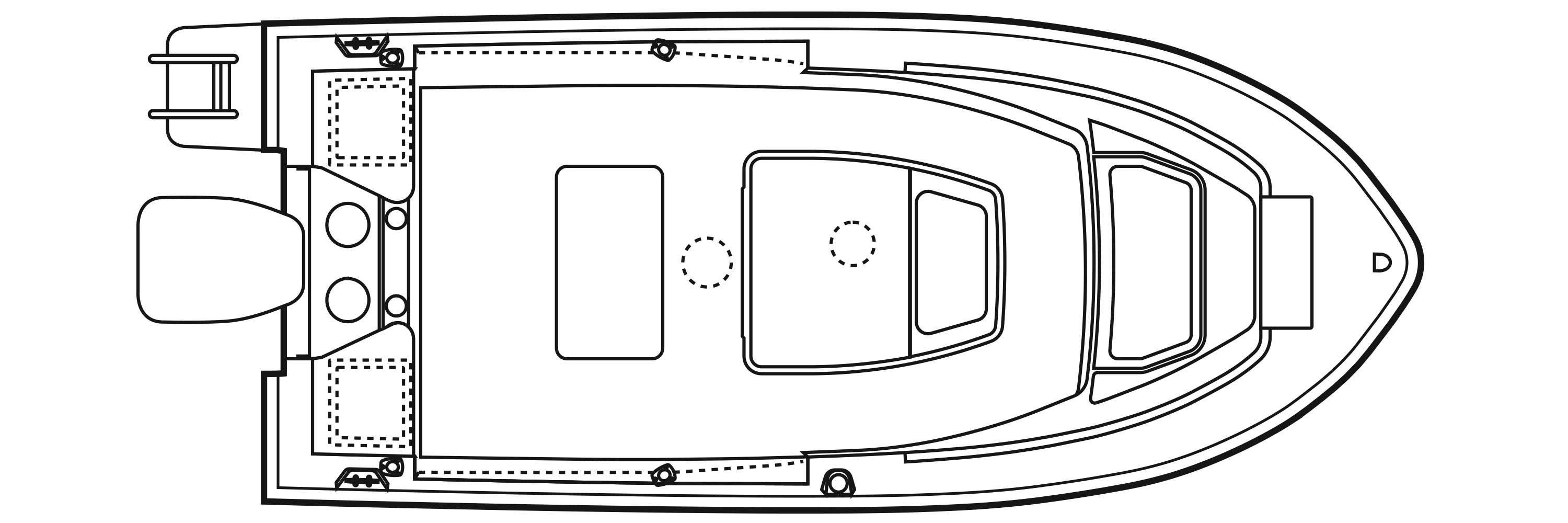

Fisherman 180 Overhead
