Use your dockside power safely and efficiently.
Categories
  • Boat Handling & Seamanship
at 00:00

dockside power

The dockside power feature allows the use of alternating current (AC) electrical equipment aboard the boat. This equipment includes any permanently installed appliances such as a battery charger or water heater, or it may be a household item plugged into a receptacle. The dockside power is utilized by connecting the shore cord supplied with the boat to an appropriate external power source and to the boat's AC inlet that is wired to the AC panel. The AC panel allows for distribution to the various appliances and outlets. See your owner’s manual for wiring diagrams and specifics as well as all 120V outlet locations aboard your Grady-White. An optional international AC (220V 50Hz) factory conversion is available; ask your dealer about this option.

THE MOST IMPORTANT SAFETY RULE IS: Always disconnect the dockside power cable shore cord if leaving the boat unattended for an extended period of time.

Connecting the dockside power:

  1. Verify that the external power source is a 3-wire (or 4-wire for the new Express 330) grounded system with amperage and voltage ratings compatible with the boat's AC system ratings.
  2. Be sure there is sufficient cable length to allow for normal movement between the boat and the dock.
  3. Turn all AC panel switches (including the appropriate distribution switch) to the "off" position. Turn the circuit breaker under the starboard gunwale to "off." Turn the circuit breaker at the dock outlet to "off."
  4. Connect the dockside power cable at the boat inlet first.
  5. Connect the dockside power cable at the dock outlet and turn the dock outlet circuit breaker to "on."
  6. Turn the circuit breaker under the starboard gunwale to the "on" position. (Test the circuit breaker monthly by pressing the test button and then resetting.)
  7. Turn the shore circuit breaker on the AC panel to the "on" position.

Disonnecting the dockside power:

  1. Switch off all circuit breakers at the boat's AC panel (including the appropriate distribution switch).
  2. Switch off the circuit breaker underneath the starboard gunwale.
  3. Switch off the circuit breaker at the dock outlet.
  4. Disconnect the dockside power cable at the dock outlet first.
  5. Disconnect the dockside power cable at the boat inlet.

Please note:

  1. If the reverse polarity indicator on the AC panel is activated, immediately disconnect the dockside power cable and have a qualified electrician correct the fault.

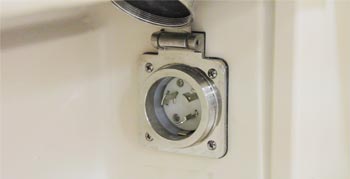

  2. The retaining ring on the dockside power cable plug should be screwed on the threaded portion of the boat inlet to prevent the cable from working loose or becoming detached when in use. If your dockside power cable is missing this ring, or showing signs of wear or burn marks around the terminals where it plugs into the inlet, it should be replaced immediately. A loose fitting plug will create electrical resistance that can lead to a fire hazard.
